中隔柱 / 显卡支撑柱
- 中隔柱专为 Meshroom 和 Meshlicious 机箱而设计，连接到顶部框架和中板，提供额外的间隙槽，允许 3 或 4 个插槽的 GPU 配置。
- 用于 Meshroom 或 Meshlicious 机箱的显卡支撑柱。
Identify the Parts
Motherboard Tray Spacer: No mounting holes; adjusts vertical clearance for the motherboard/GPU

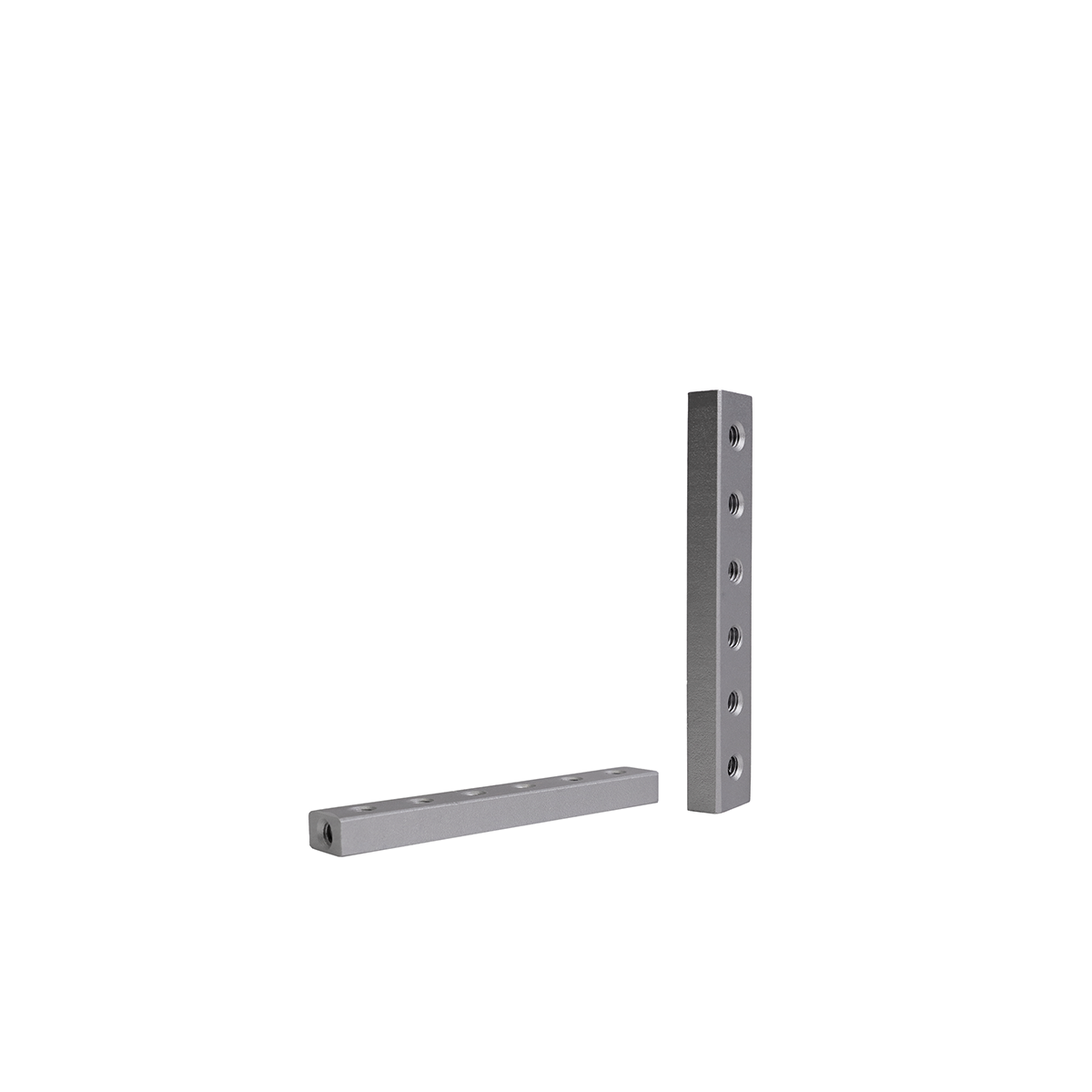

GPU Mounting Strut: Aluminum post with through-holes; secures your graphics card to the chassis.

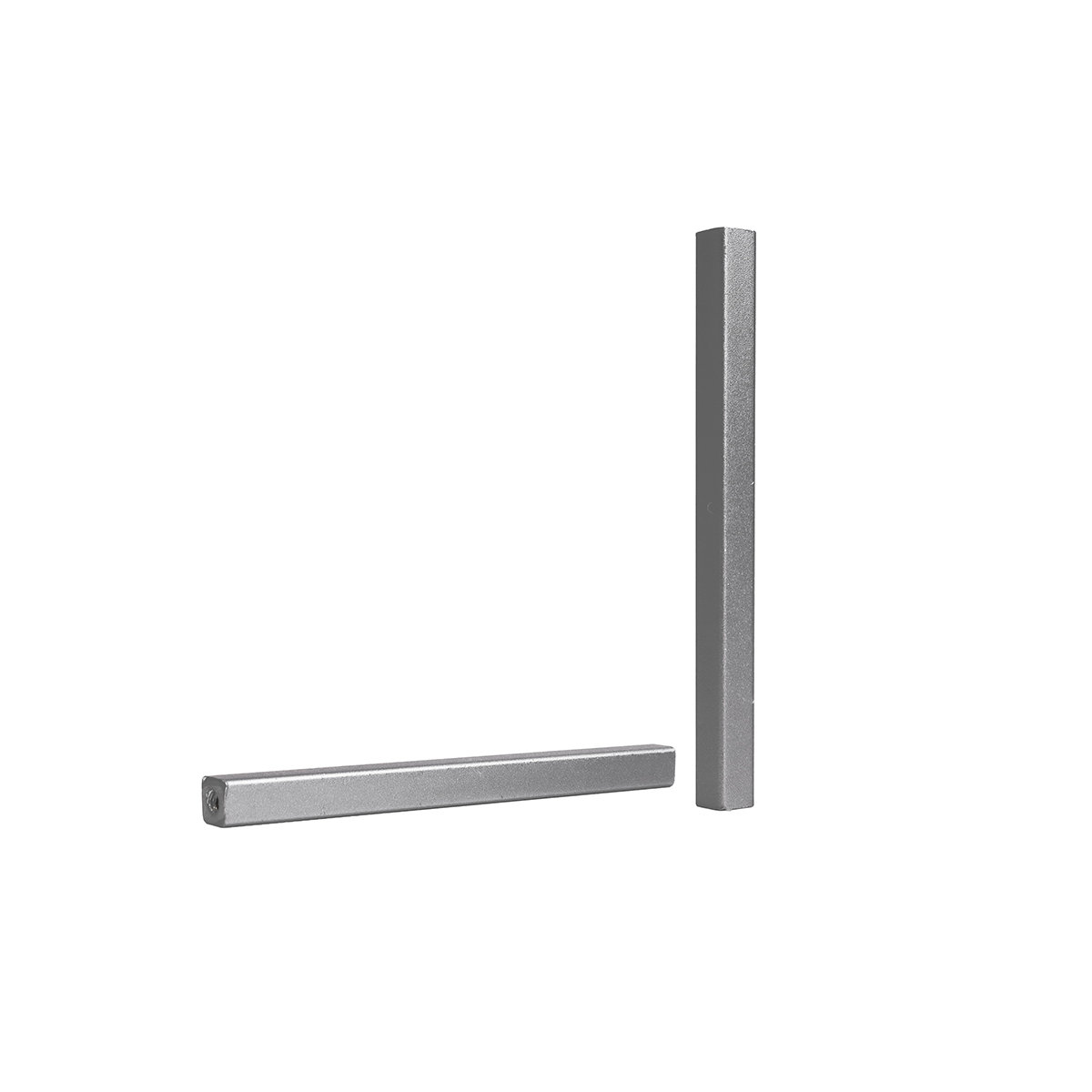

Default Motherboard Tray Spacer (87 mm)
The factory-installed spacer on the motherboard tray is 87 mm high (fits standard 3-slot GPU widths).

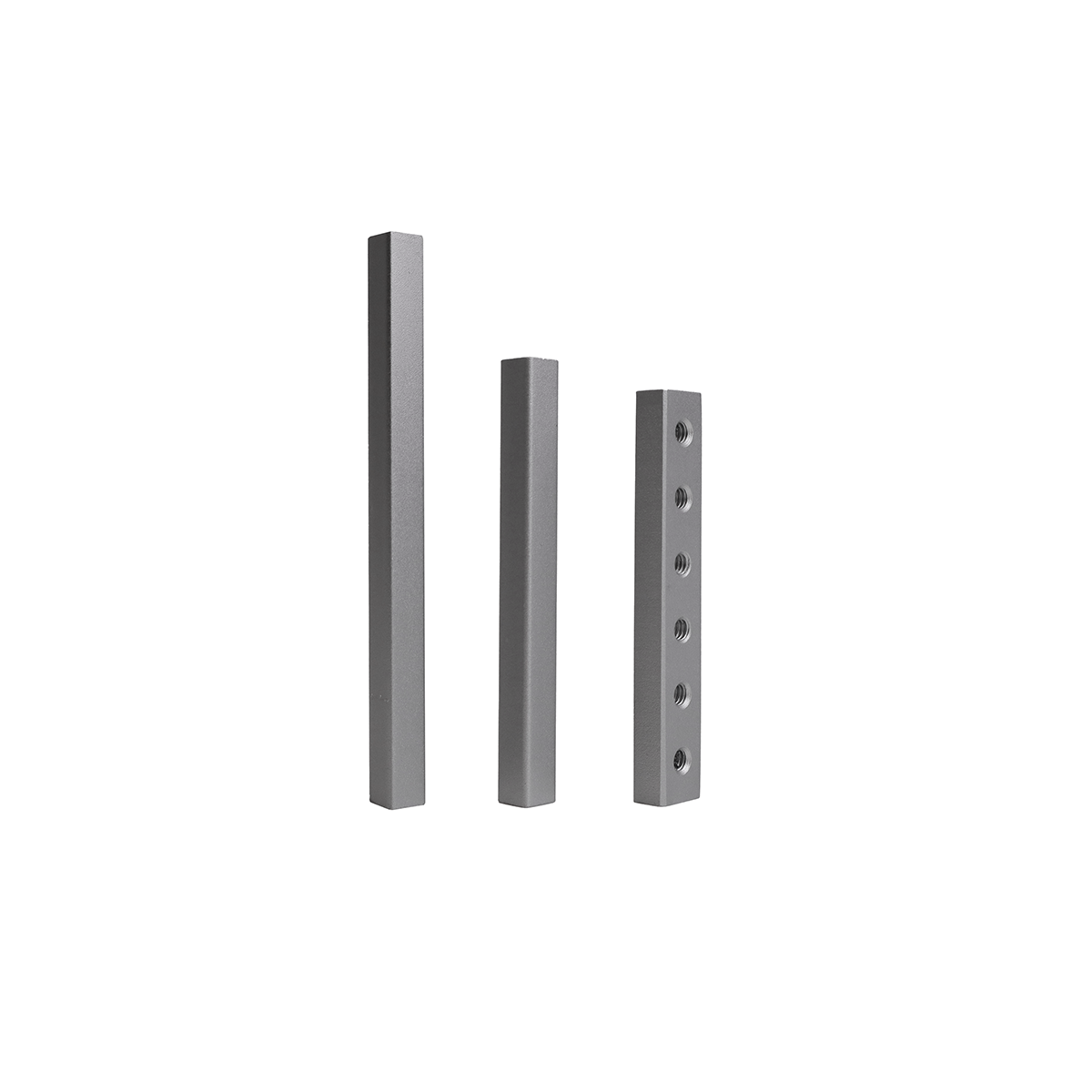

Default GPU Mounting Strut (75 mm)
The chassis comes pre-fitted with a 75 mm PCI-Mount that supports most graphics cards.

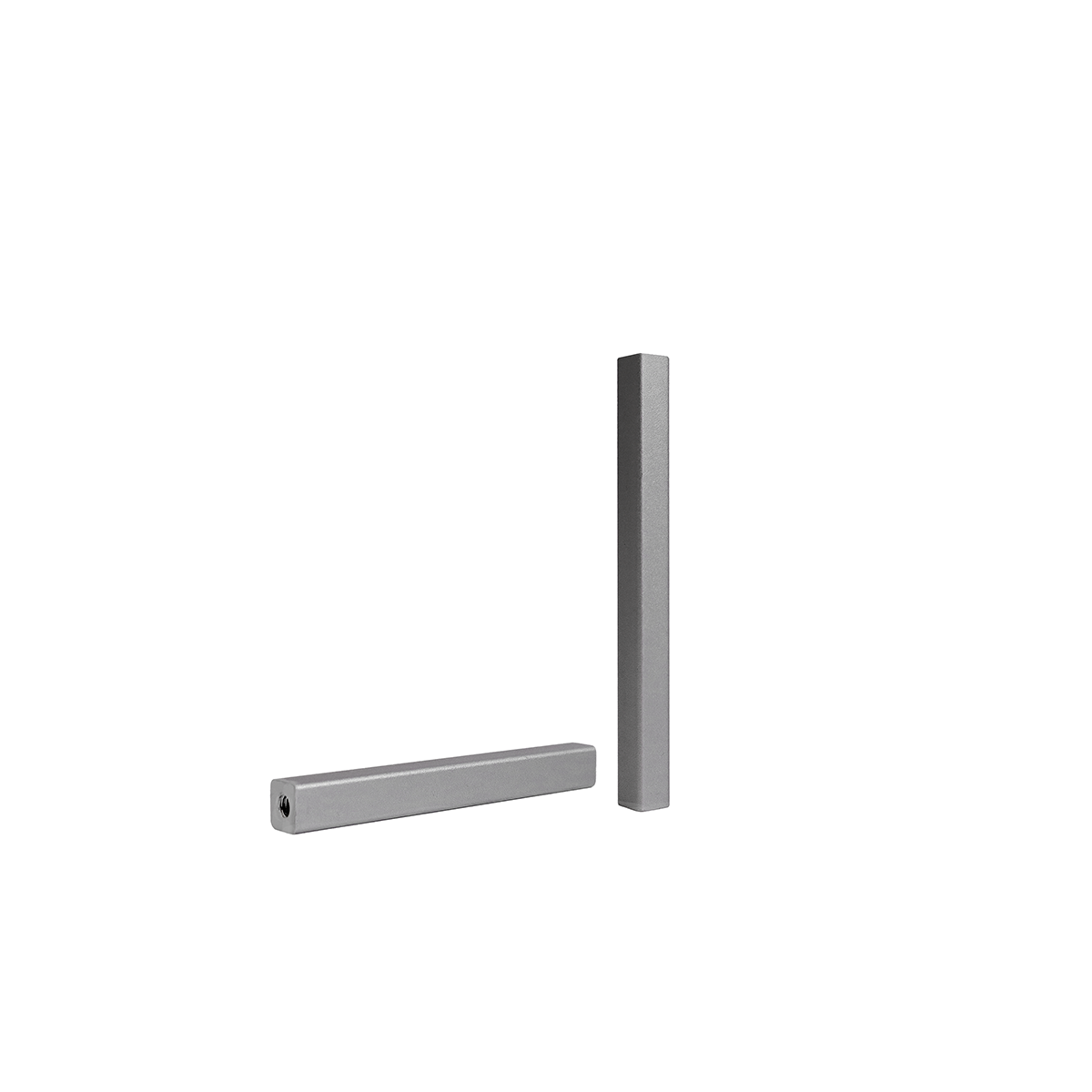

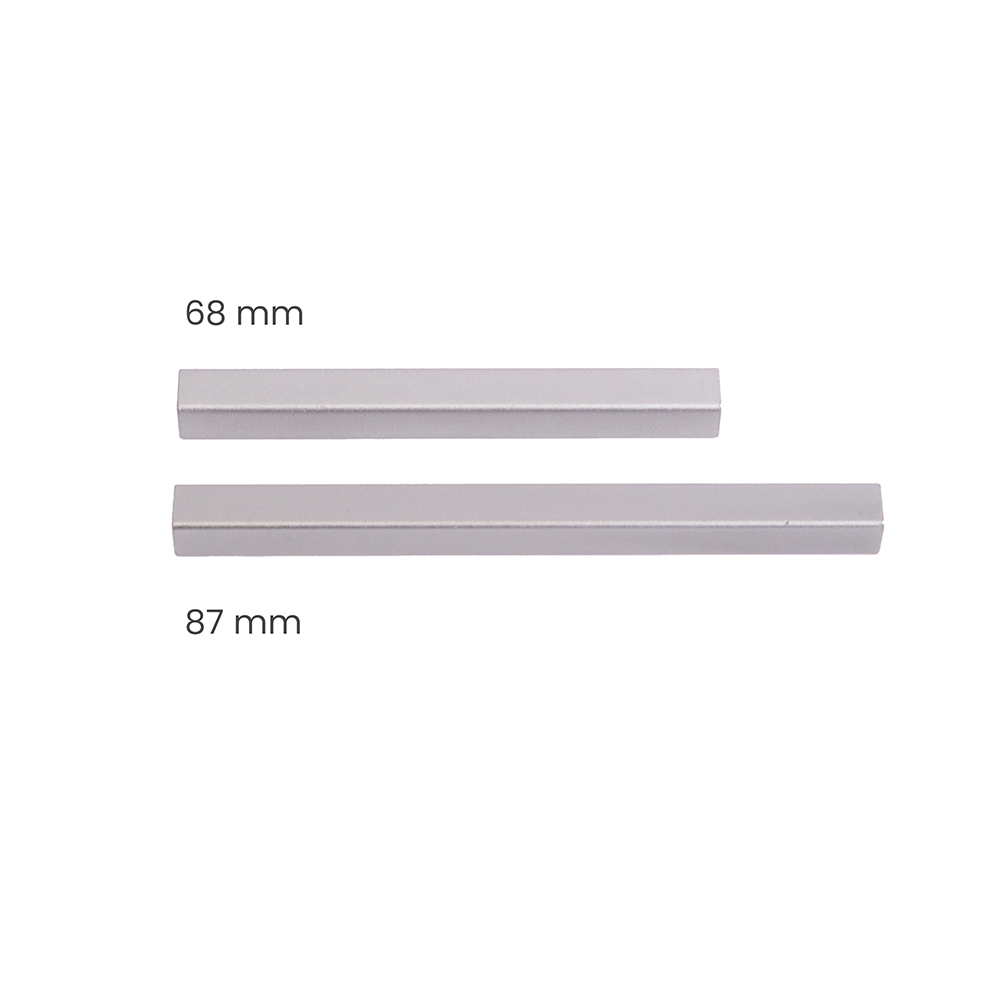

4-Slot Motherboard Tray Spacer
To accommodate a four-slot GPU or the alternate tray position, swap the 87 mm spacer for the 68 mm spacer included in your accessory kit.
Optional Short GPU Mounting Strut (60 mm)
- If your GPU’s DP/HDMI ports are too close to the rear bracket and interfere with the standard mount, replace the 75 mm strut with the 60 mm version.
- Because 60 mm strut is used infrequently, it is available separately through our official website accessories store to prevent unnecessary waste.
Compatibility Note: All Meshroom S and Meshlicious series models share the same spacer and strut system; only the accessory kit contents vary by chassis model.
