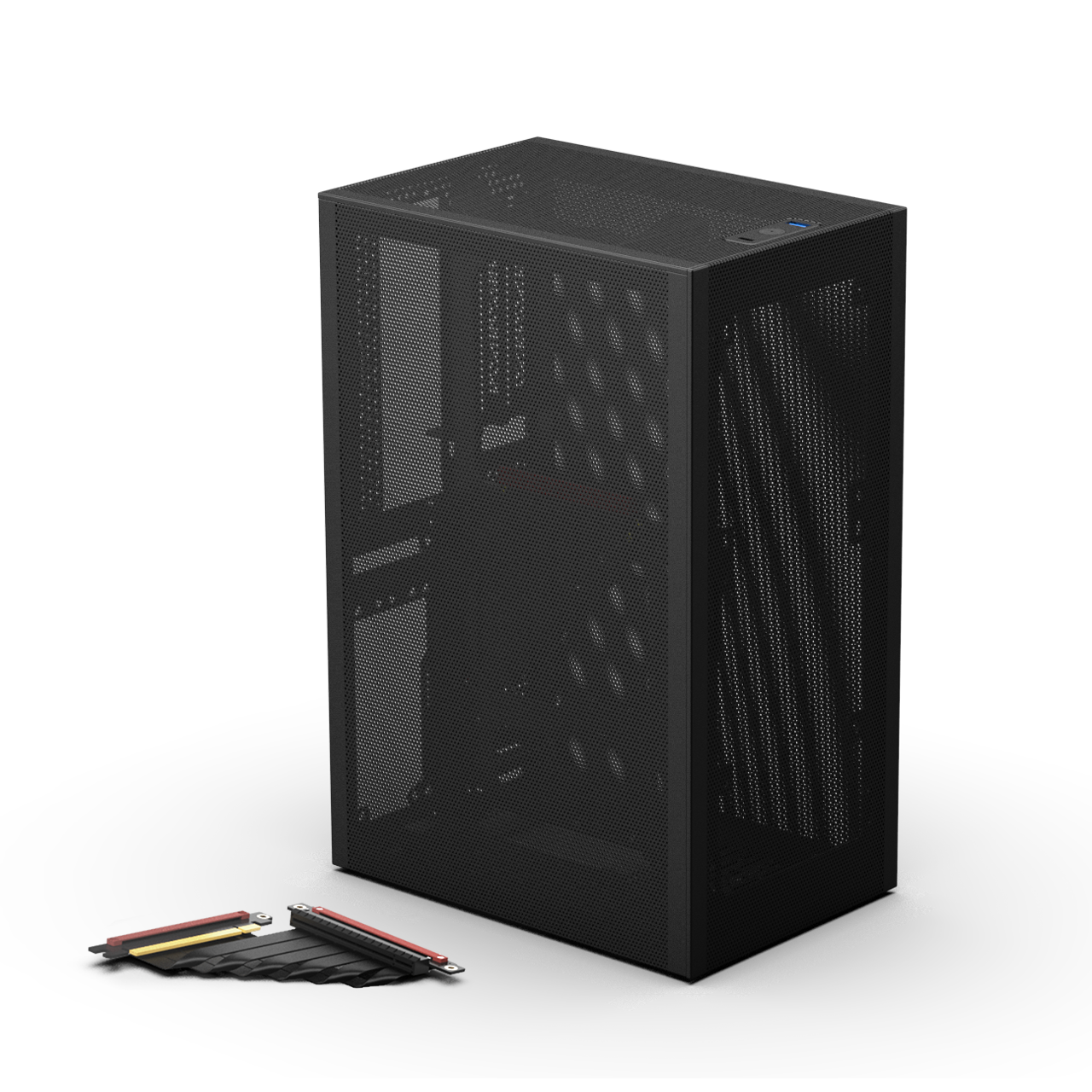

Meshlicious 美味網版

促销价格$119.99 USD

颜色:
类别: 全網版 PCI 3.0

类别

状态: 全新

状态

网状面板提升了空气流通性,提供更好的散热效果。

优良通风

支持大显卡

支持最新高功率需求的显卡,提供4个插槽空间,为未来做好准备。

支持280mm冷排

支持多种冷排,最大支持280mm,适用于小型机箱

精良设计、保持凉爽

高气流、小型外壳设计,旨在保持您的高端组件清凉

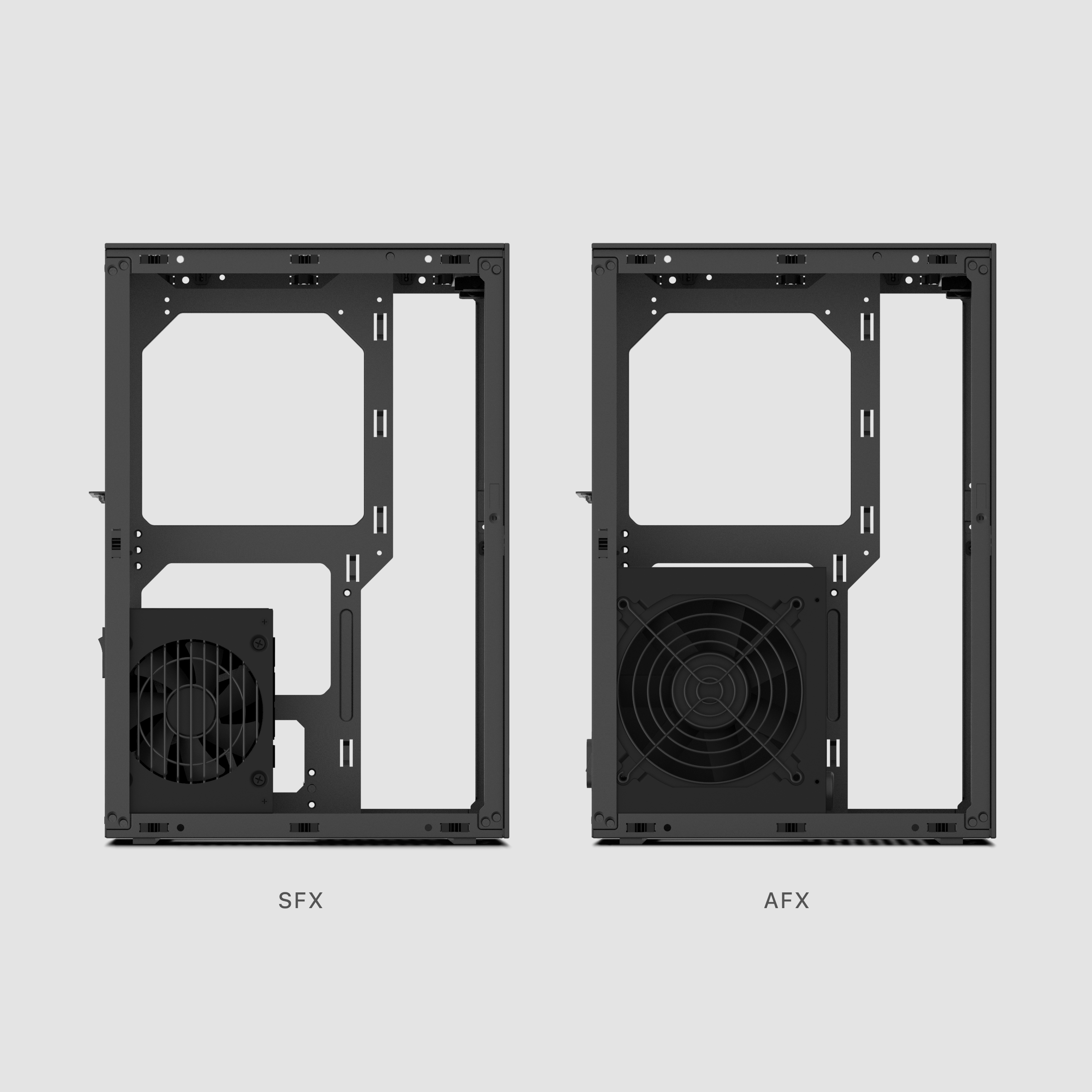

支持ATX电源

兼容ATX和SFX电源,支持高功率供应,适用于紧凑型机箱。

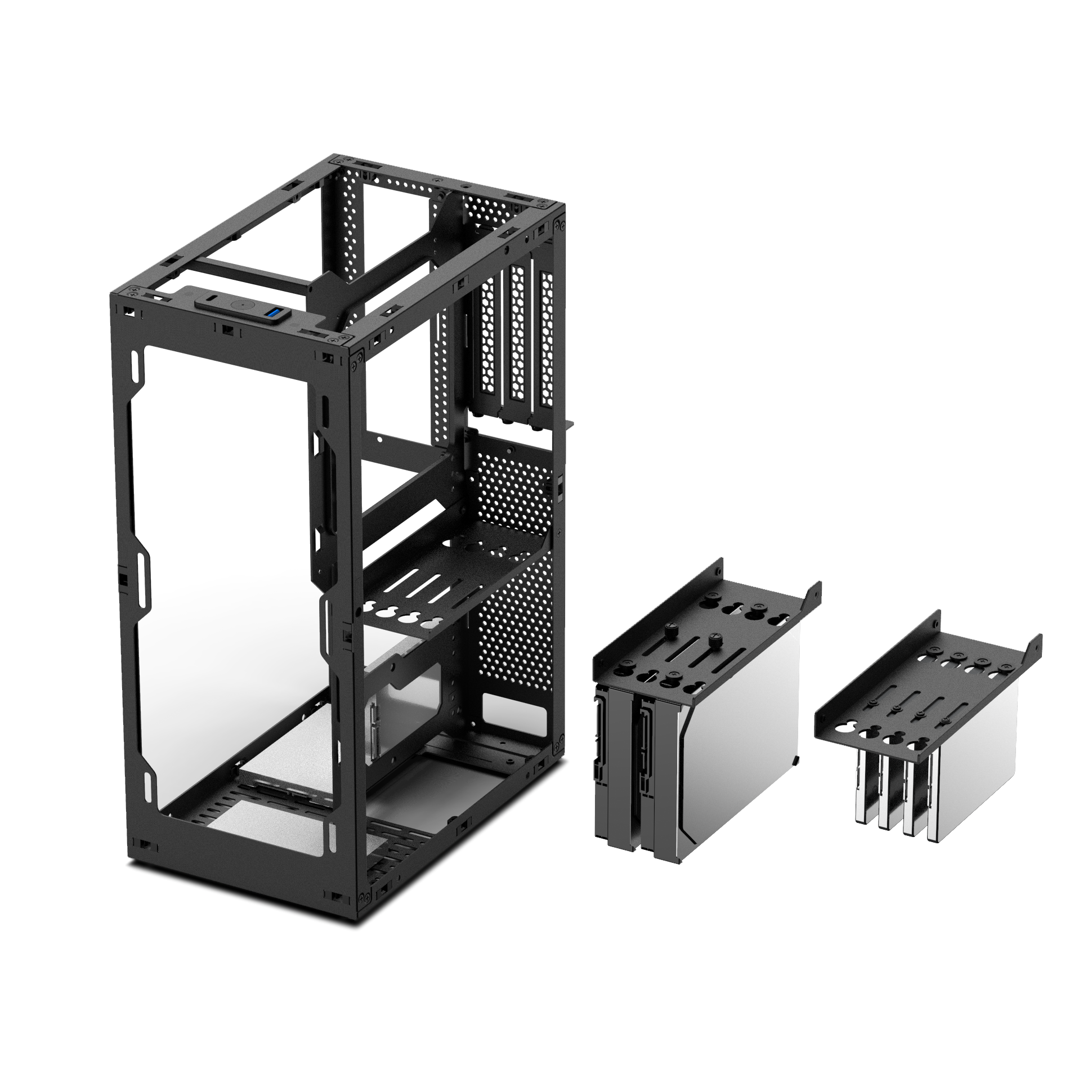

支持最多 2 个 HDD 和 4 个 SSD 硬盘。

支持最多 2 个 HDD 和 4 个 SSD 硬盘。

通风性能

Expansion slots

Full Length GPU : Up to 4 slot; Small Form Factor GPU : 3 slot

Front fan

2x 120 mm or 2x 140 mm

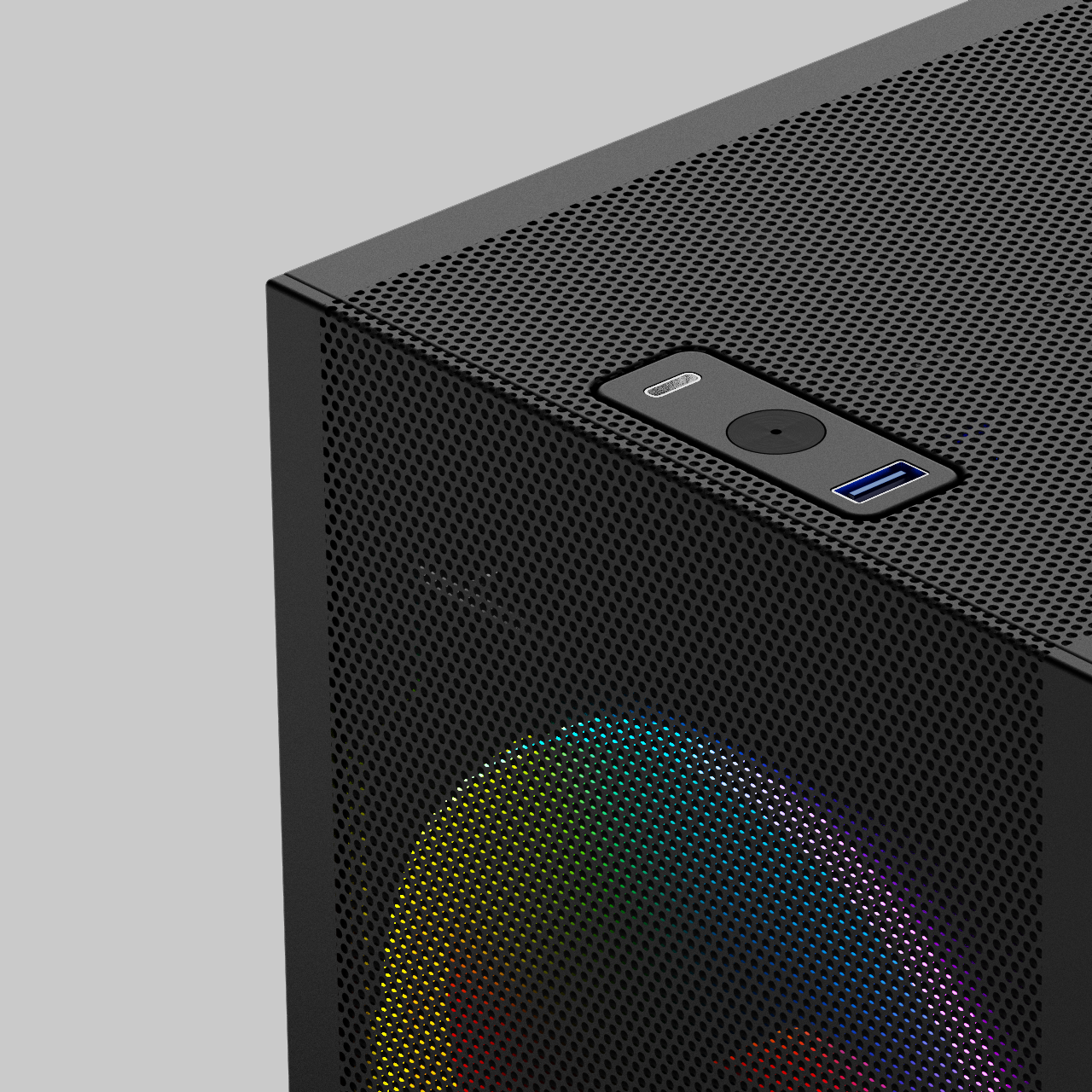

Front ports

1x USB 3.0; 1x Type-C 3.1 Gen 2; Power LED

3.5” drive support

Up to 2 x 3.5” HDD (with Small Form Factor GPU)

2.5” drive support

2 x 2.5” SSD (with full length GPU & ATX PSU) / 3 x 2.5” SSD (with full length GPU & SFX PSU) / 7 x 2.5” SSD (with SFF GPU & SFX PSU)

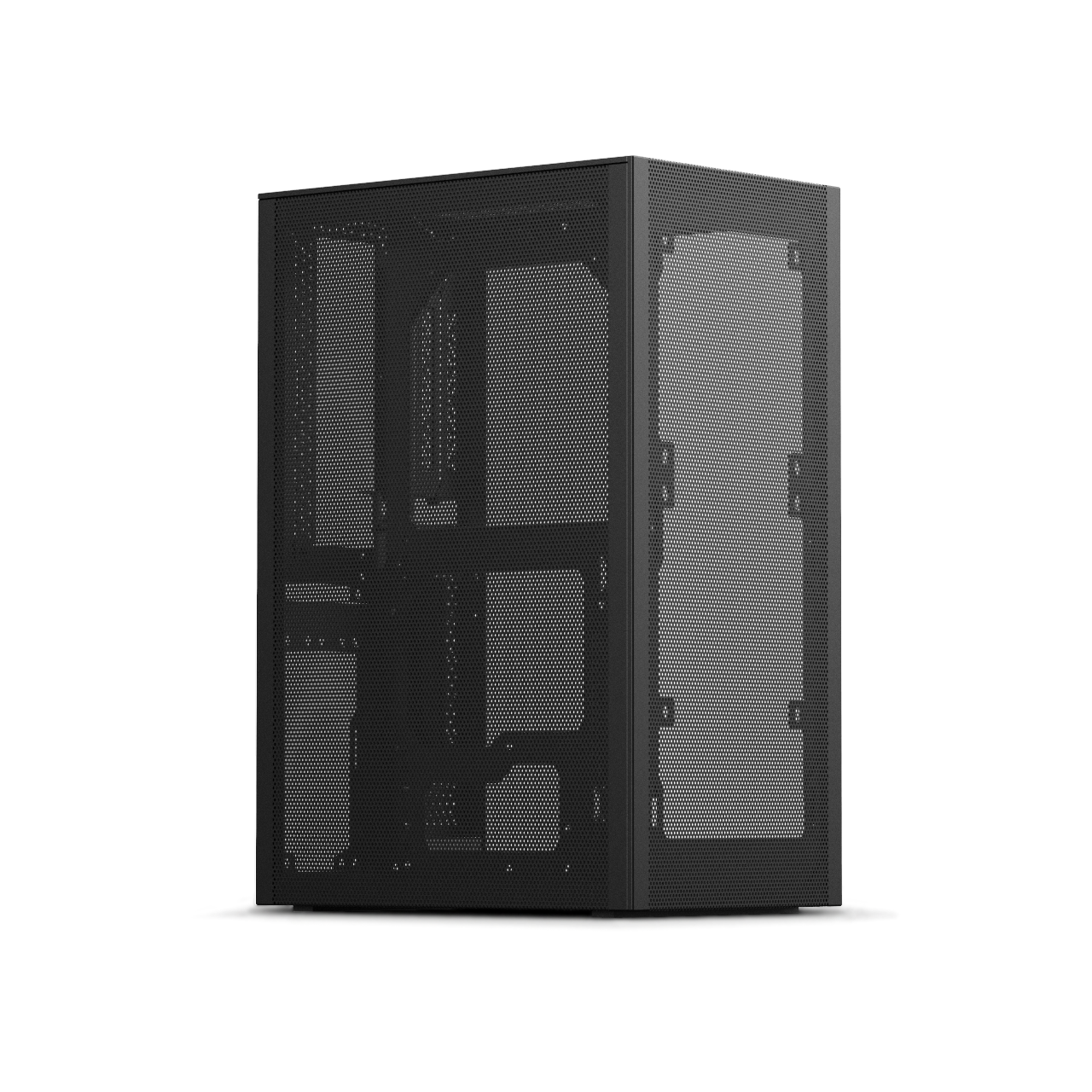

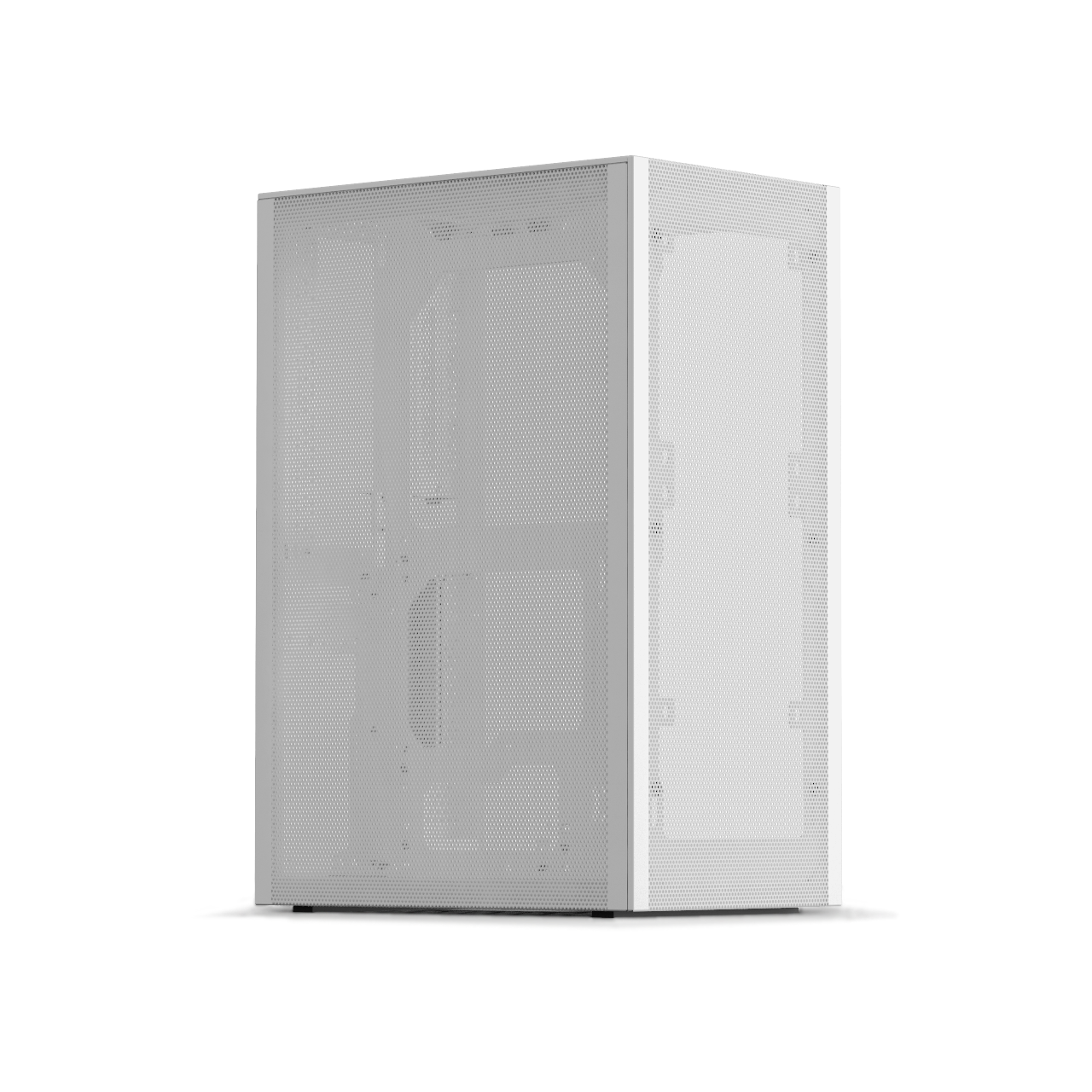

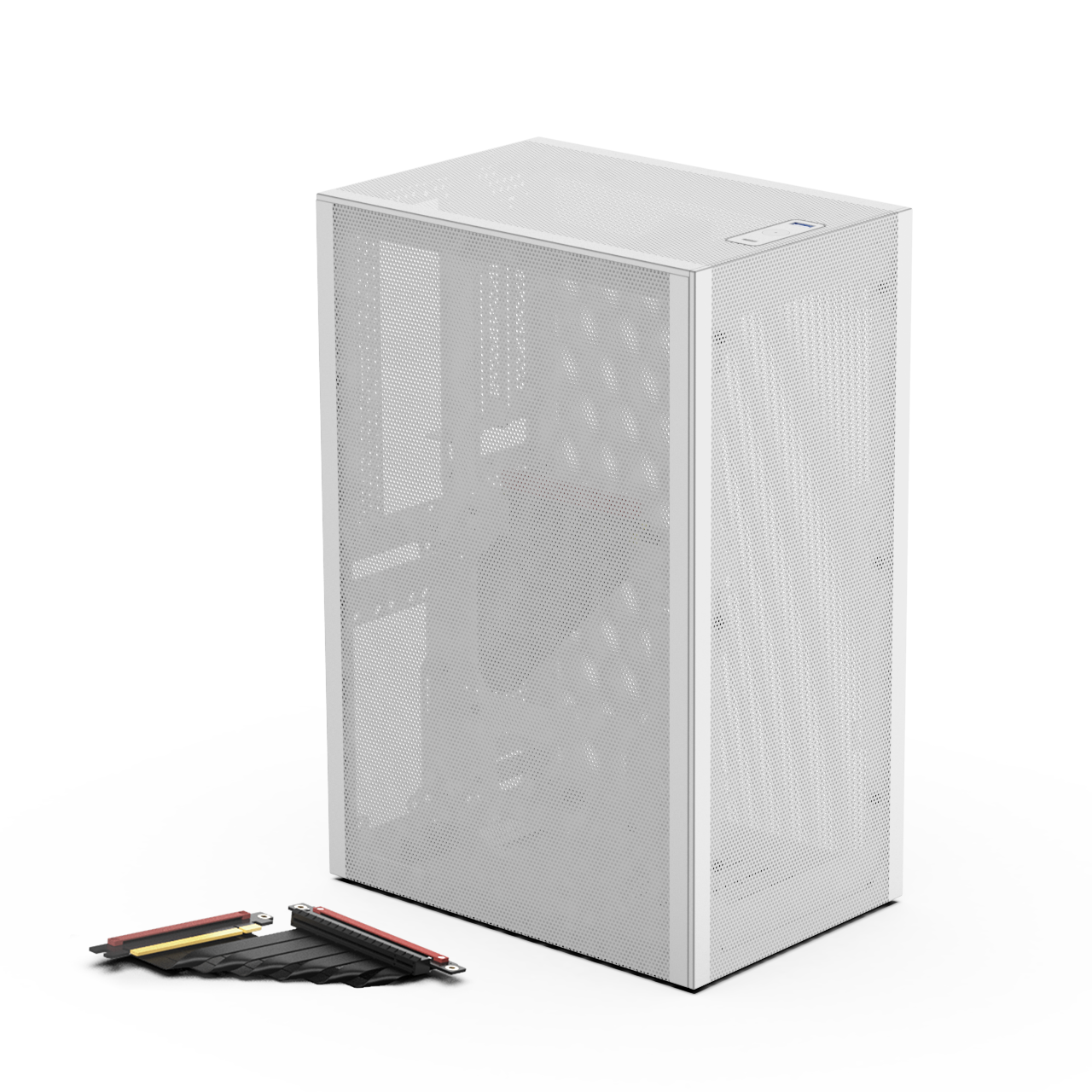

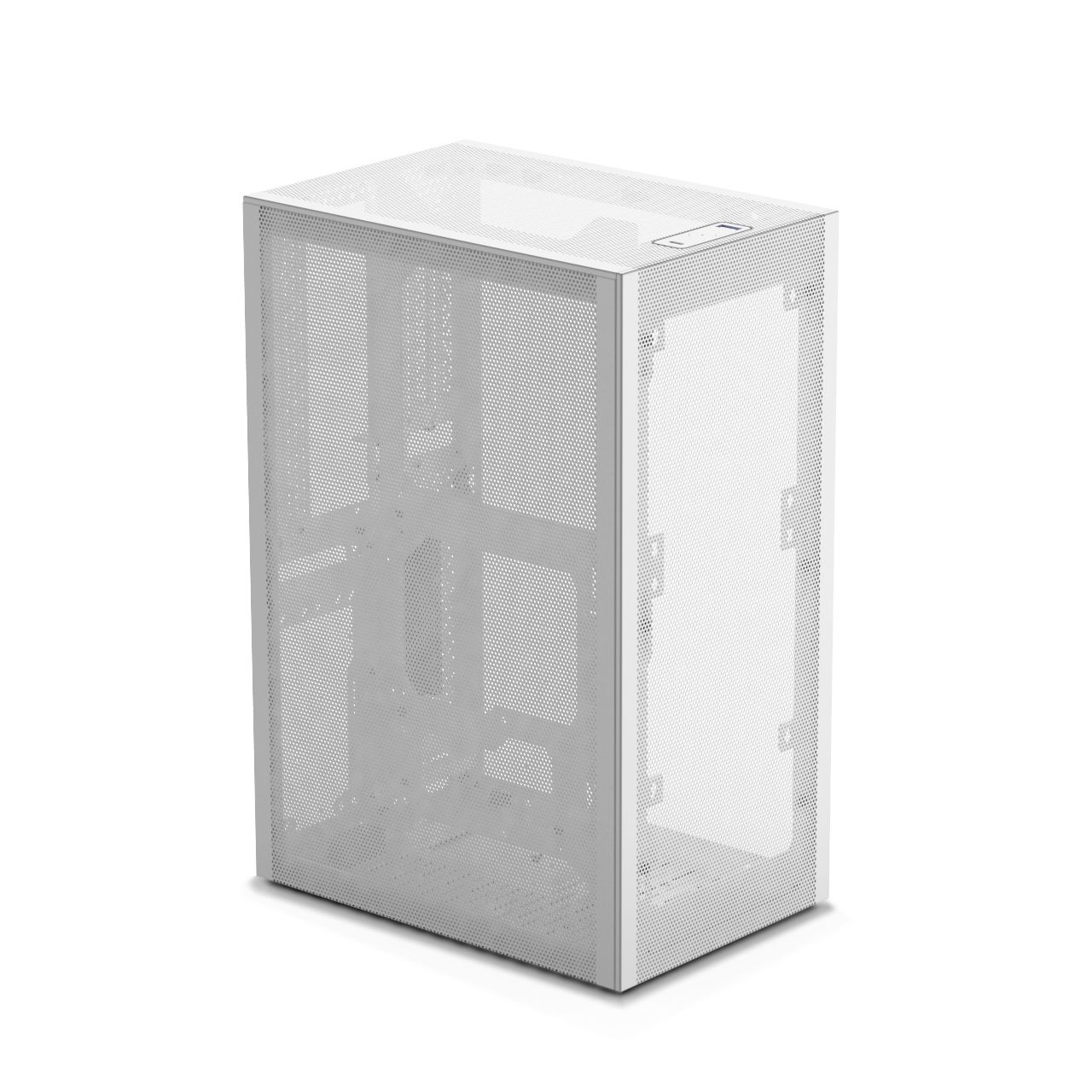

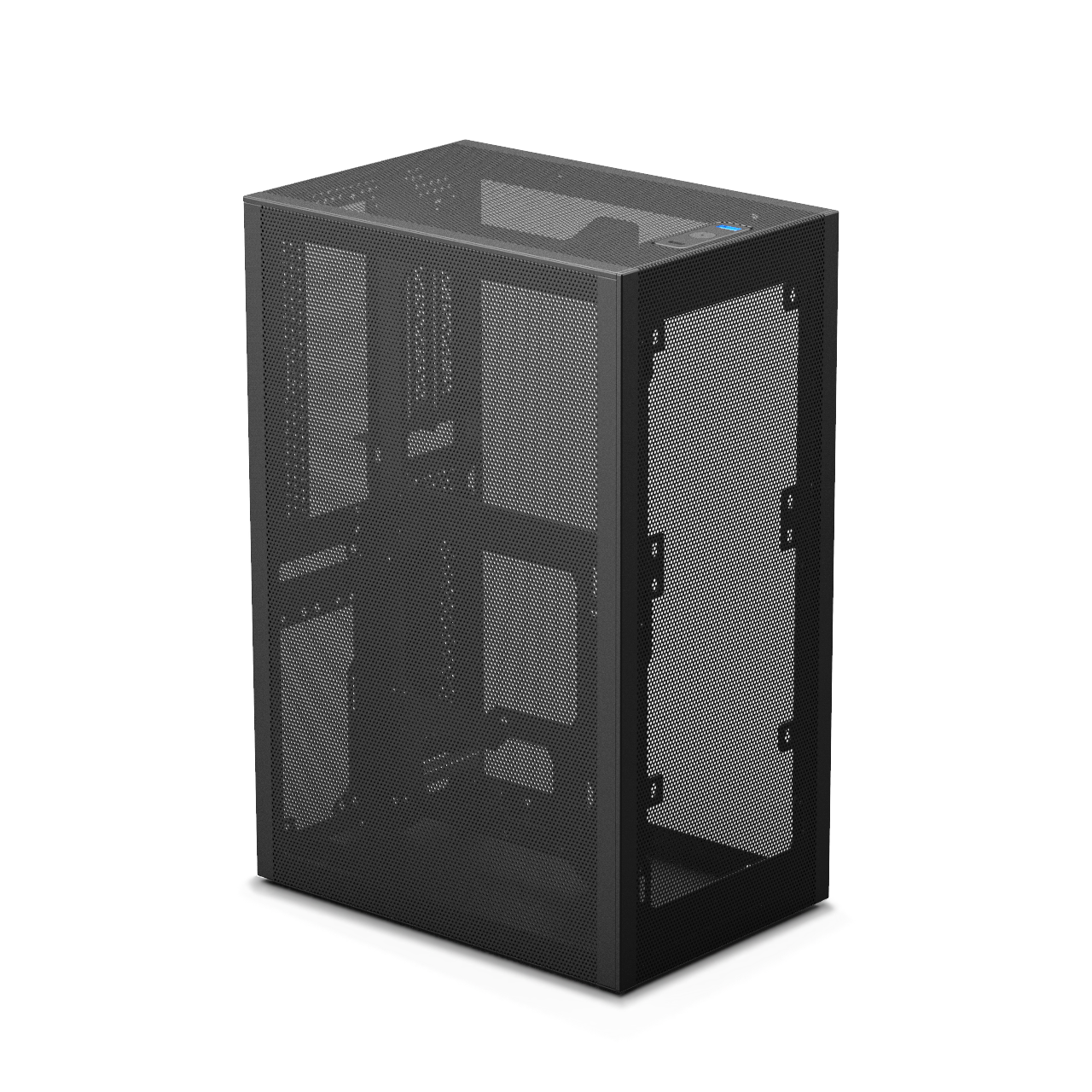

Full mesh version side panel

Two mesh panels (1mm thick)

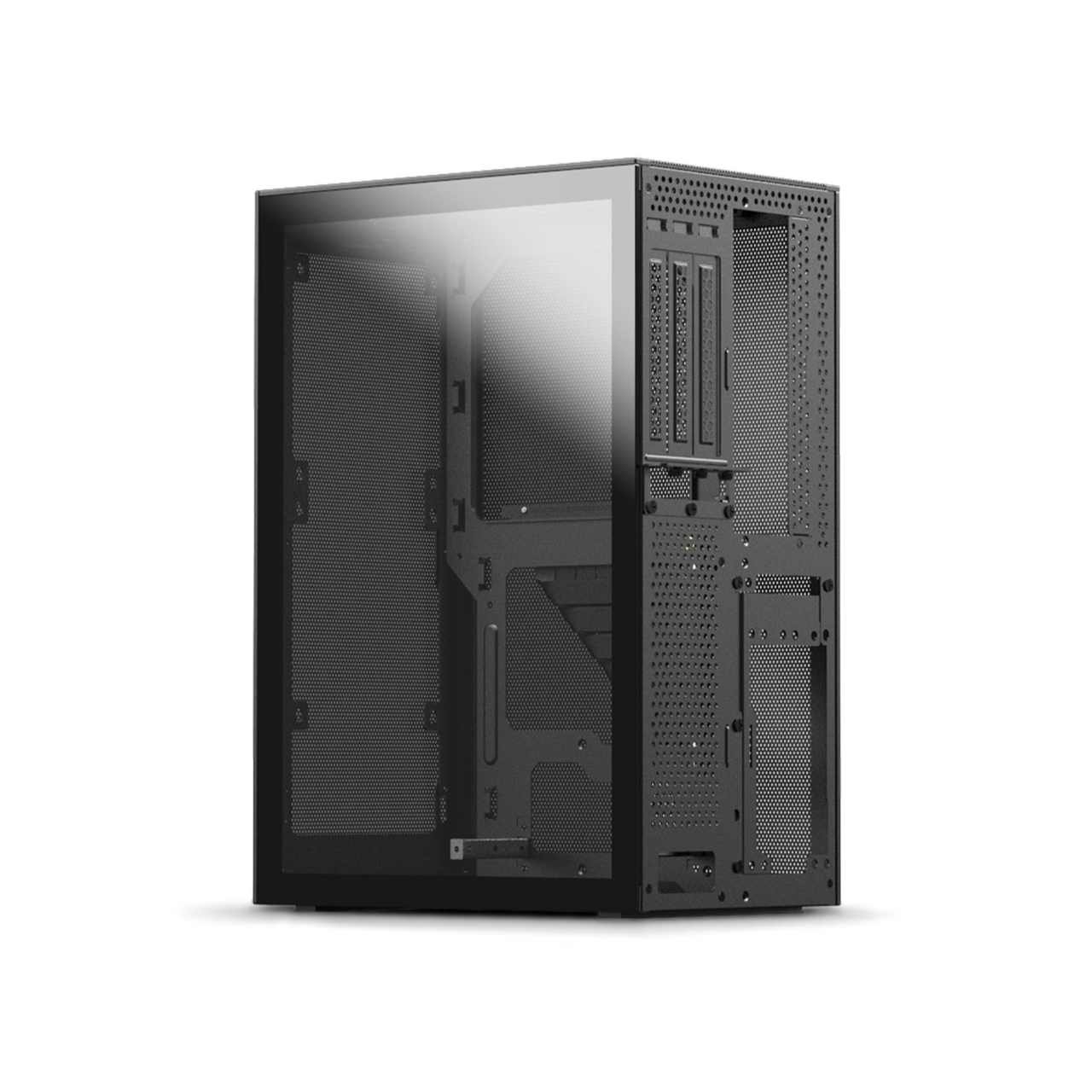

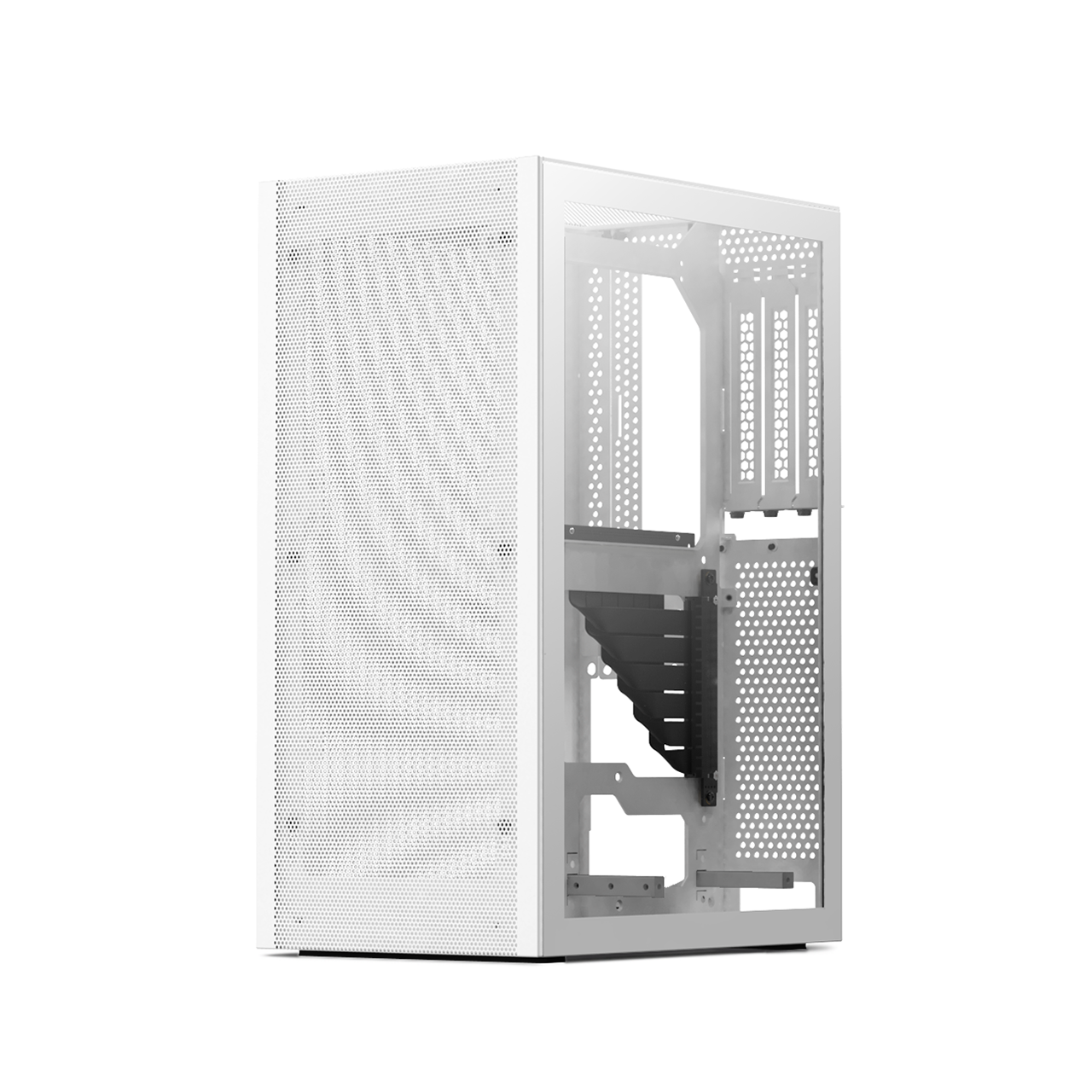

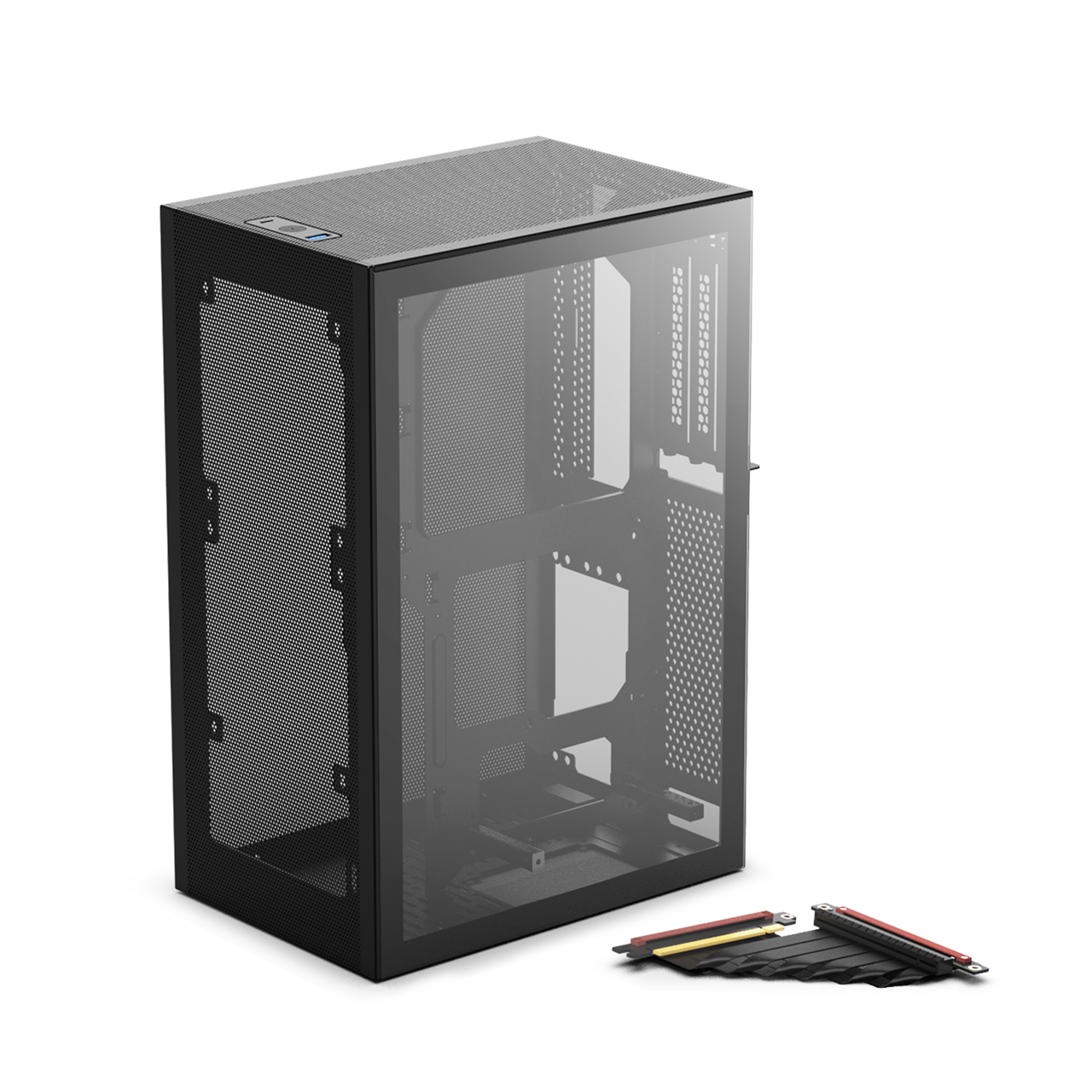

Tempered glass version side panel

One tempered glass panel (3mm thick) and one mesh panel (1mm thick)

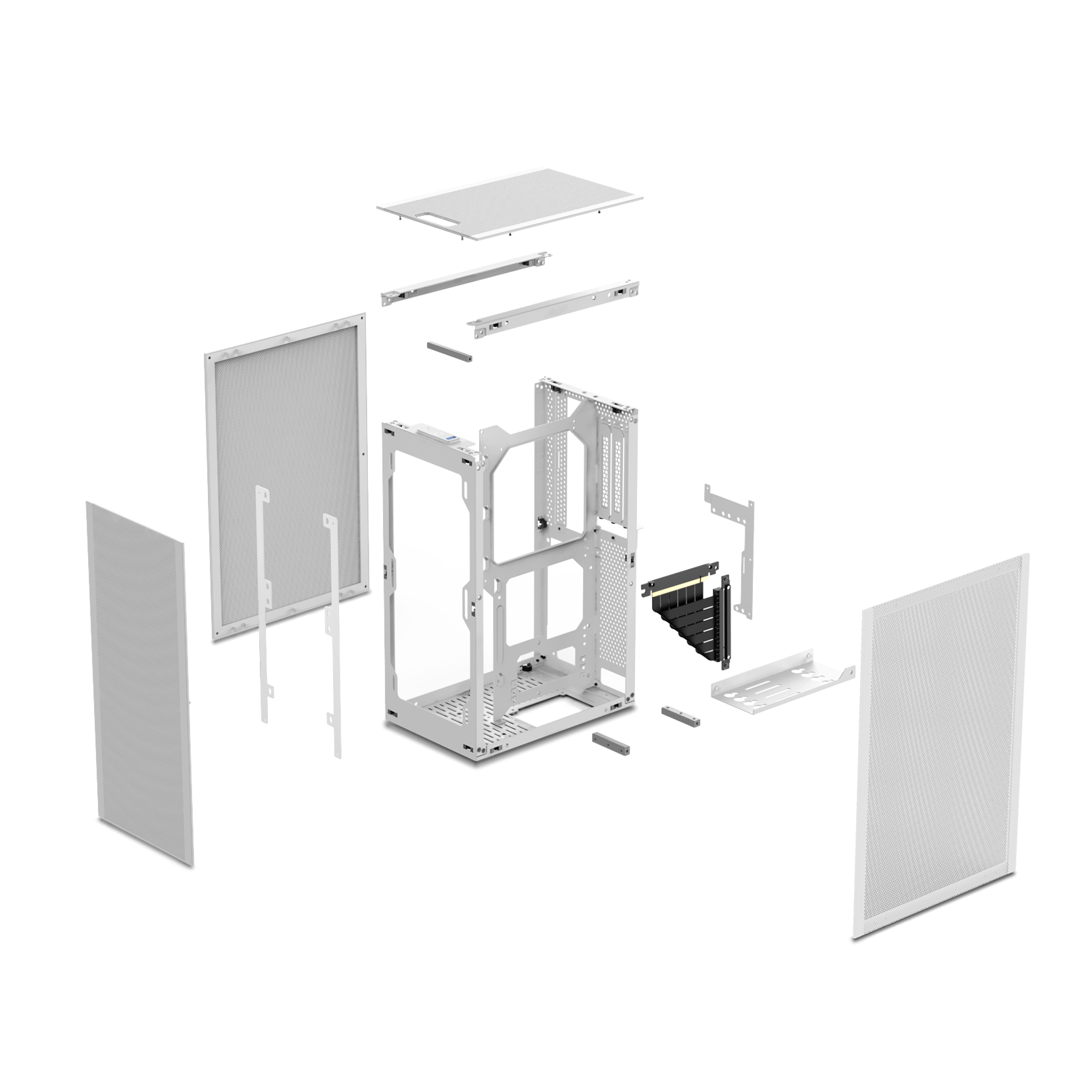

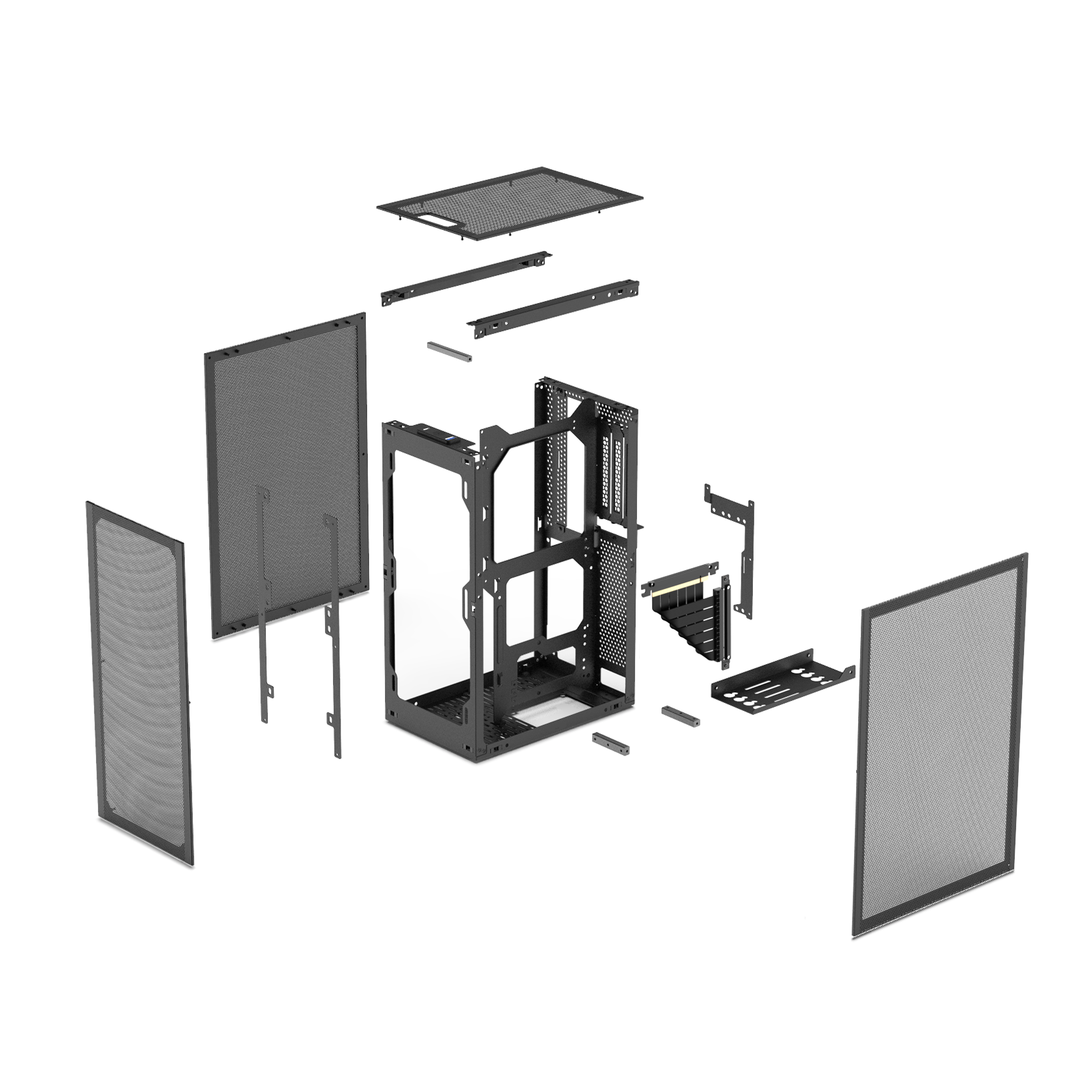

Tool-less push-to-lock

Both side, Top side, and Front side Panels

Compatibility

Motherboard compatibility

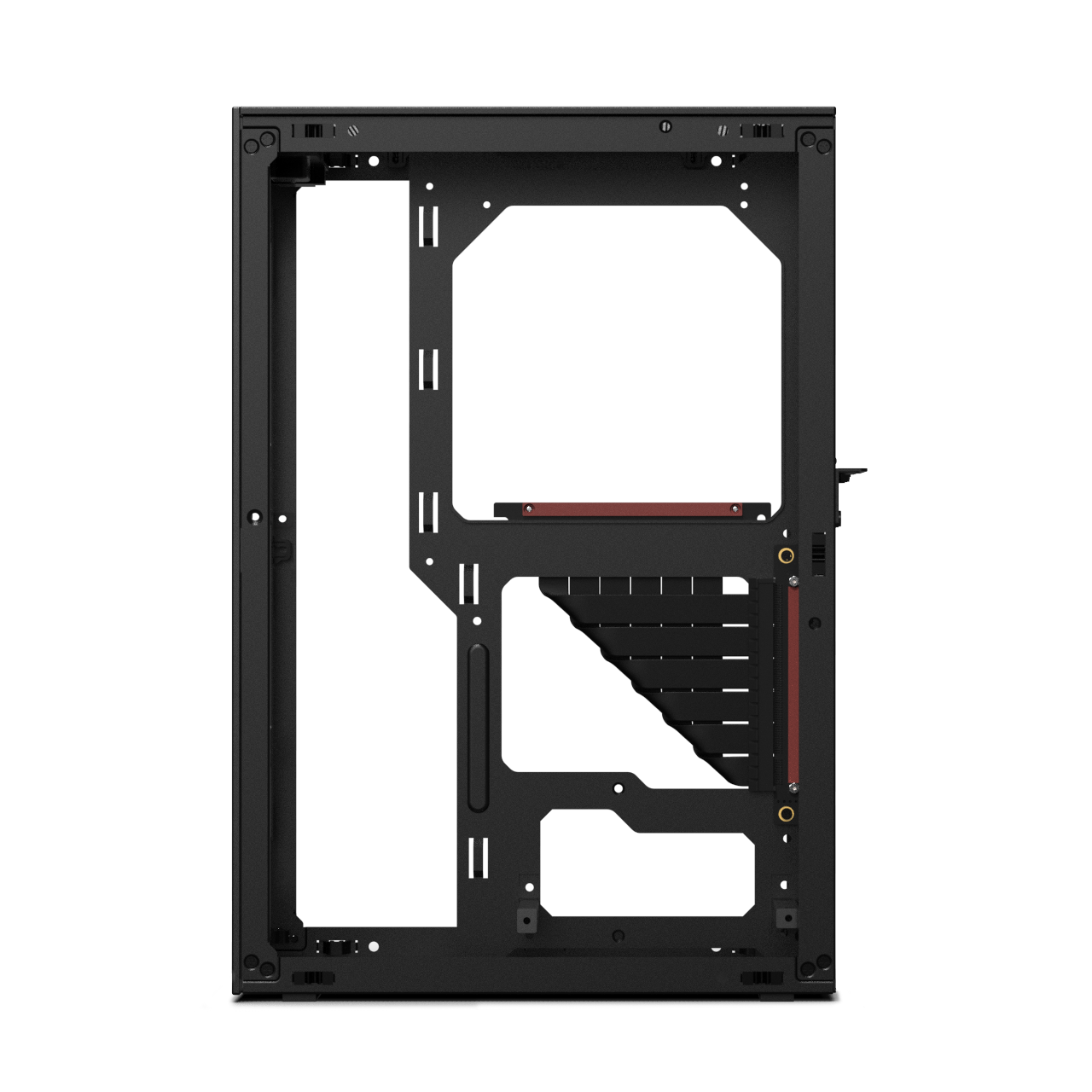

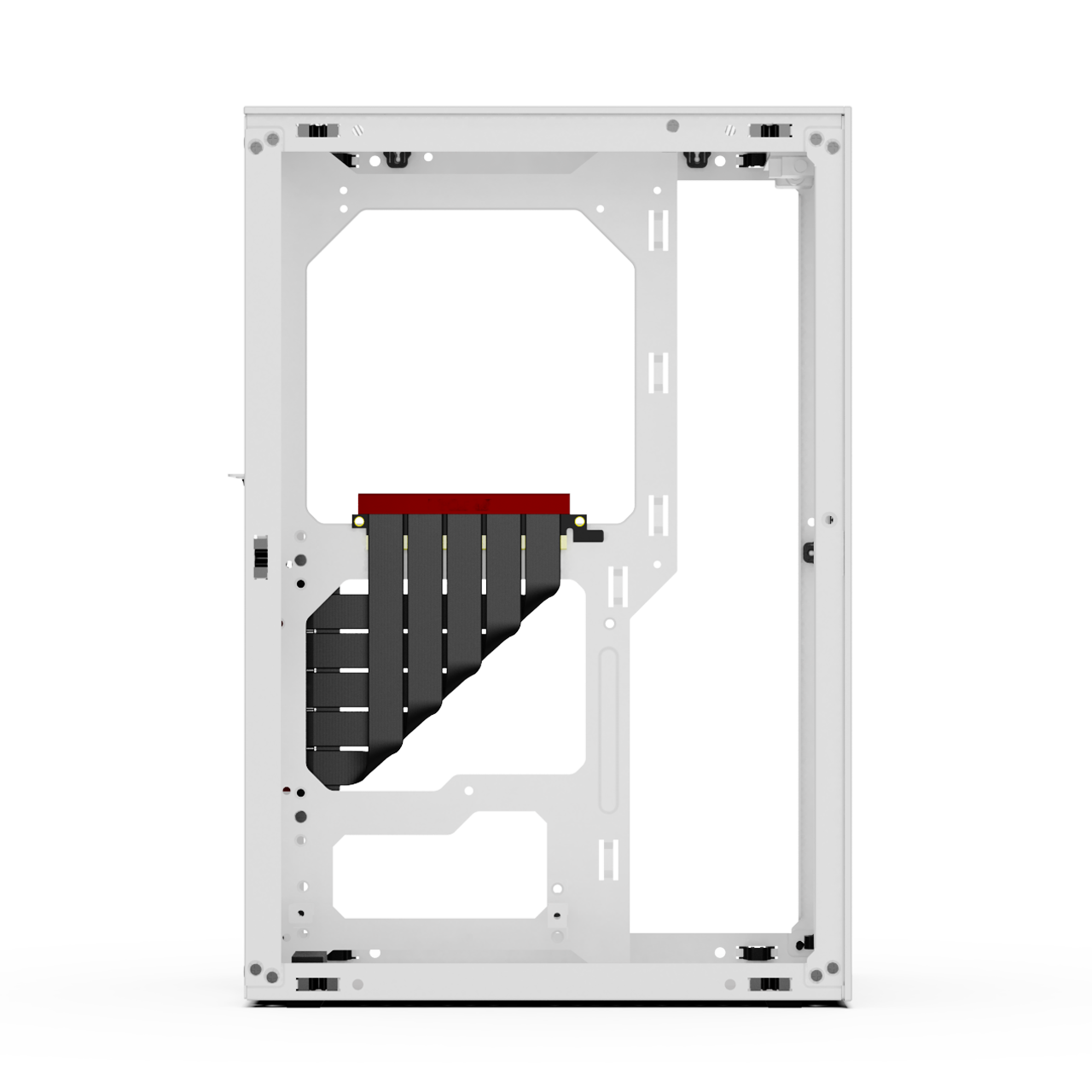

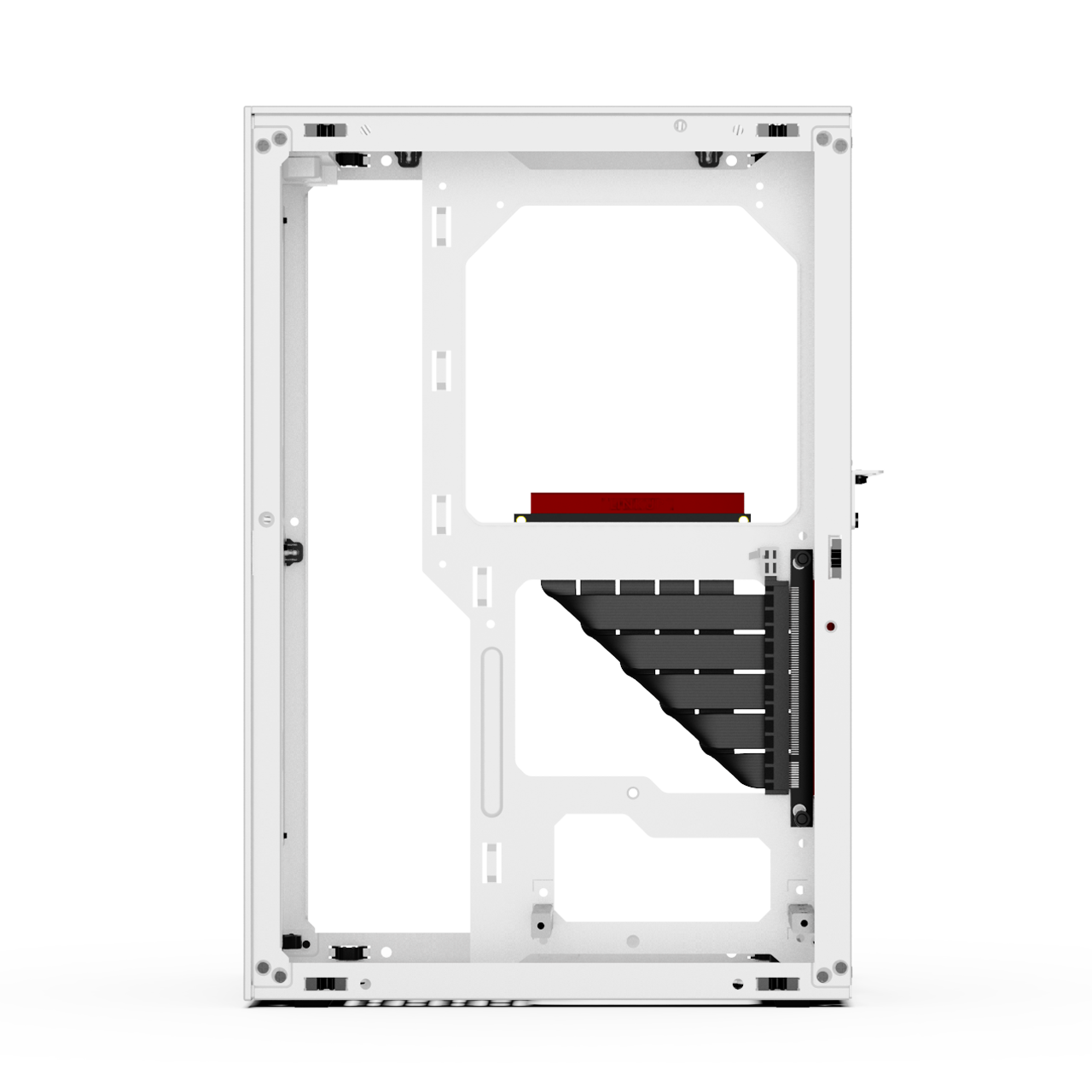

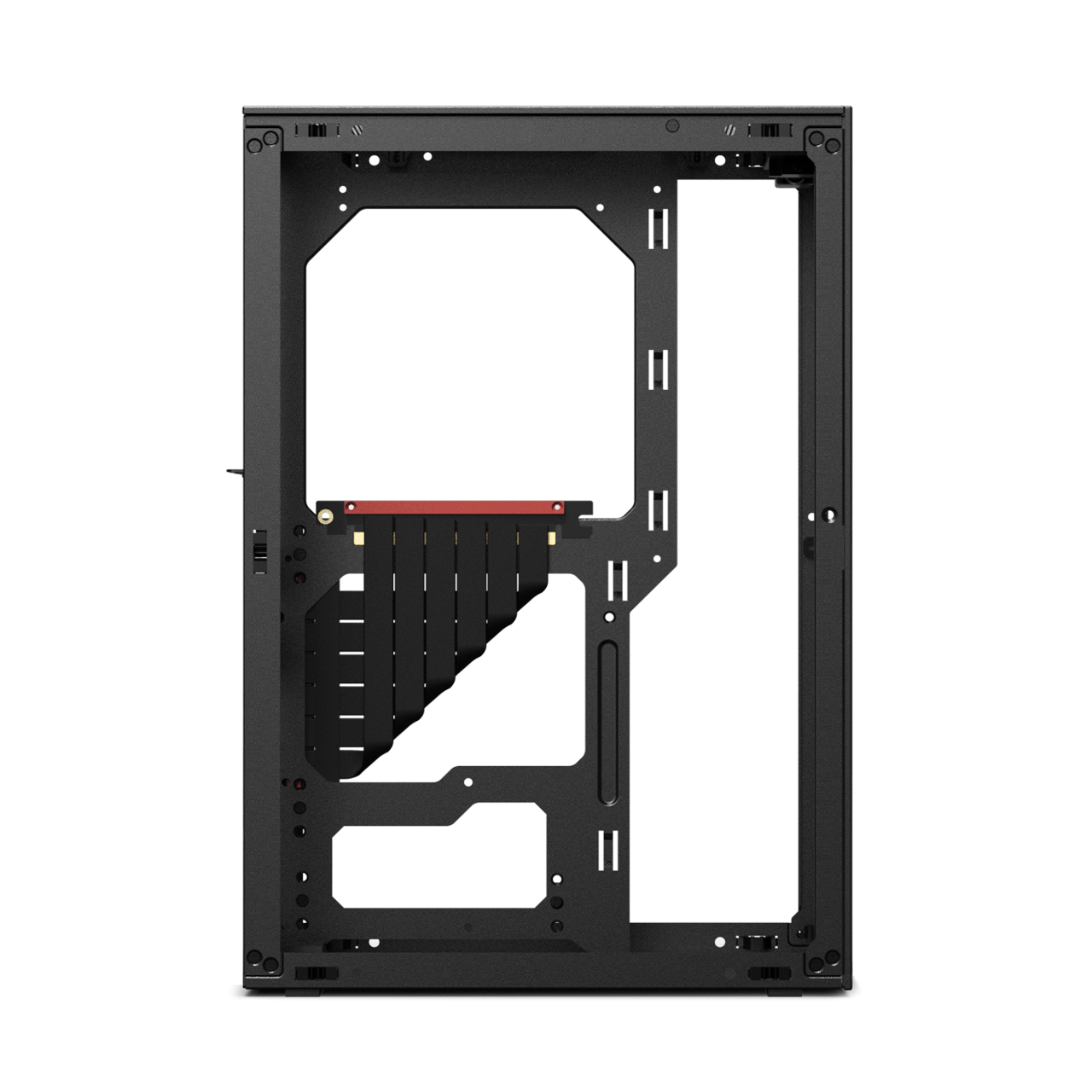

Mini ITX / Mini-DTX (need additional 20cm PCIe riser cable)

Front radiator

120 / 140 / 240 / 280 mm (Up to 320mm length, 143 mm width, 63 mm thickness with fans, dependent on GPU position / type)

GPU max length

Full length GPU: 4 slots mode up to 336mm length(GPU Baffle not included), 346mm length(GPU Baffle included )/ 3 slots mode up to 332mm length(GPU Baffle not included), 342mm length(GPU Baffle included) and 155 mm tall; small form factor GPU: Up to 211 mm length (without radiator)

Power supply type

ATX, SFX-L, SFX

PSU max length

170mm ATX PSU (with front fan only) / up to 160mm ATX PSU (with upward tubing AIO) / 140mm ATX PSU (with downward tubing AIO)

General

Case dimensions

245 x 166 x 363 mm / 9.64 x 6.54 x 14.29 inch

Package dimensions

415 x 220 x 310 mm / 16.34 x 8.66 x 12.2 inch

Net weight

Tempered glass: 3.7 kg / 8.25 lb
Full mesh: 3.6 kg / 7.83 lb

Gross weight

Tempered glass: 4.2 kg / 9.26 lb
Full mesh: 4.1 kg / 9.04 lb

Volume

14.75 liters / 14.63 liters w/o feet

Case material

SGCC powder coated steel, plastic, tempered glass

Package contents

Case, accessory box

Warranty

2 years
