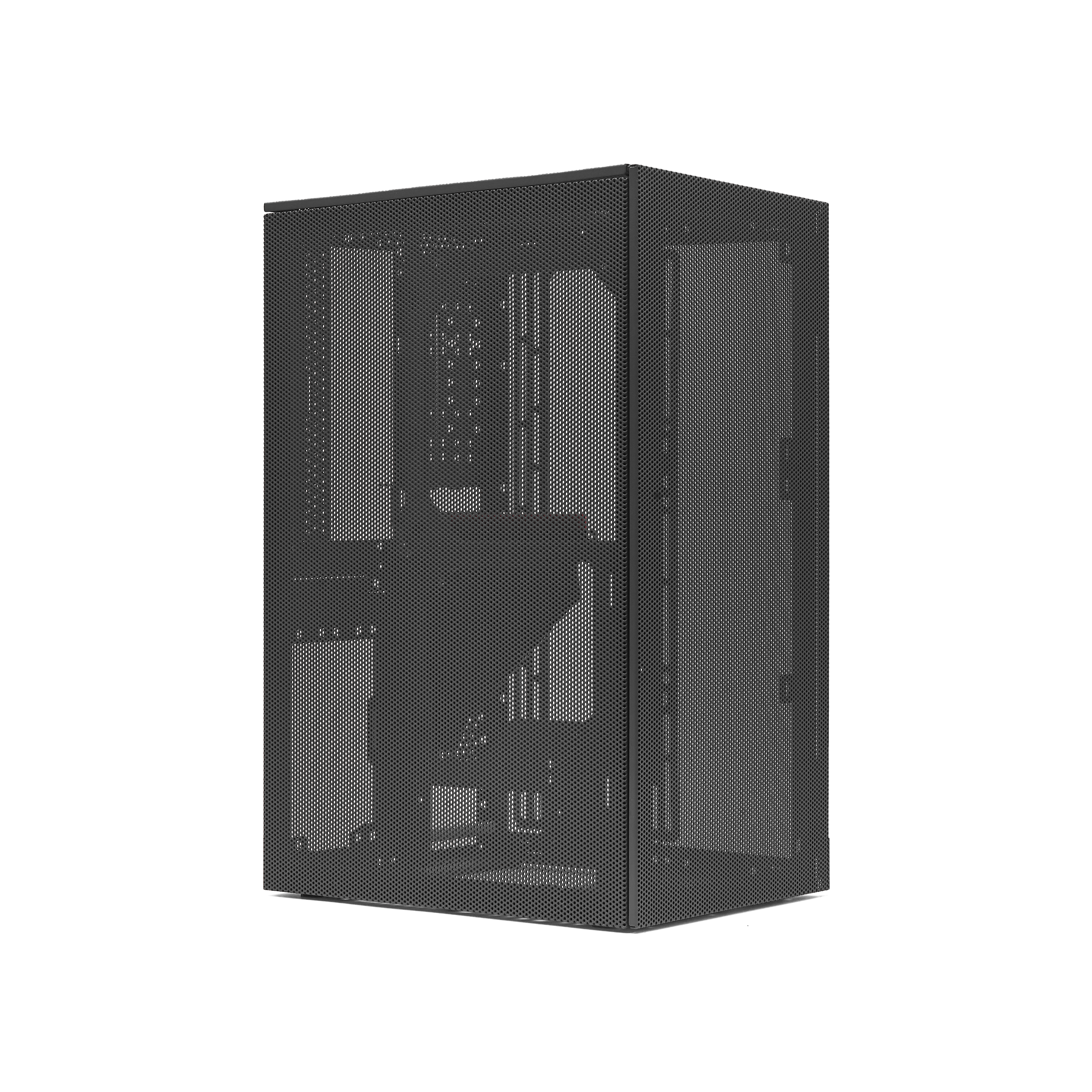

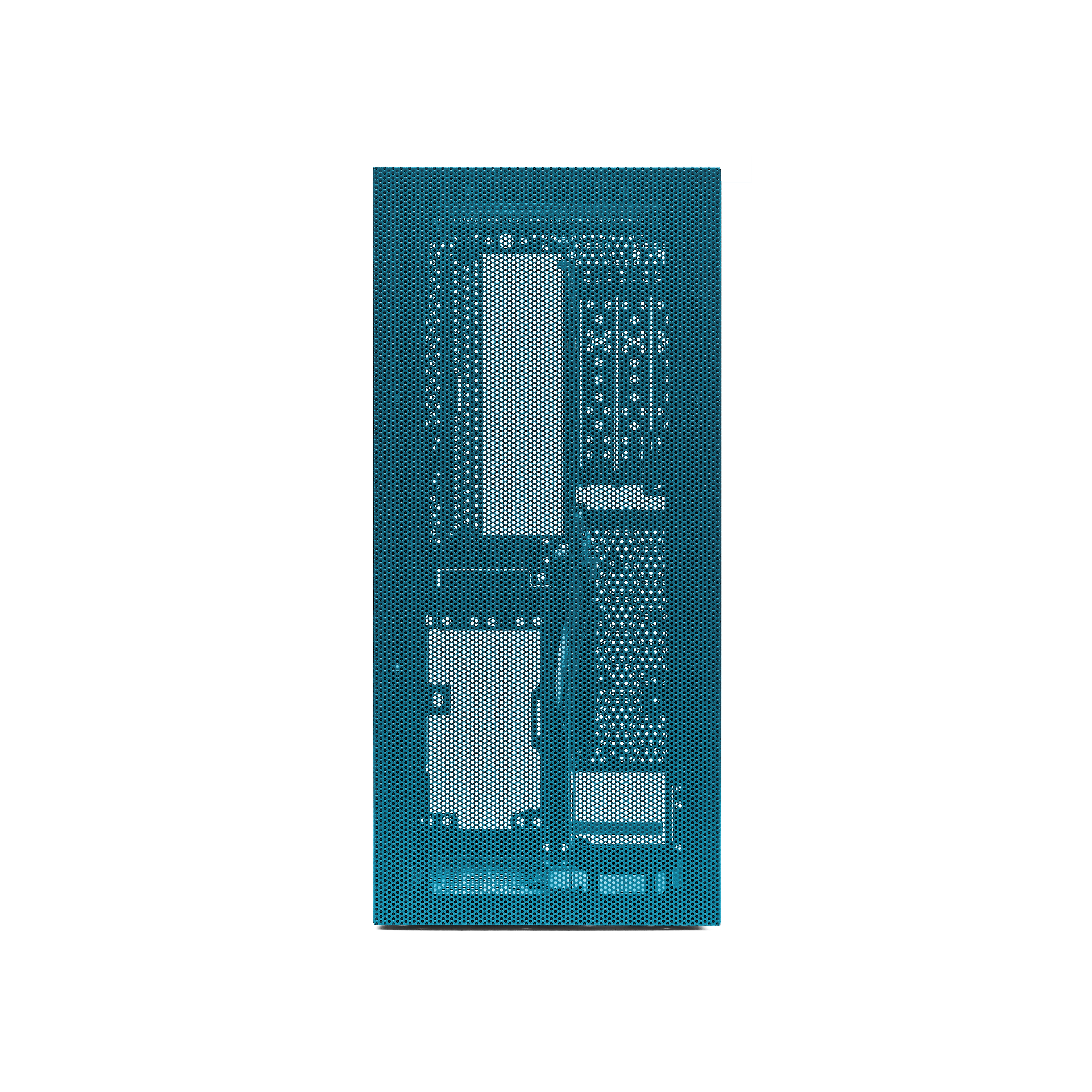

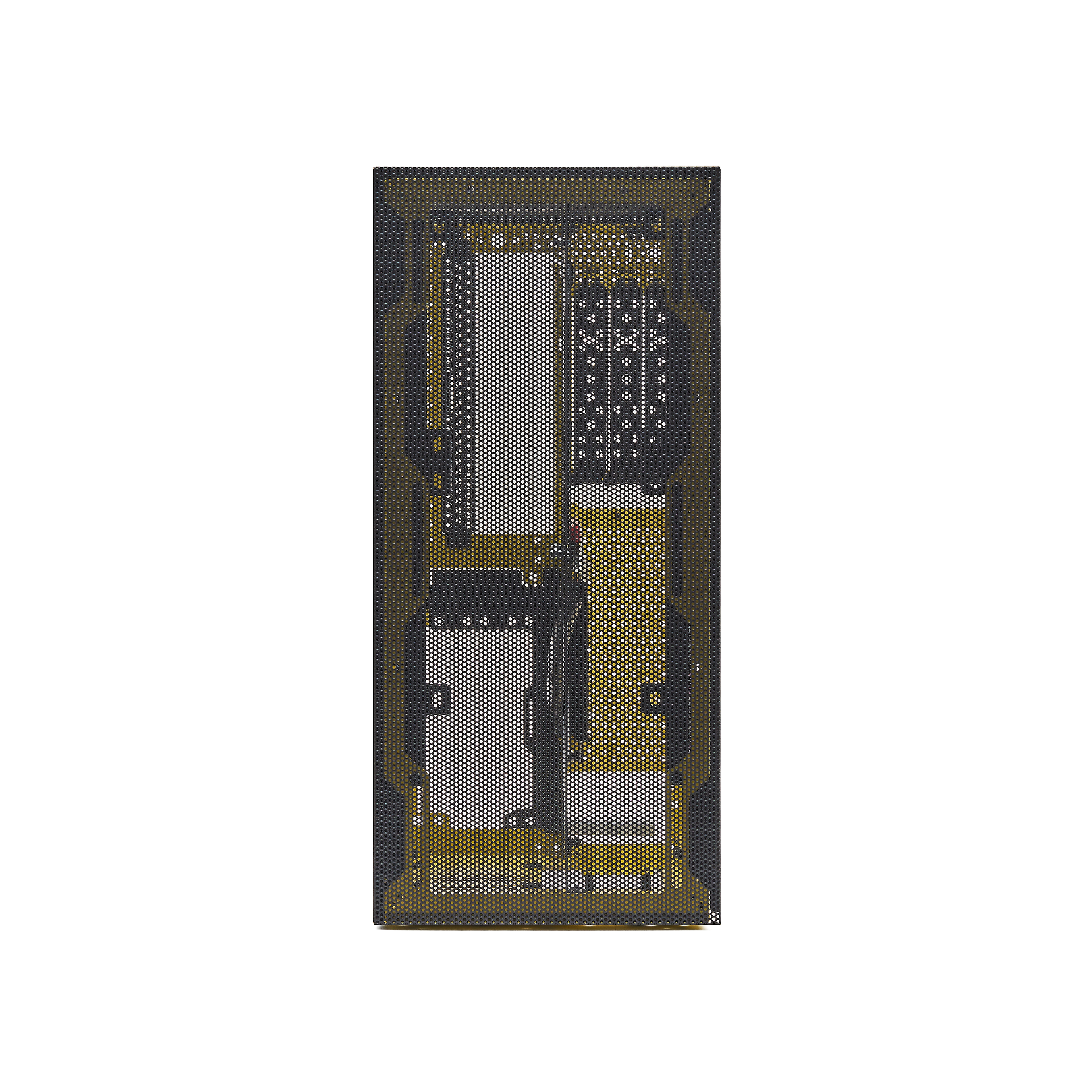

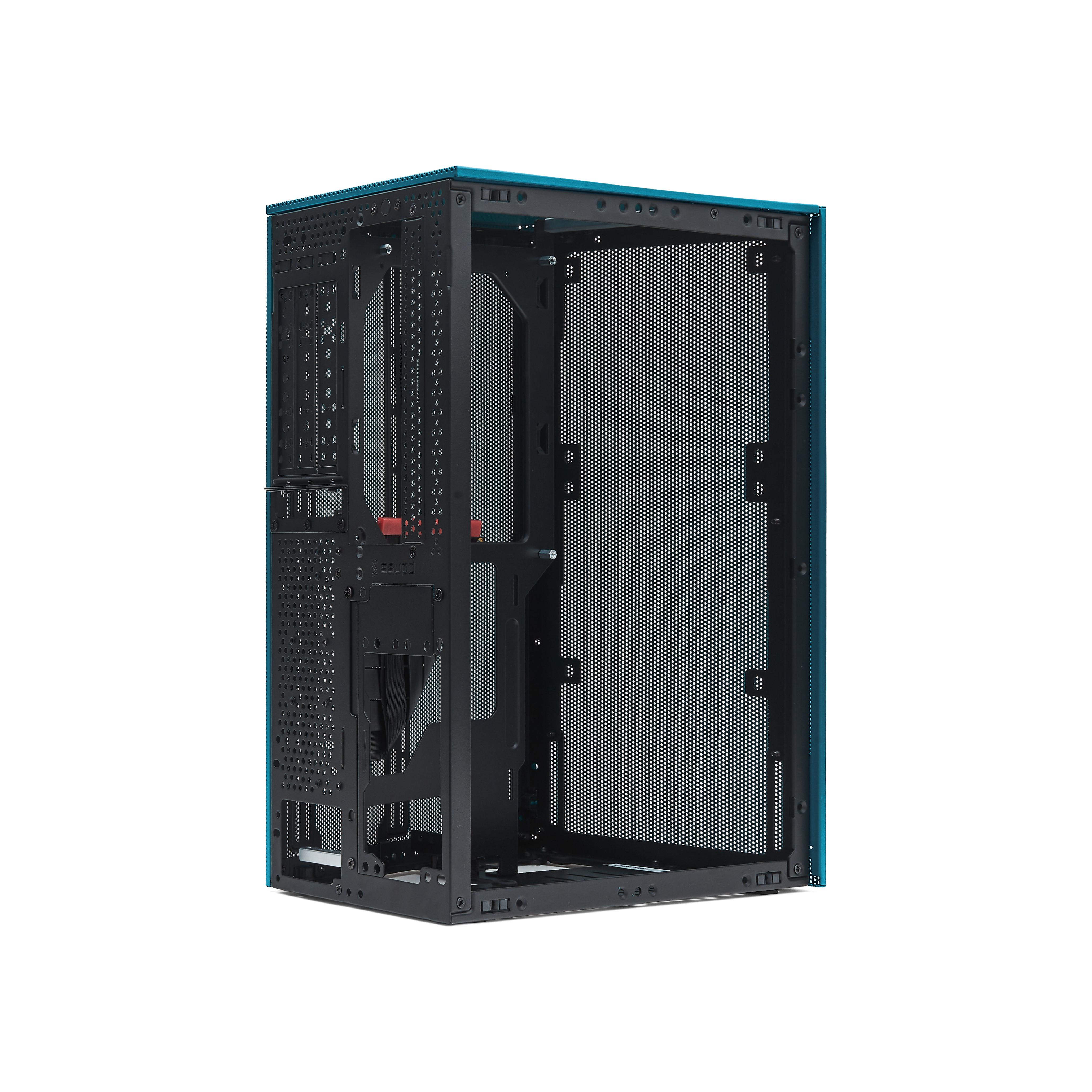

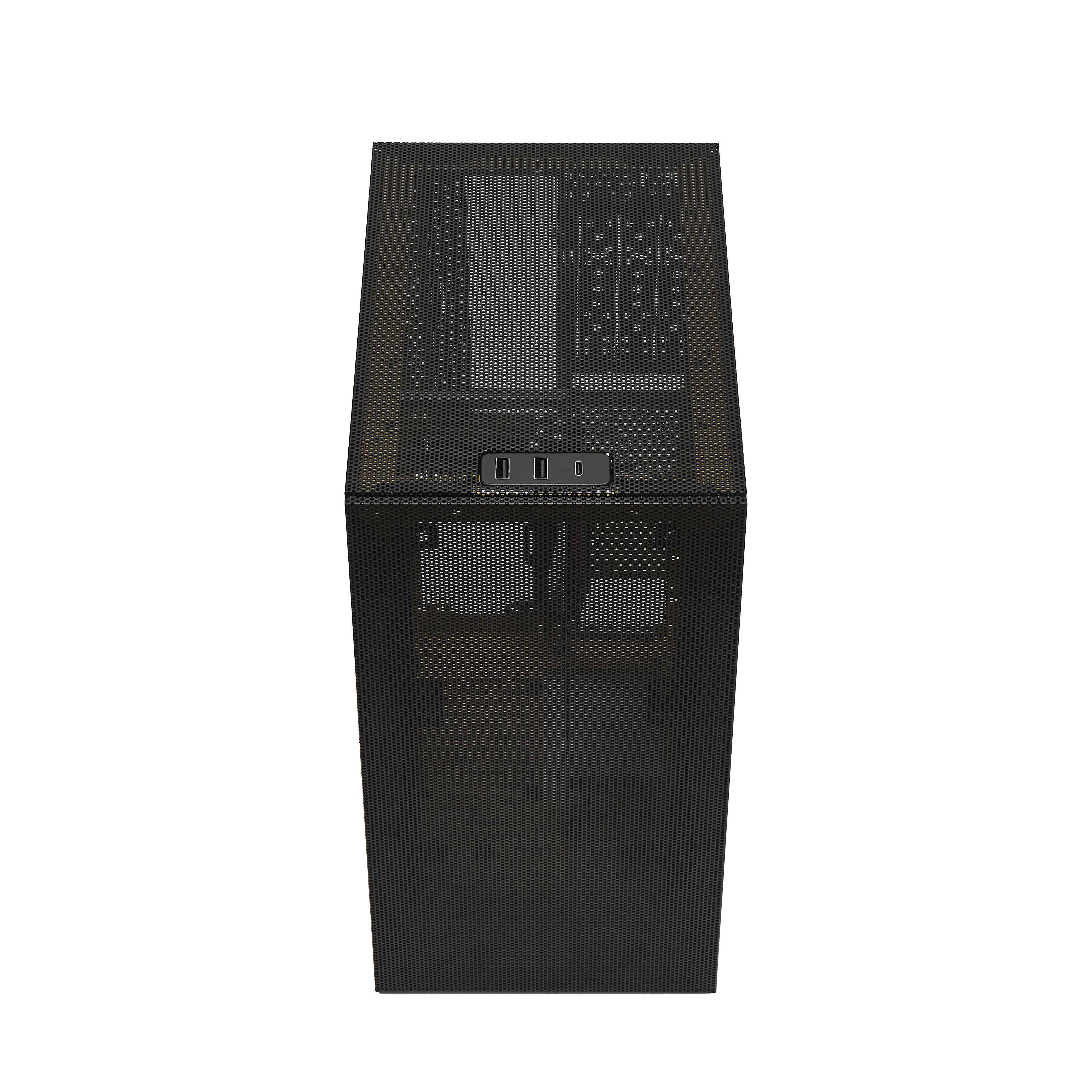

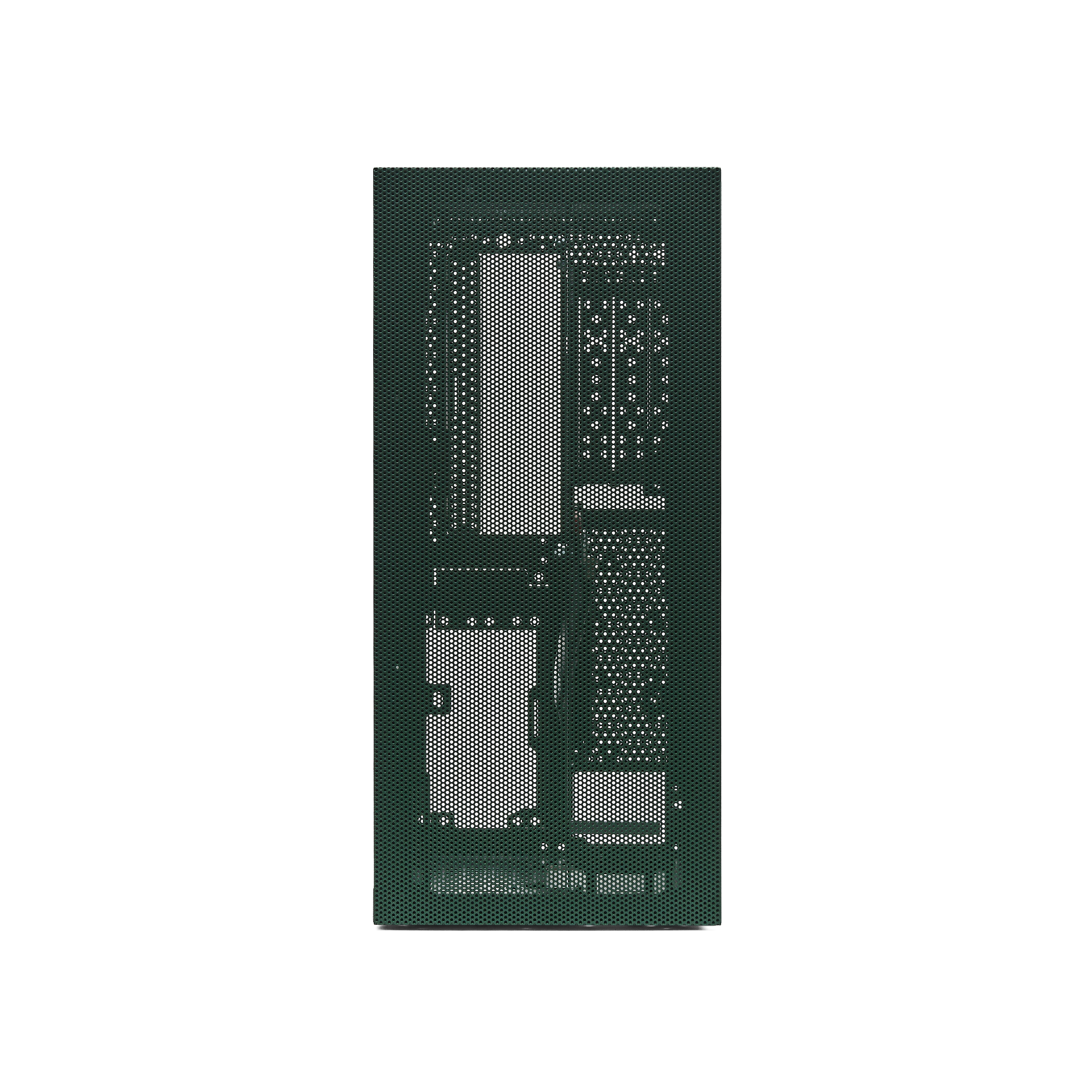

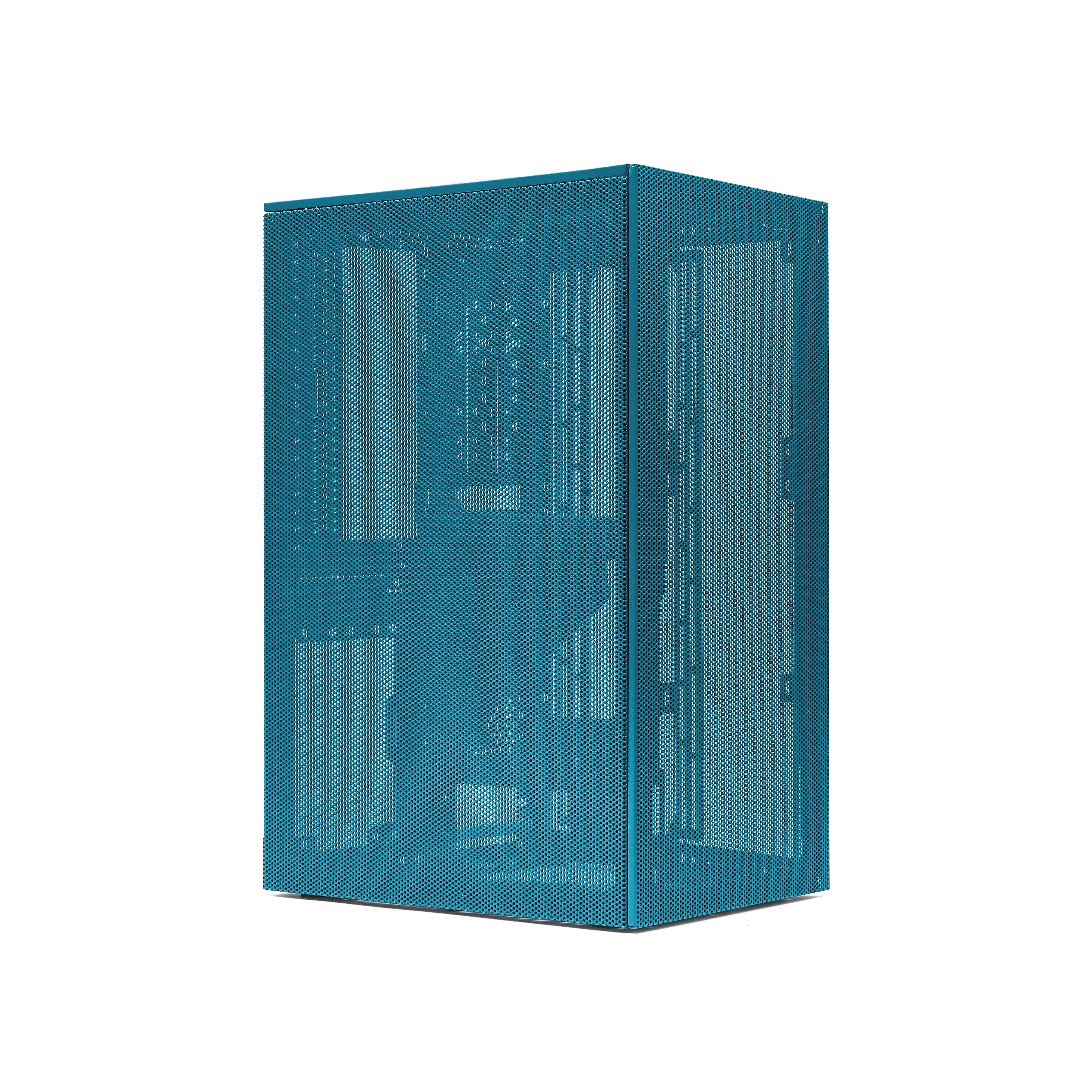

Meshroom S V2
Meshroom S 凭借其创新的 14.9L 体积设计为紧凑型 SFF PC 机箱树立了新标杆。尽管体积小，但它将 ATX 机箱的强大功能带入了紧凑的领域，提供了无与伦比的兼容性和冷却能力。机箱采用 1.5 毫米细网设计，支持闭环和定制回路水冷解决方案，确保可靠的散热性能。支持 ATX/MATX 主板和多达 4 插槽的高端显卡，性能不受空间限制。一个专门布置的空间可容纳双散热器配置和一个 DDC 泵，以满足定制水冷爱好者的需求。Meshroom S 包裹在简洁的设计中，毫不费力地将形式和功能融为一体，提供适合任何办公桌的多功能解决方案。
产品状态说明：
- 全新：产品从未使用过，处于全新状态。
- 良好：产品已使用，但保持良好状态，功能正常，外观无明显瑕疵。
- 可接受：产品有一定使用痕迹，可能存在轻微磨损，但不影响正常使用。
Uncompromised GPU Support
Designed to Supported GPUs up to 4 slots, 343mm in length, 152mm in width
Breathes Easy, Performs Great
Breathable, mesh panels enables higher airflow and better cooling
Support Up to ATX motherboard
Experience the unique layout for ATX motherboard without compromising
Cool in the Front
Compatible with 280 radiator in the front
Easy access for custom loop
Featuring a dual radiator custom loop water cooling design and assuring with a ddc pump simultaneously
Power Button Relocation
To improve your building experience and product reliability, we have made some production optimizations to our Meshroom S and Meshroom D cases. During this transition, you may receive either Variant A (old) or Variant B (new), depending on the inventory batch.
All accessories are fully compatible between all versions and product functionality is unaffected.
Meshroom S V2 Variant A
Meshroom S V2 Variant B
ACCESSORY BOX
Meshroom S V2 Variant A
90 degree angle monitor connector
Meshroom S V2 Variant B
90 degree displayport extension cable
We moved the power button to the front panel (Variant B group) for easier access and to ensure a consistent I/O layout across all Meshroom series.
Specifications
PCIe standard
PCIe 4.0 Version: PCIe Gen 4.0 x 16
PCIe 5.0 Version: PCIe Gen 5.0 x 16
No PCIe Version: N/A

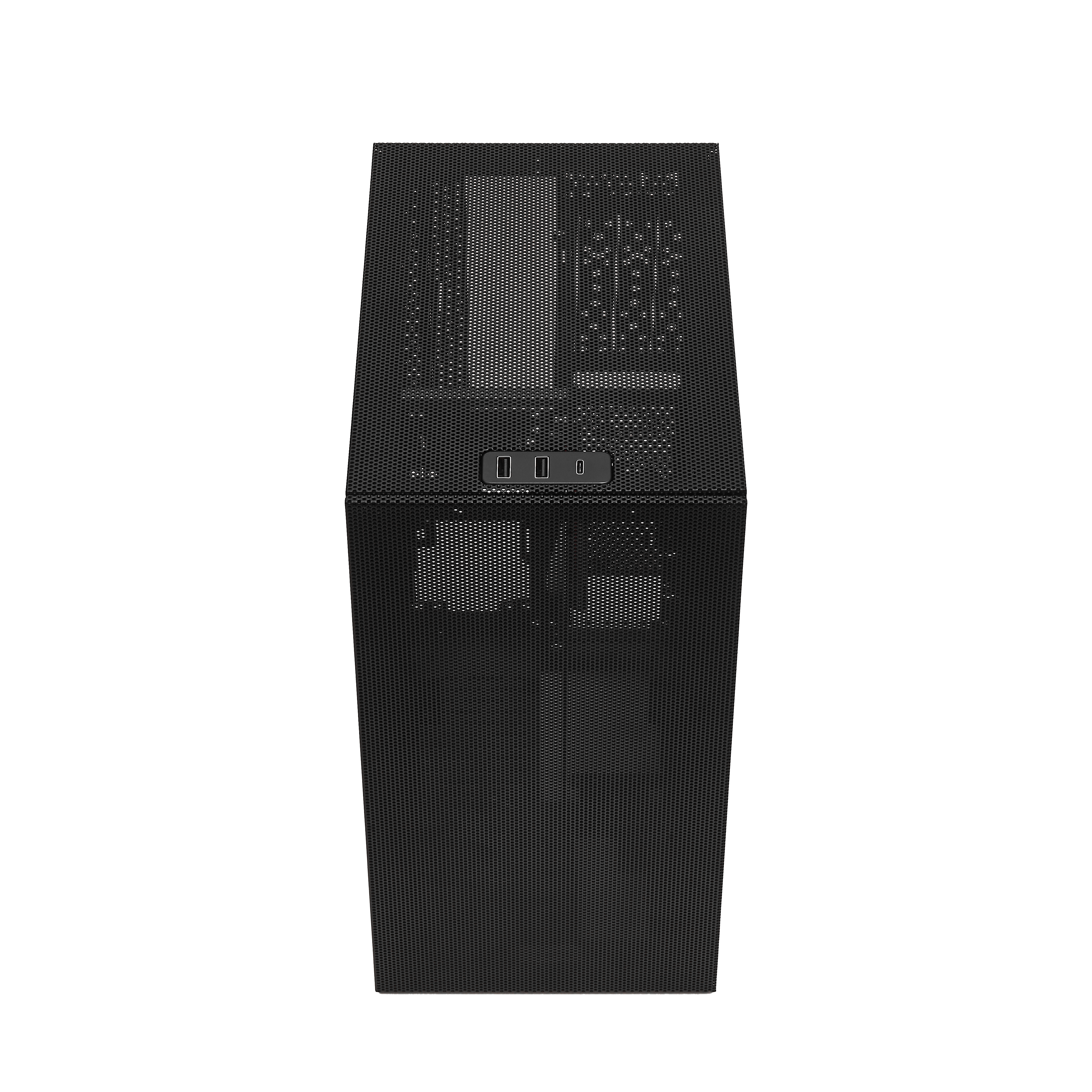

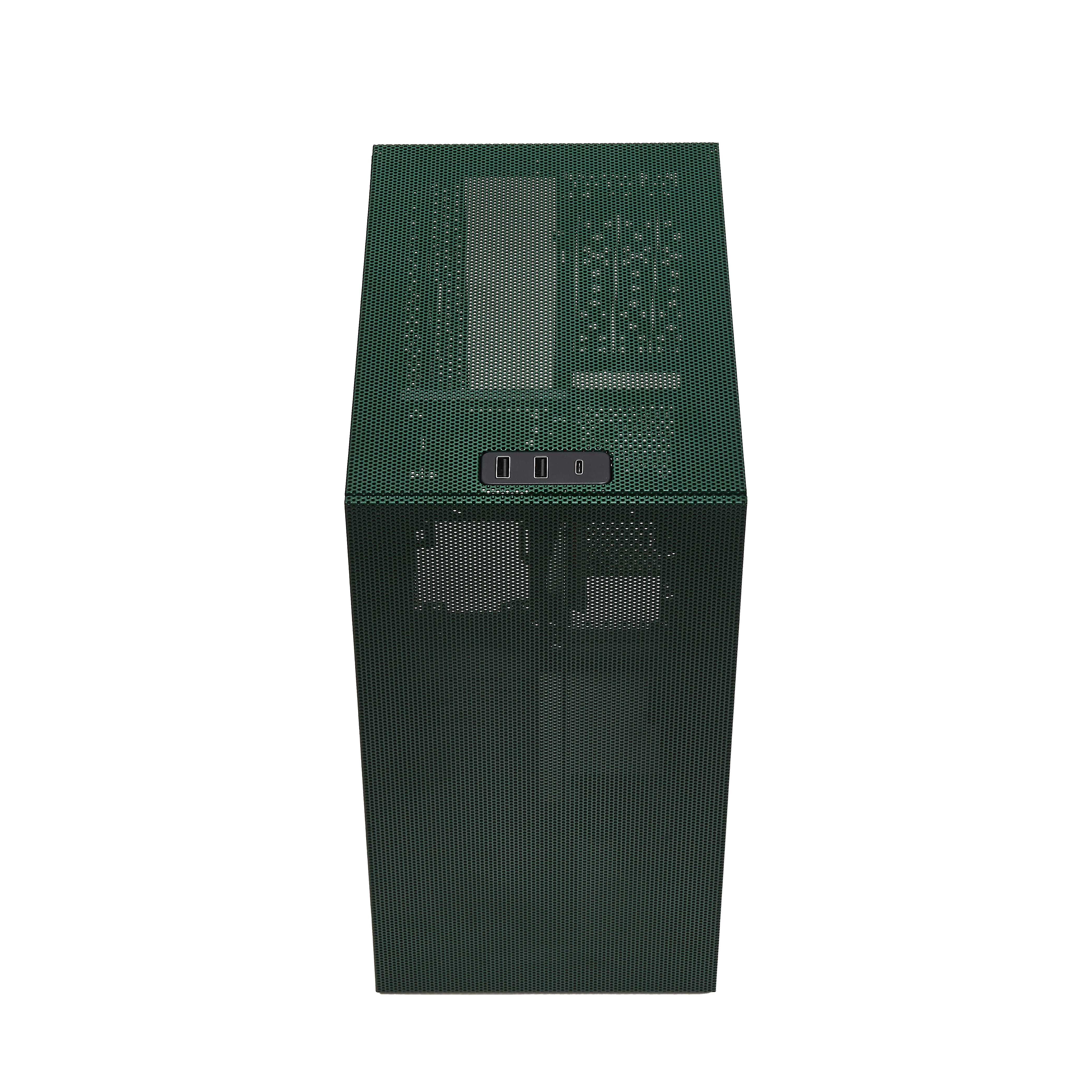

Front IO ports
Variant A: 1x USB 3.2 Gen 1 Type-C (10 Gbps), 2x USB 3.0 Type-A (5 Gbps)
Variant B: 1x USB 3.2 Gen 2 Type-C (20 Gbps), 1x USB 3.0 Type-A (5 Gbps), 1x Power button
Rear IO ports
Variant A: Power button
Variant B: N/A
Tool-less push-to-lock
Both side, top, and front panels
Top and front panel
Fine mesh panels
Side panel
Fine mesh panels
Expansion slots
Rear GPU position: up to 4 slots (82 mm)
Front GPU position: up to 3 slots (61 mm)
Horizontal SFF GPU position: up to 3 slots (63 mm)
2.5" drive mounts
Horizontal SFF GPU position: 6 × 2.5” SSD
Rear GPU position: 4 × 2.5” SSD
Front GPU position: 4 × 2.5” SSD
3.5" drive mounts
Horizontal SFF GPU position: 2 × 3.5” HDD
Rear GPU position: 2 × 3.5” HDD
Front GPU position: 2 × 3.5” HDD
Front fan mounts
Max 2 x 120mm / 140mm fans
Top fan mounts
Max 1 x 120mm / 140mm (15mm thick)
Compatibility

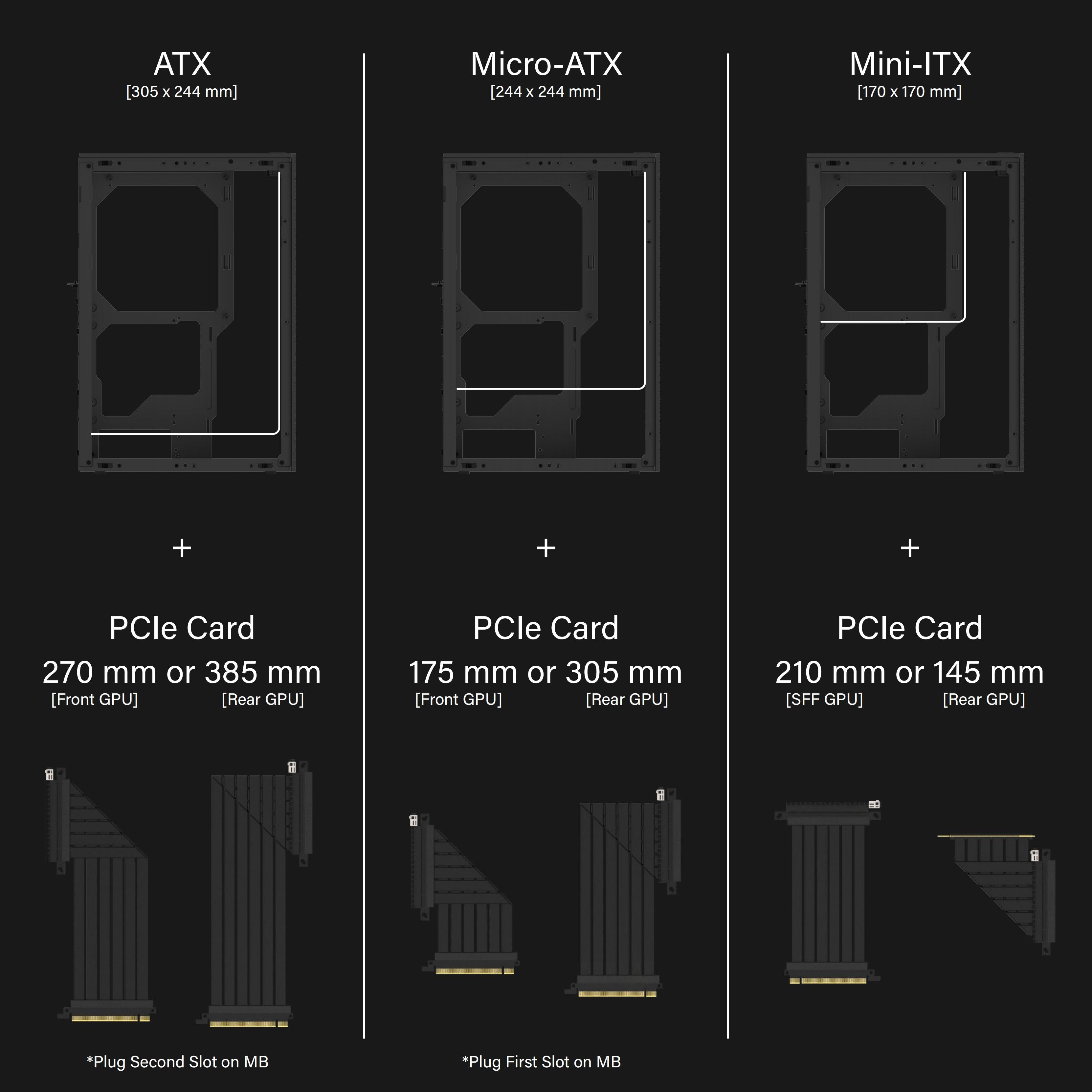

Motherboard compatibility
Mini ITX / Mini DTX; Micro-ATX / ATX (requires optional PCIe card)
Power supply type
ATX / SFX-L / SFX
Power supply max length
170 mm with front fan assembly only;
160 mm with upward tubing AIO;
150 mm with downward tubing AIO
CPU cooler max height
3-slot mode: Up to 74mm height;
4-slot mode: Up to 54mm height

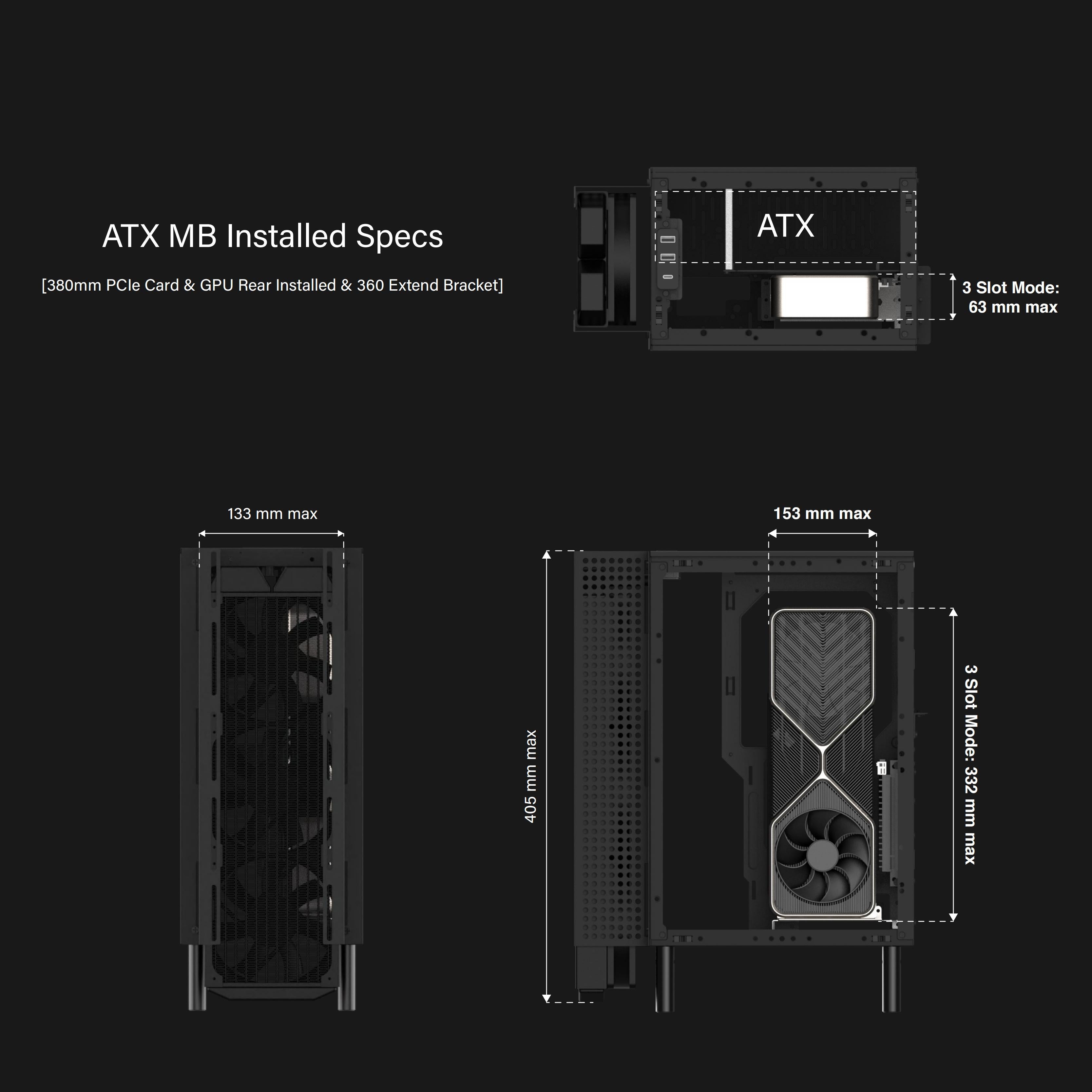

GPU max length (rear position)
3-slot mode: 332 mm length x 153 mm height x 63 mm width (353 mm length with extra feet);
4-slot mode: 332 mm length x 153 mm height x 82 mm width (353 mm length with extra feet)
GPU max length (front position)
3-slot mode: 314 mm length x 120 mm height x 61 mm width (335 mm length with extra feet)
GPU max length (horizontal position)
Up to 239 mm length x 160 mm height x 63 mm width
Front water cooler
240 / 280 mm radiator + fans up to 326 mm length x 144 mm width x 63 mm thick
Side water cooler
Front GPU position: 240 mm radiator + fans up to 120 mm width x 53 mm thick
Rear GPU position: 240 / 280 mm radiator+fans up to 140 mm width x 45 mm thick (allows 31 mm width GPU)
Right side radiator + ATX MB
3 slots GPU mode: 240 mm support max 120 mm wide, 53 mm thick with fans
General
Case dimensions
Variant A: 247 x 167 x 365 mm / 9.72 x 6.57 x 14.37 inch;
Variant B: 247 x 167 x 365 mm / 9.72 x 6.57 x 14.37 inch;
Without feet: 247 x 167 x 362 mm / 9.72 x 6.57 x 14.25 inch
Package dimensions
435 x 195 x 315 mm / 17.13 x 7.68 x 12.4 inch
Volume
Variant A: 15.04 liters / 14.92 liters without feet;
Variant B: 15.04 liters / 14.92 liters without feet
Case material
SGCC powder coated steel, plastic
Net weight
Variant A: 3.15 kg / 6.9 lb
Variant B: 3.06 kg / 6.75 lb
Gross weight
Variant A: 3.7 kg / 8.2 lb
Variant B: 3.63 kg / 8.01 lb
Package contents
Case, accessory box
Warranty
2 years
