Ssupd DP线
Allows Meshroom S support larger GPU
Designed with low-profile up-angle plugs and a 23mm clearance height, it allows the installation of larger GPUs while minimizing connector length.
Multiple Shielding protaction
Designed with multiple shielding layers, 24K gold-plated connectors, and tin-plated copper cores to ensure clear, stable, and astonishing visual quality.
Optimal Fit, Minimal Damage
Maximize space and minimize damage with the 90-degree connecting cable, designed for tight spaces and optimal cable management, reducing interface damage from twisted cable pressure.
Connect More, Interfere Less
Experience seamless connectivity with the connecting cable, designed to prevent interference even when multiple cables are plugged side by side.
Specifications
Standard
DisplayPort 1.4 (HBR3) / HDCP 2.2
Bandwidth
32.4 Gbps
Resolution Support
Up to 8K@60Hz / 4K@144Hz / 2K@165Hz
Conductor
30 AWG (7/0.10 mm) Tinned Copper
Insulation
Foam-Skin PE + PP
Shielding Layers
Al-Mylar foil + Tinned Copper Braid + Graphene Conductive Cloth
Outer Jacket
DP 1.4 Extension: Black PVC (OD 5.2)
Male Connector Clearance
DP 1.4: ≥23 mm vertical clearance
DP 1.4 Extension: ≥22 mm vertical clearance
Minimum Bend Radius
≥6× cable OD for fixed routing, or ≥10× OD for frequent bending
General
Cable length
DP 1.4: 2 m w/o connectors
DP 1.4 Extension: 30 cm w/o connectors (max 3 m total daisy-chain length)
Connector type

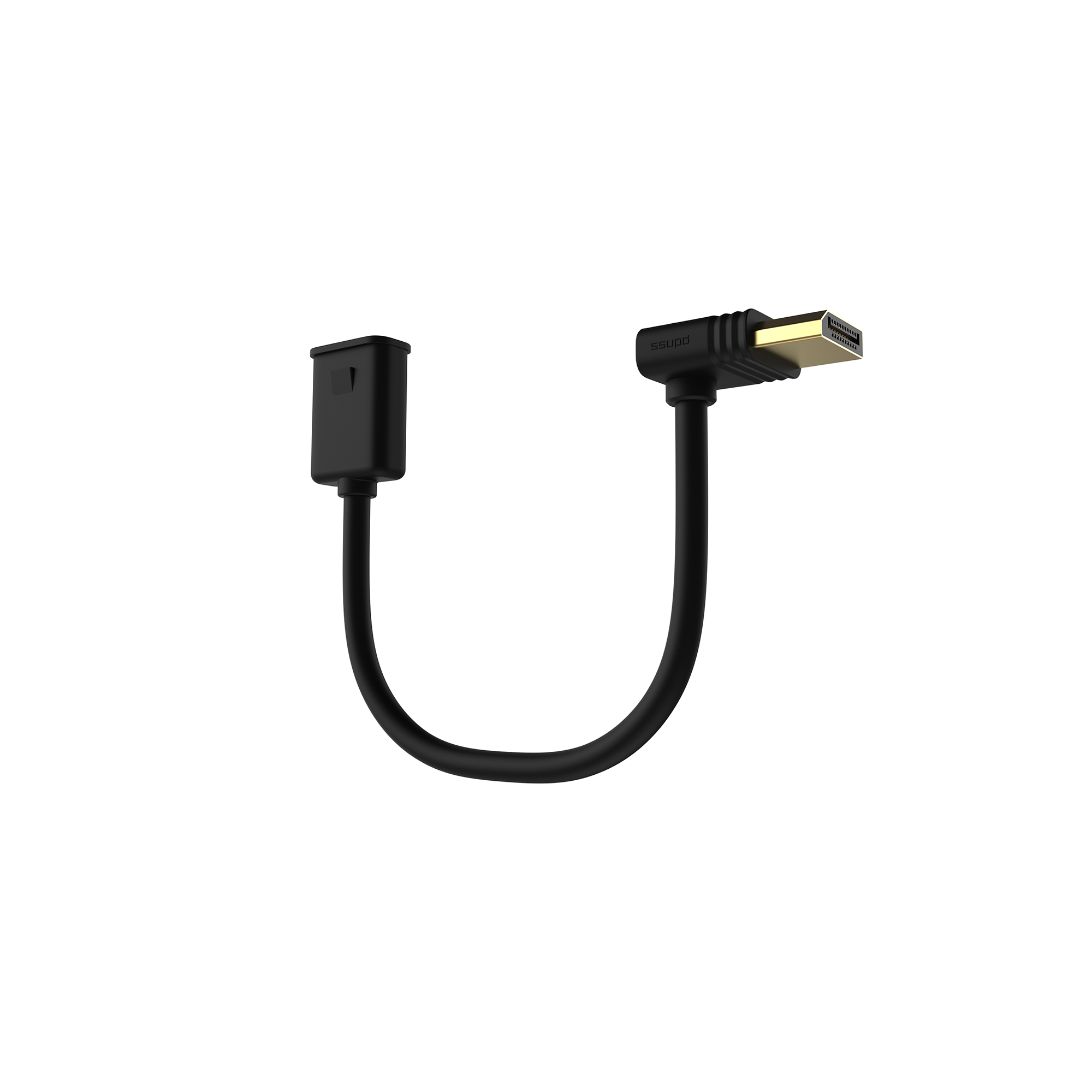

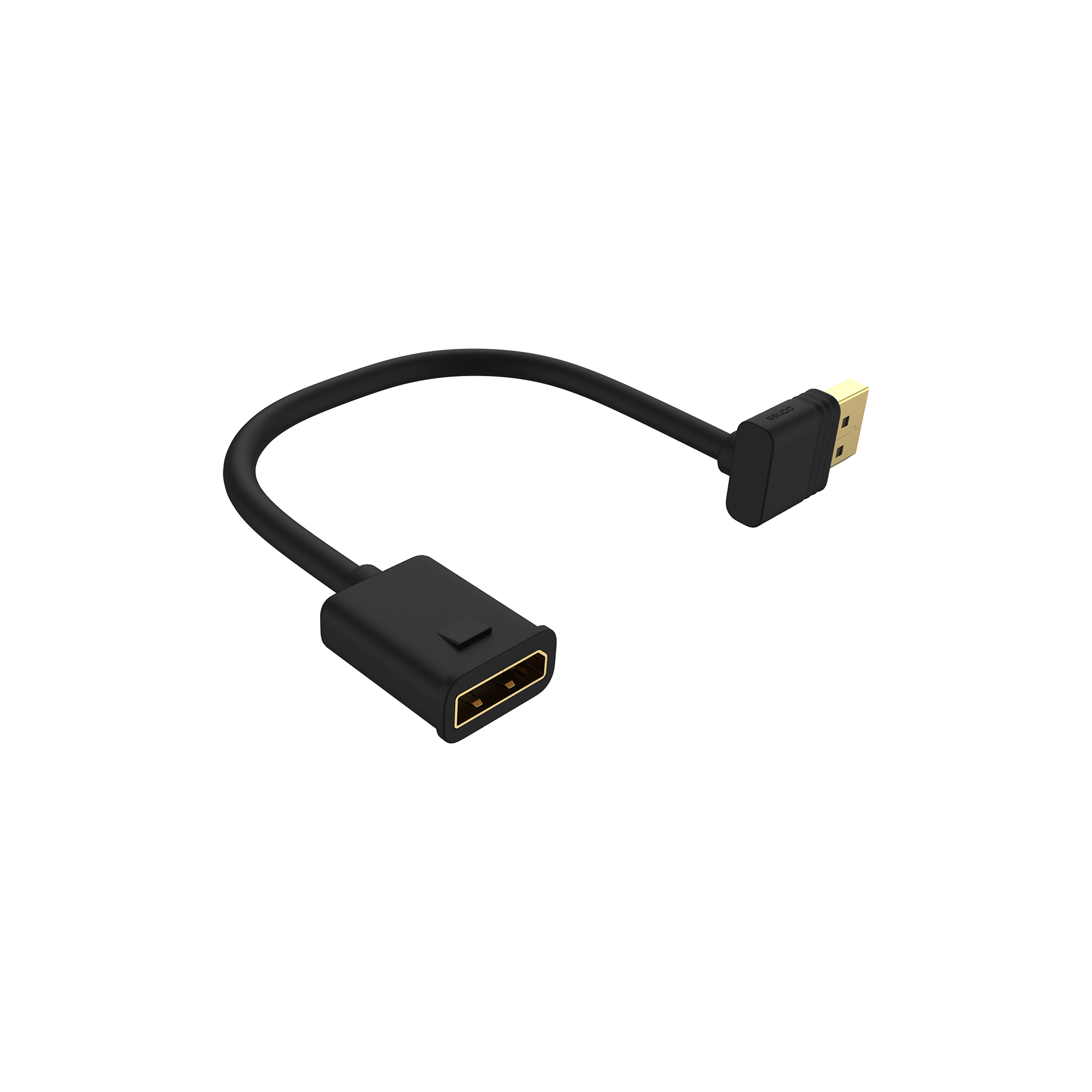

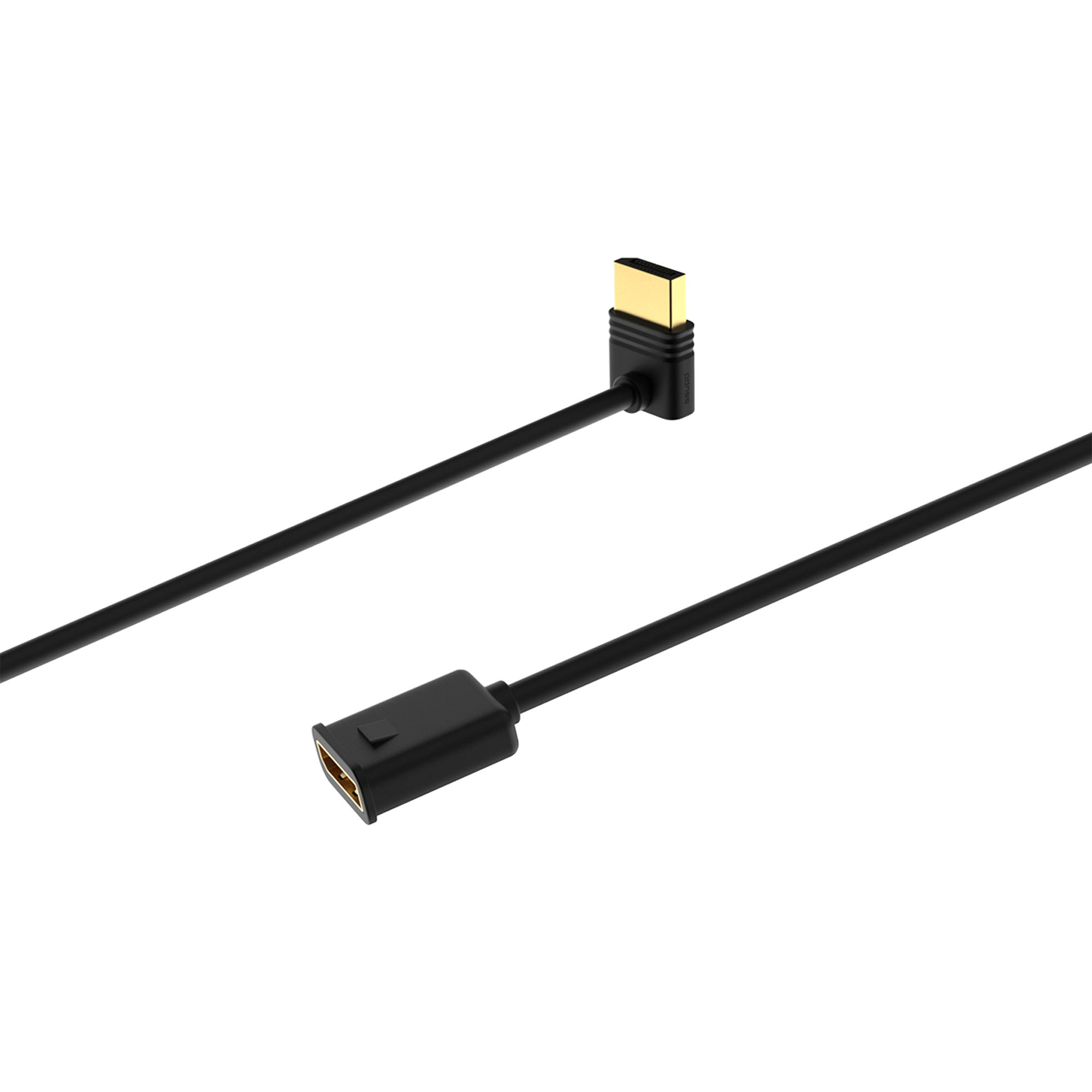

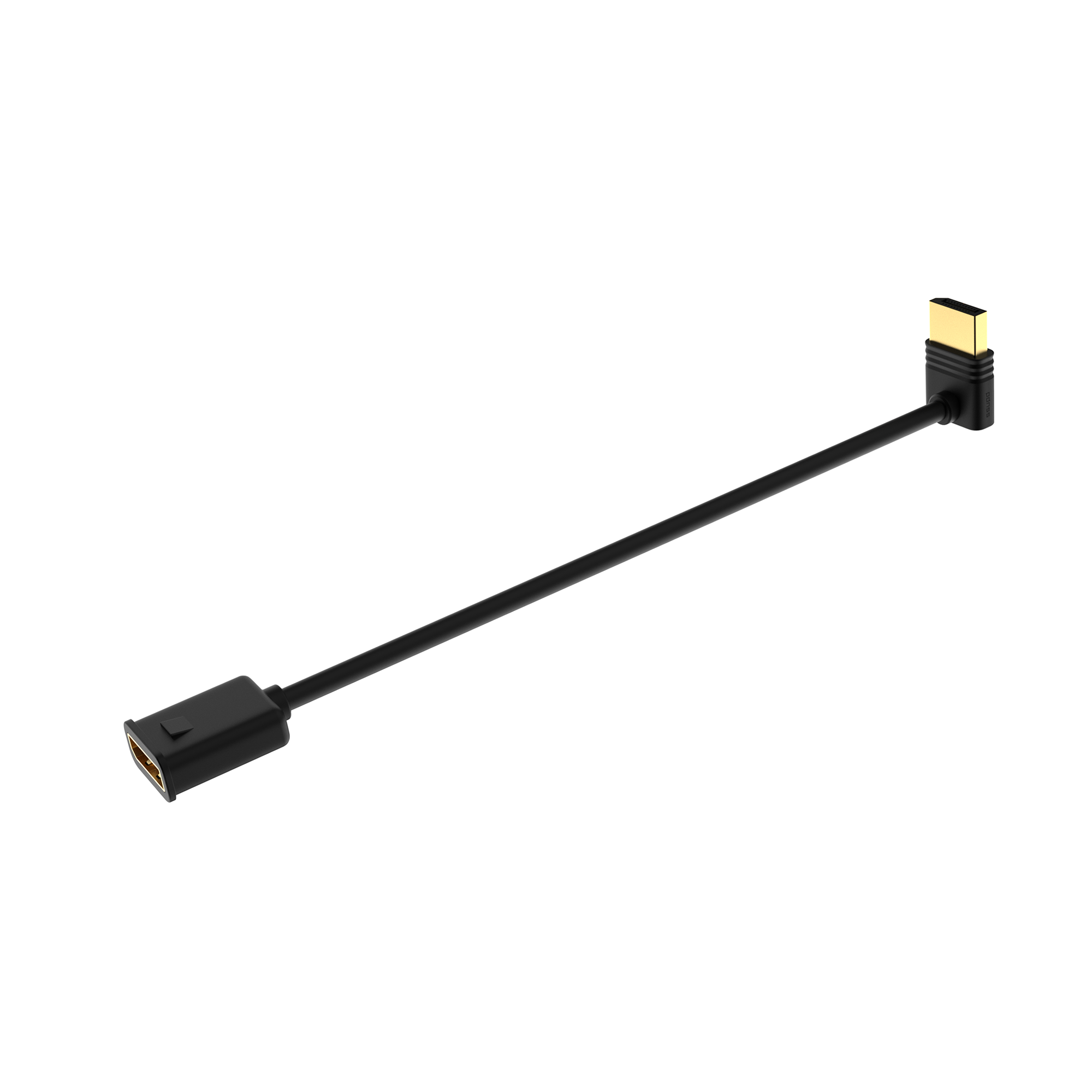

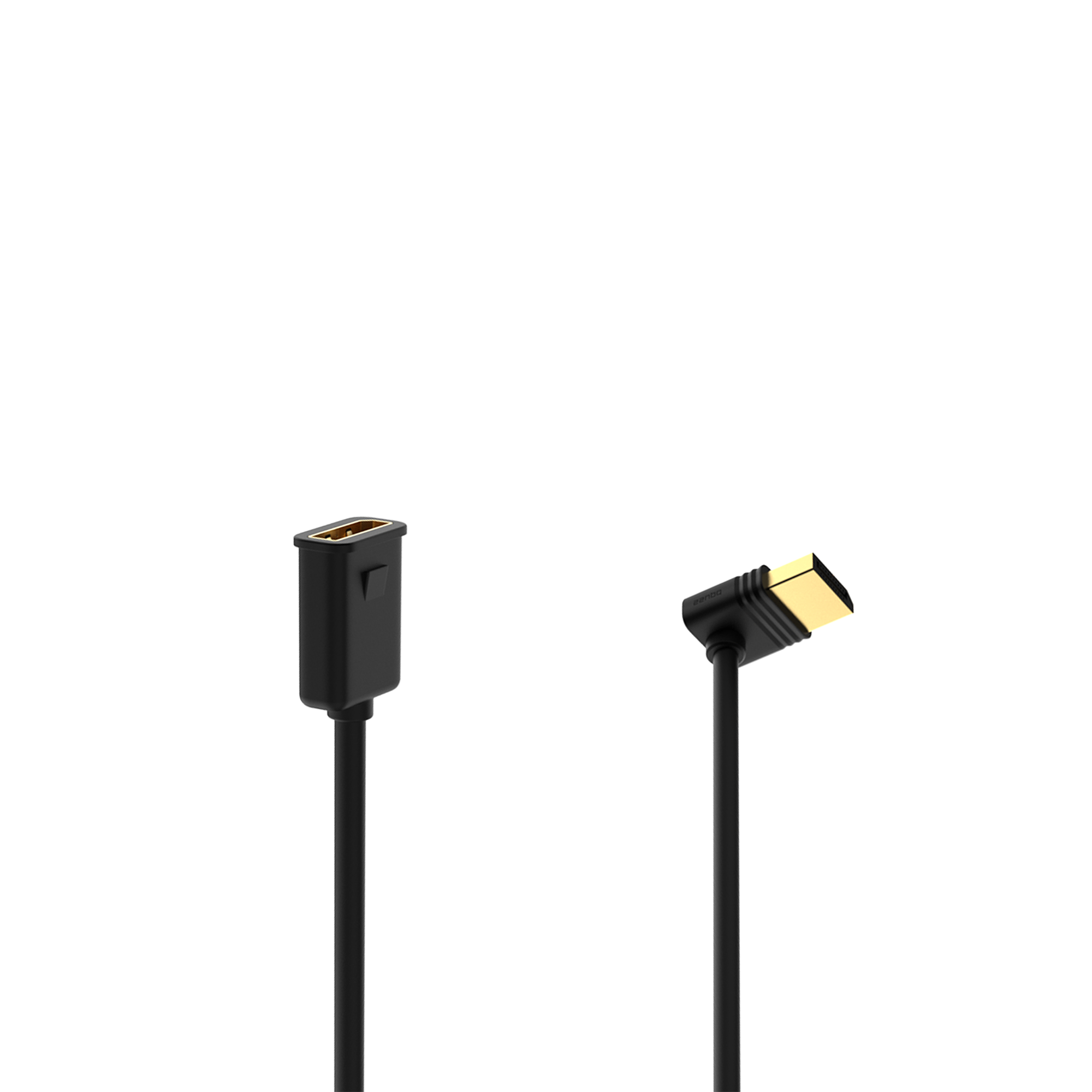

Male 90 degree up angle to female straight
Up angle connector dimensions
DP 1.4: 21 x 11 x 34 (height) mm
DP 1.4 Extension: 20 x 8 x 31 (height) mm
Straight connector dimensions
DP 1.4: 22 x 11 x 41 (height) mm
DP 1.4 Extension: 21 x 11 x 27 (height) mm
Package dimensions
160 x 140 x 30 mm
Warranty
1 year
Net weight
DP 1.4: 120 g
DP 1.4 Extension: 81 g
Gross weight
DP 1.4: 170 g
DP 1.4 Extension: 131 g
Package contents
Displayport extension cable
