스페이서 / PCI 마운트
-
Meshroom 및 Meshlicious 케이스와 함께 사용하도록 설계된 중간 트레이 스페이서는 상단 프레임과 중간 트레이에 부착되어 추가 슬롯 공간을 제공하므로 3개 또는 4개 슬롯 GPU 구성이 가능합니다.
- Meshroom 또는 Meshlicious 케이스용 교체 PCI 마운트입니다.
Identify the Parts
Motherboard Tray Spacer: No mounting holes; adjusts vertical clearance for the motherboard/GPU
GPU Mounting Strut: Aluminum post with through-holes; secures your graphics card to the chassis.

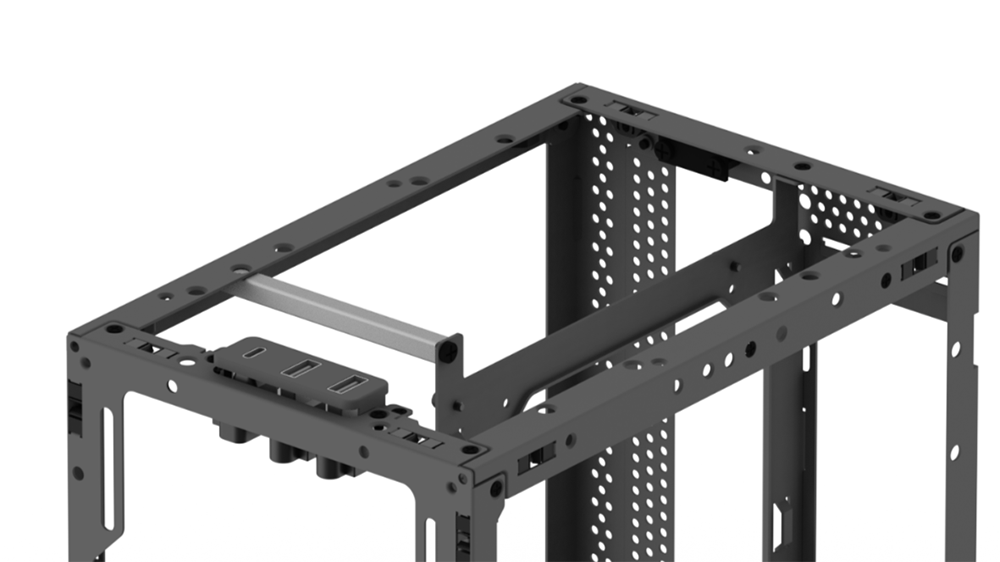

Default Motherboard Tray Spacer (87 mm)
The factory-installed spacer on the motherboard tray is 87 mm high (fits standard 3-slot GPU widths).

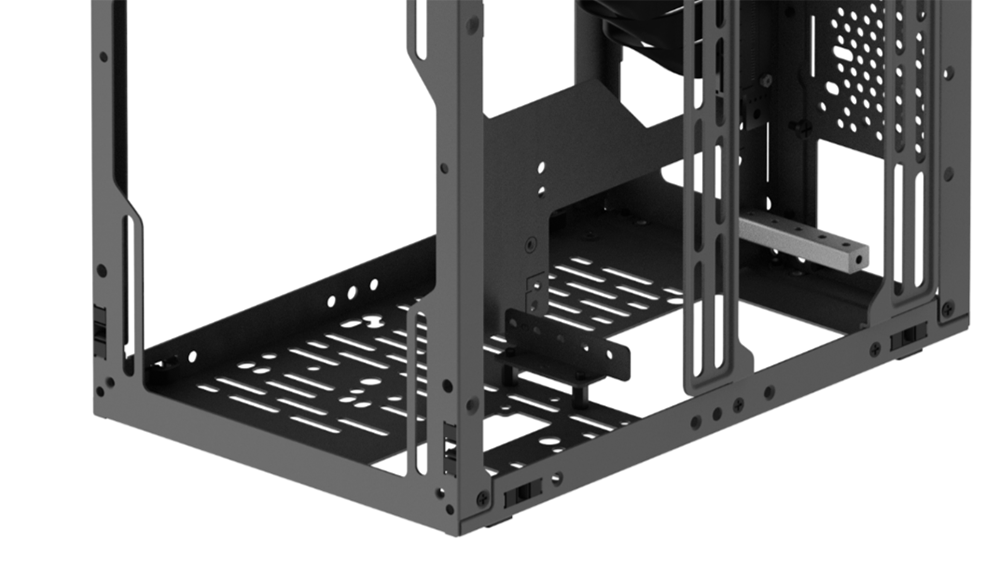

Default GPU Mounting Strut (75 mm)
The chassis comes pre-fitted with a 75 mm PCI-Mount that supports most graphics cards.

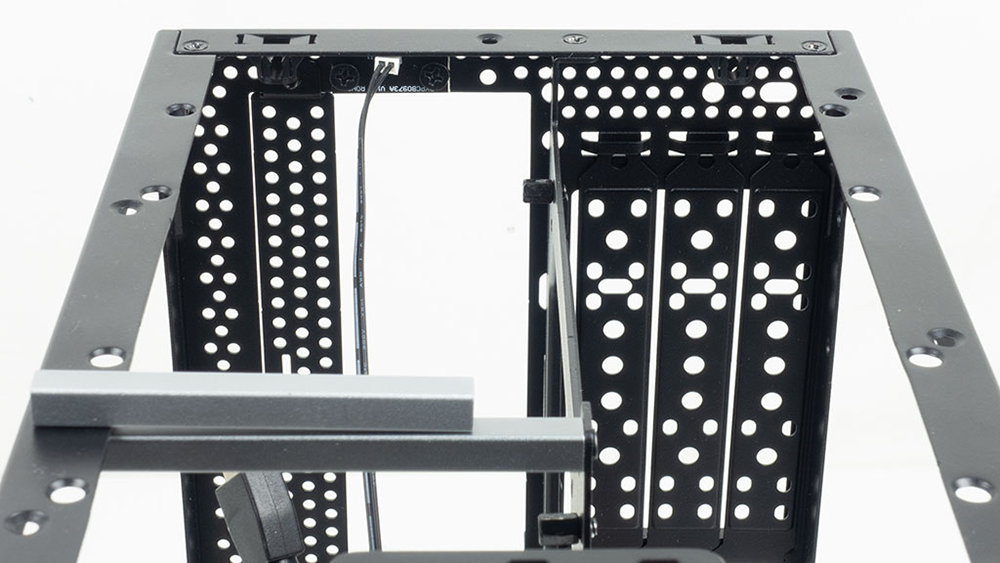

4-Slot Motherboard Tray Spacer
To accommodate a four-slot GPU or the alternate tray position, swap the 87 mm spacer for the 68 mm spacer included in your accessory kit.
Optional Short GPU Mounting Strut (60 mm)
- If your GPU’s DP/HDMI ports are too close to the rear bracket and interfere with the standard mount, replace the 75 mm strut with the 60 mm version.
- Because 60 mm strut is used infrequently, it is available separately through our official website accessories store to prevent unnecessary waste.
Compatibility Note: All Meshroom S and Meshlicious series models share the same spacer and strut system; only the accessory kit contents vary by chassis model.
