PCIe Riser Card

Sale price$30.00 USD
Size: 145mm
Type: PCIe 3.0 Dual Reverse
Introducing our riser cable, a vital component for any Meshroom S assembly. Designed for compatibility with ATX motherboards, it enables high-efficiency systems in sub-15L volume cases. Available in various lengths for different configurations, it ensures flexibility and playability, no matter the GPU size or motherboard dimensions. Transitioning from mid-tower to mini ITX cases is now seamless and stress-free, saving space and enhancing convenience. Experience true PCIe 4.0 performance, free from EMI interference, crashes, and dropped frames, thanks to shielded high-speed wires, dedicated power lines, gold-plated contacts, and a durable, flexible design.

    Build compact ATX system

    Compatible with ATX motherboard for Meshroom S, enabling high-efficiency systems in small volume cases under 15 liters.

    Various Lengths, Diverse Configurations

    Experience ultimate flexibility with our GPU riser cables, designed specifically for diverse Meshroom S configurations. Perfect for any assembly

    Downsize with Ease

    With the suitable riser cable, Meshroom S supports the installation of ATX motherboard and ATX power supply. Effortlessly downsize from mid-tower to mini ITX case, saving space while ensuring flexibility and convenience.

    Next Level of Stability and Performance

    Experience stable, lossless signal transmission with our shielded high-speed wires, dedicated power lines, and gold-plated contacts. Upgrade to a durable, flexible design that guarantees true PCIe 4.0 performance

    Specifications
    Cable width
    57 mm

    Cable length
    PCIe Gen 4.0: 145 mm, 175 mm, 270 mm, 385 mm, 440 mm;
    PCIe Gen 3.0: 210 mm, 175 mm, 270 mm, 385 mm, 440 mm
    PCIe standard
    PCIe Gen 4.0 / PCIe Gen 3.0

    Cable and bracket color
    Matte Black, black powder coated steel

    Compatibility
    PCIe length support ITX MB

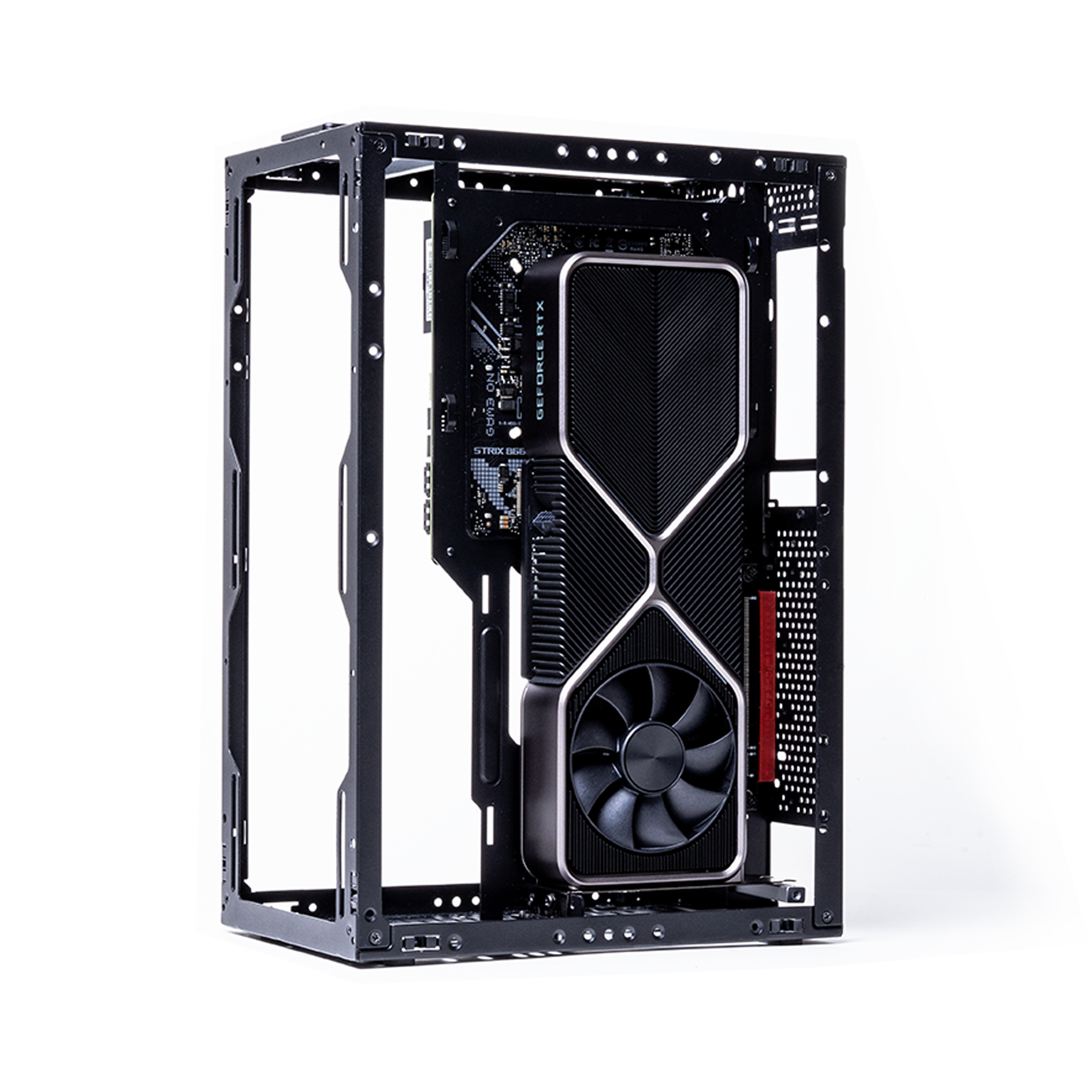

    With rear GPU intalled:

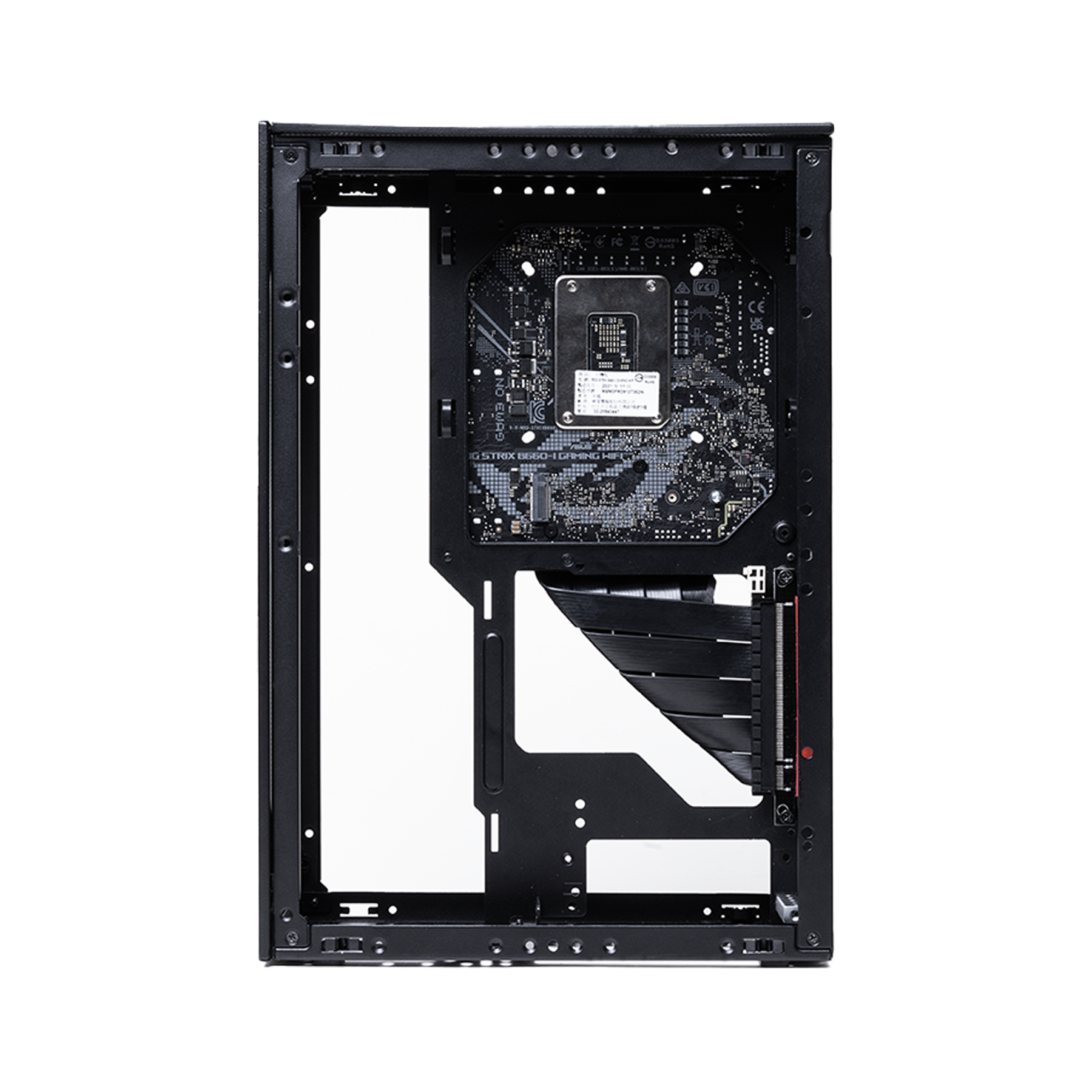

    145 mm (dual reverse), lowest position not available
    270 mm (direct)
    With horizontal SFF GPU intalled:
    210 mm (female reverse)
    270 mm (direct)

    PCIe length support ATX MB
    With rear GPU intalled:
    385 mm (female reverse)
    440 mm (female reverse)
    With horizontal SFF GPU intalled:
    270 mm (direct)


    GPU max length in ITX build
    With rear GPU intalled:
    145 mm (dual reverse): 332 mm length and 152 mm width in 4 slots (82mm)
    270 mm (direct): 353 mm length and 152 mm width in 4 slots (82mm) with extra feet
    With horizontal SFF GPU intalled:
    210 mm (female reverse) and 270 mm (direct): 212 mm length in 3 slots (61 mm) with front fan only



    GPU max length in MATX/ATX build with horizontal SFF GPU intalled
    Support MATX: 385/440 mm (female reverse): 239 mm length in 3 slots (61 mm) Support ATX: 440 mm (female reverse): 239 mm length in 3 slots (61 mm)
    PCIe length support MATX MB
    With rear GPU intalled:
    385 mm (female reverse)
    440 mm (female reverse)
    With horizontal SFF GPU intalled:
    175 mm (direct)
    270 mm (direct)

    PCIe length support MATX/ATX MB with horizontal SFF GPU intalled
    Support MATX:
    385 mm (female reverse)
    440 mm (female reverse)
    Support ATX:
    440 mm (female reverse)

    GPU max length in MATX/ATX build
    With rear GPU intalled:
    175/270 mm (direct): 314 mm length and 120 mm width in 3 slots (62 mm);
    175/270 mm (direct): 325 mm length and 120 mm width in 3 slots (62 mm) with extra feet
    With horizontal SFF GPU intalled:
    385/440 mm (female reverse): 332 mm length and 152 mm width in 4 slots (82mm)
    385/440 mm (female reverse): 353 mm length and 152 mm width in 4 slots (82mm) with extra feet

    Note
    *GPU baffle not included in length and PCIe power connectors need 15-20 mm space

    General
    Dimensions (L x W x H)
    145mm x 145mm x 33mm

    Net weight
    145 mm : 54 g
    175 mm : 62 g
    210 mm : 68 g
    270 mm : 67 g
    385 mm : 83 g
    440 mm : 87 g

    Warranty
    1 year
    Package dimensions (L x W x H)
    225mm x 145mm x 35mm

    Gross weight
    145 mm : 109 g
    175 mm : 117 g
    210 mm : 123 g
    270 mm : 121 g
    385 mm : 137 g
    440 mm : 141 g

    Package contents
    PCIe riser cable
