Extender Bracket

$40.00 USD

Color: Black

Description

***Note***

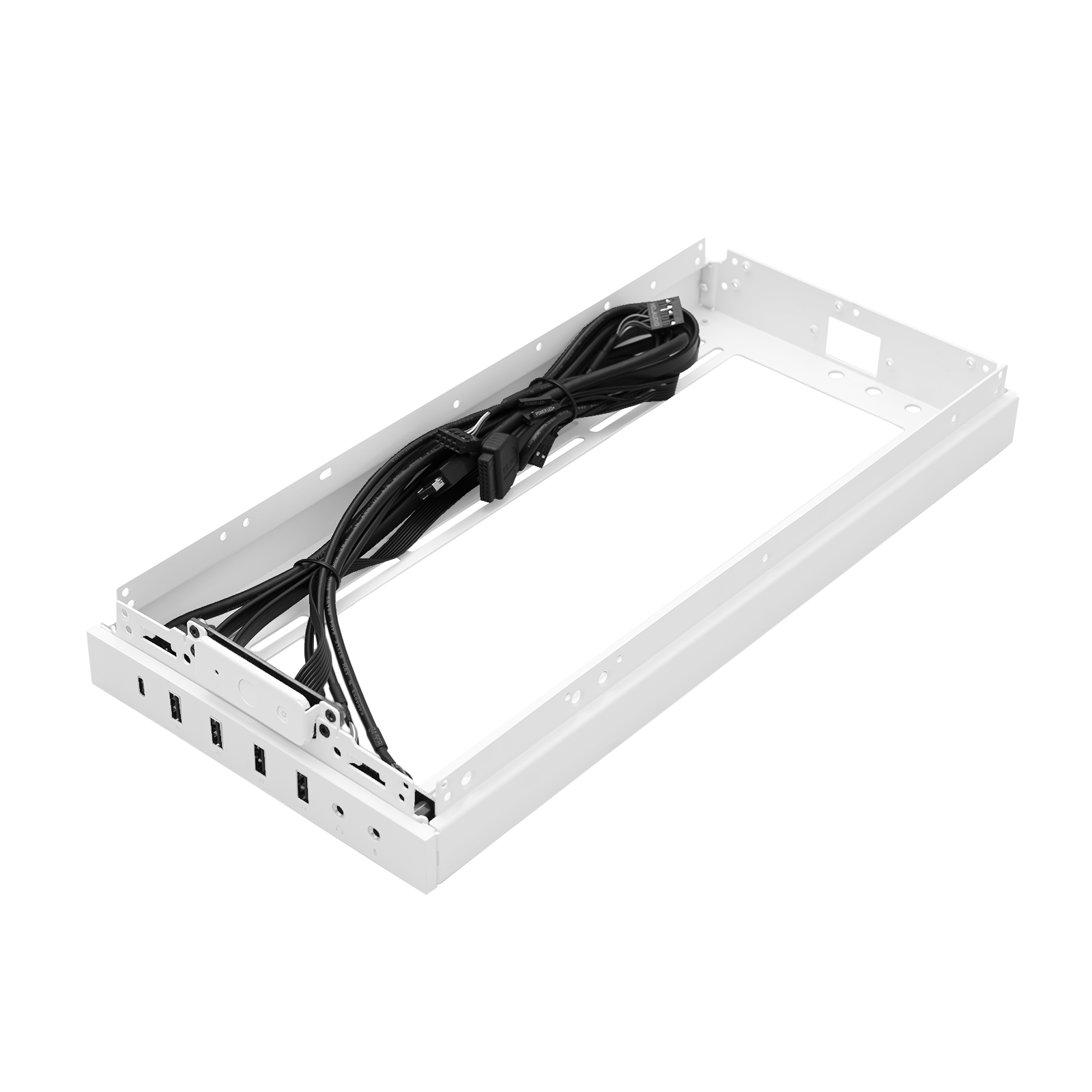

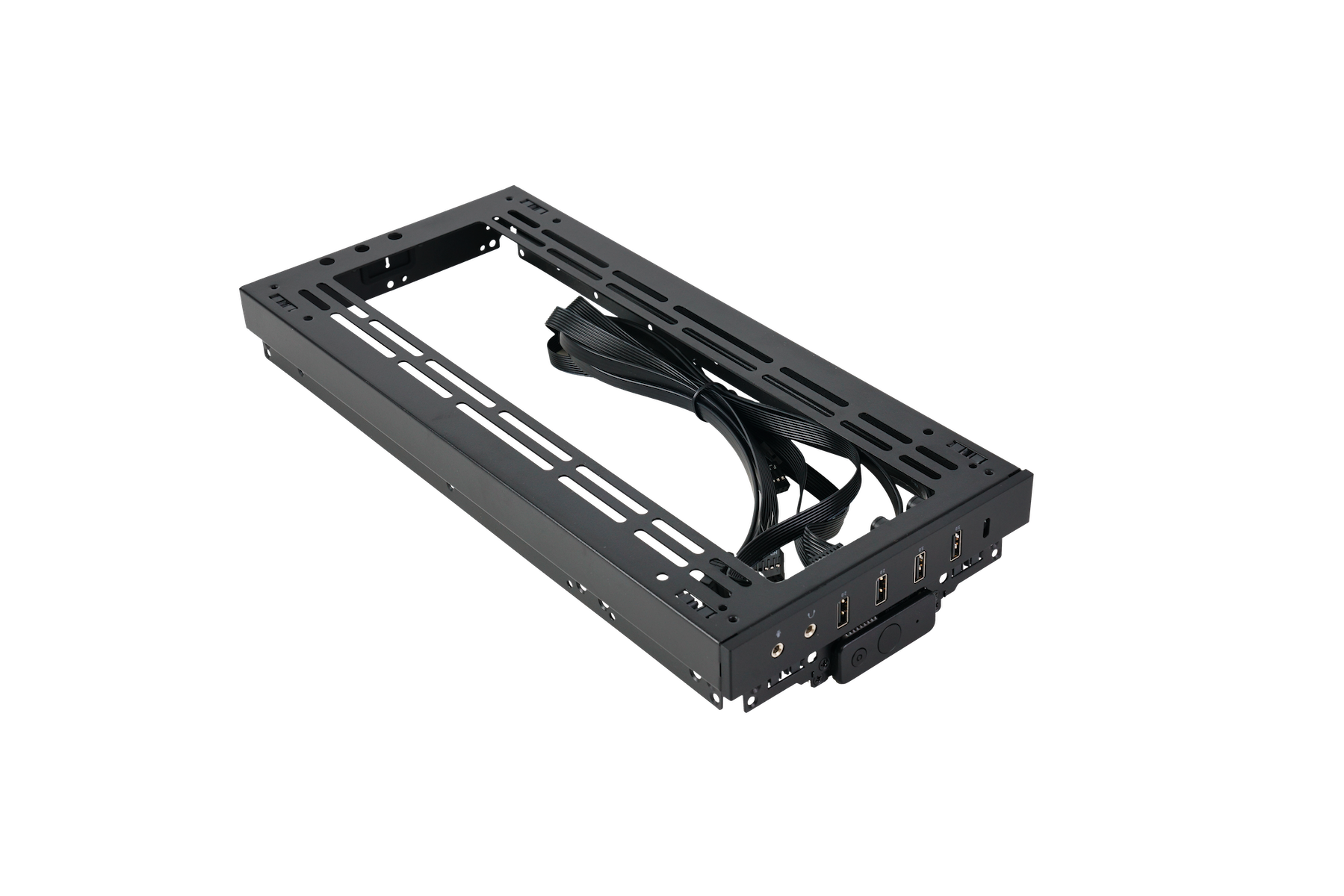

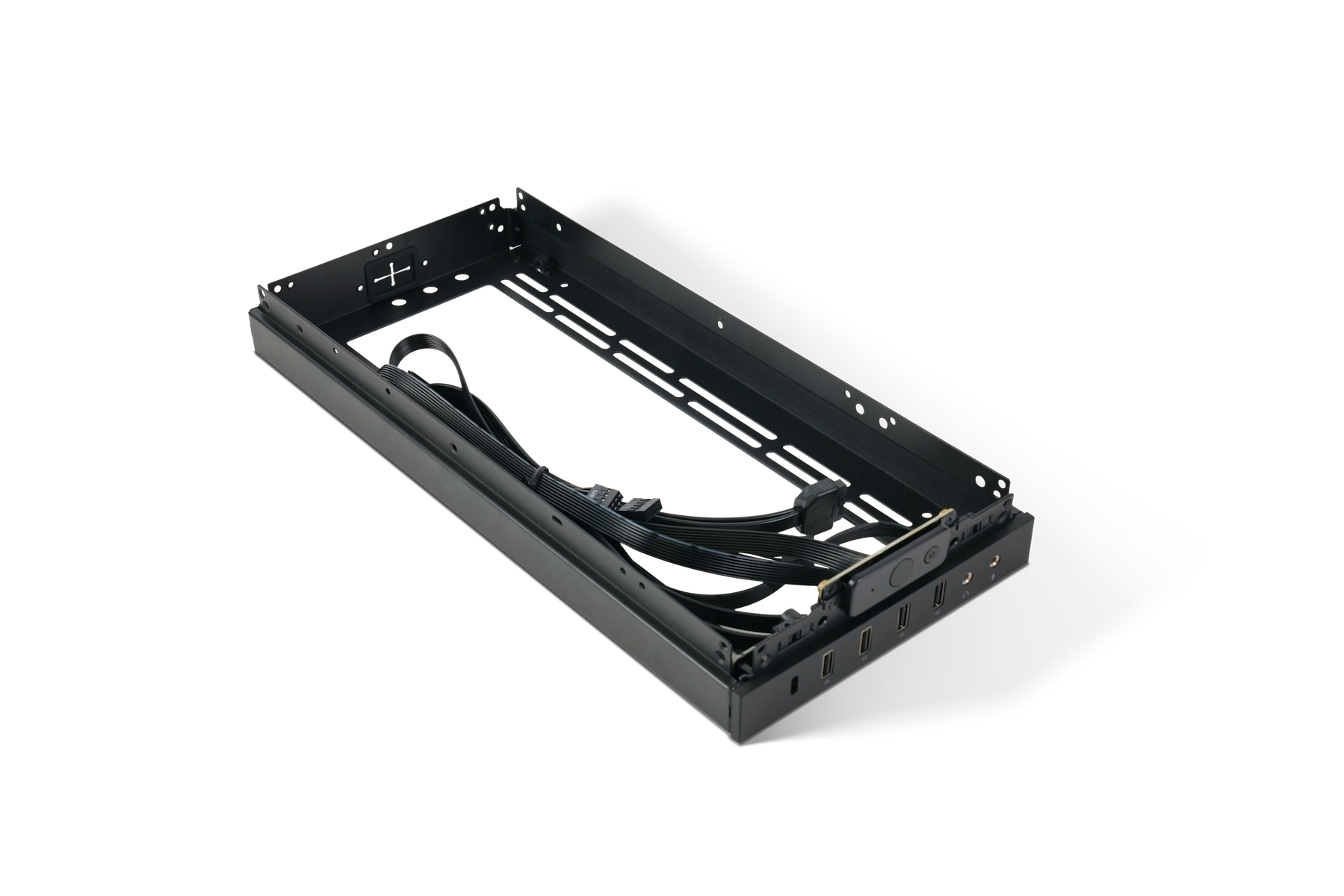

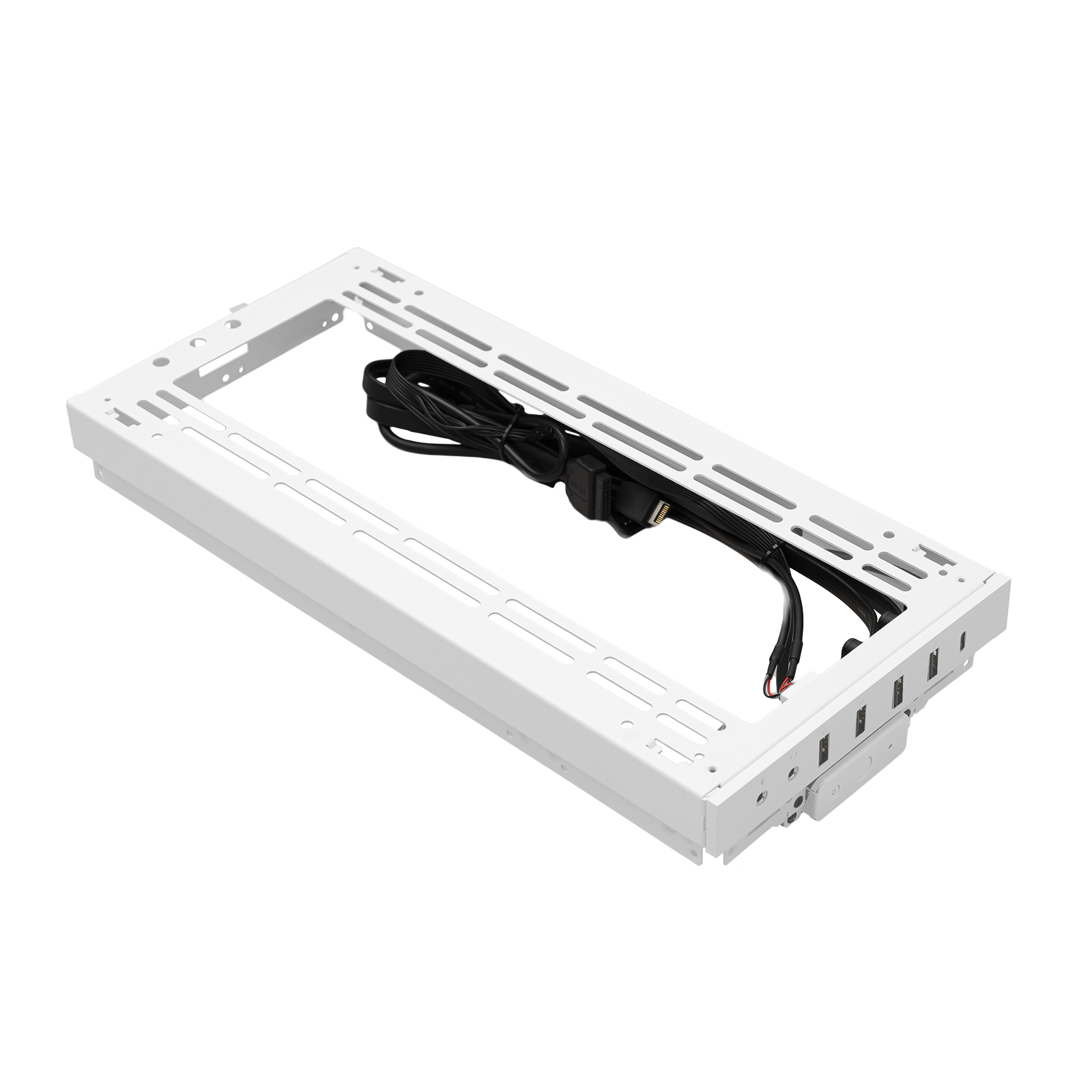

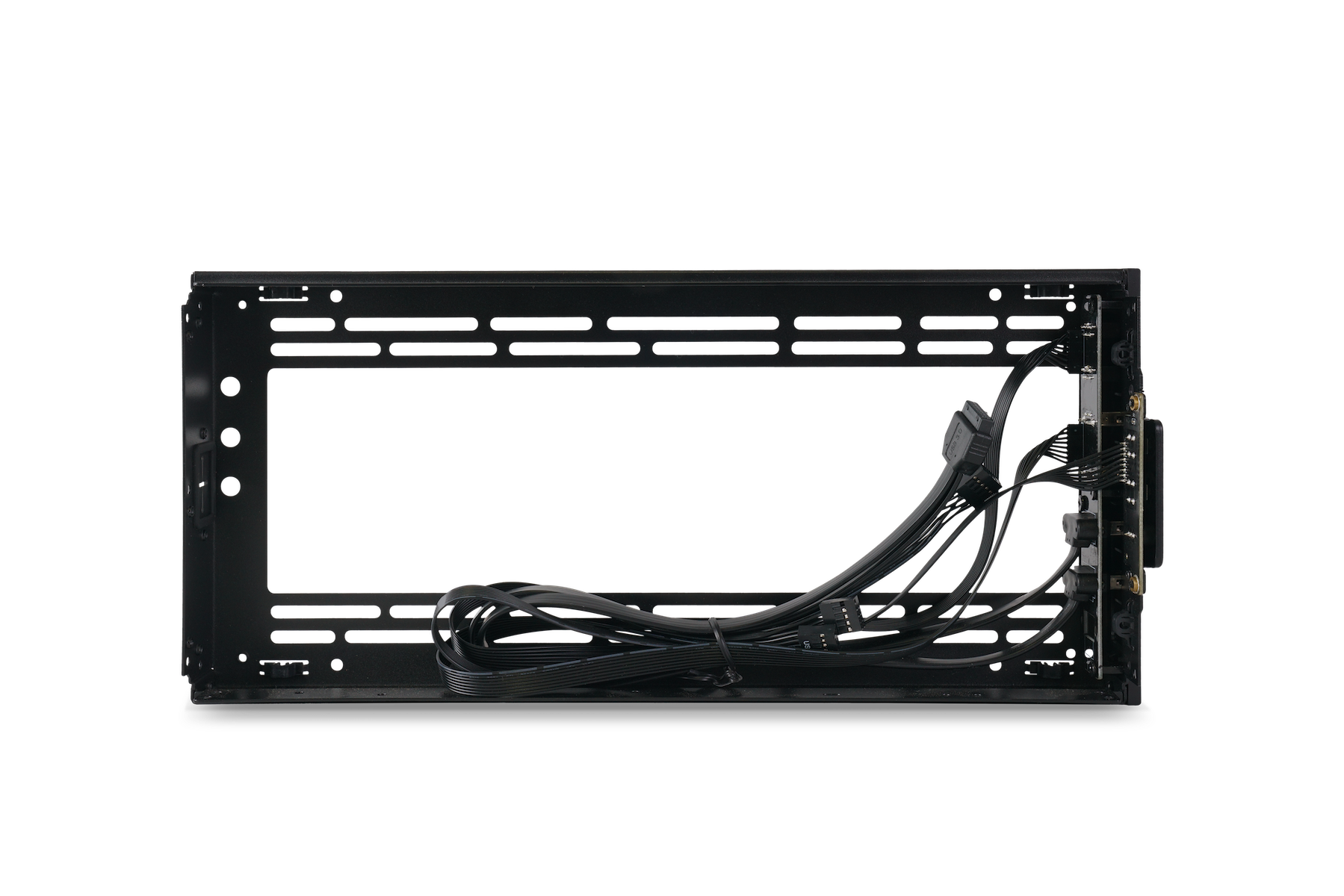

Meshroom Extender Bracket is only compatible with Meshroom S V2 and Meshroom D.
USB C and USB 3.0 Ports is not included in the extender bracket, needs to use ports included in Meshroom S V2 or Meshroom D

Transform your PC setup with the Meshroom Extender Bracket, meticulously designed for seamless integration while amplifying its capabilities. Enjoy diverse installation configurations with ITX and MATX motherboard compatibility in Meshroom D. Accommodate a 240/280mm water cooling radiator with a fan thickness of up to 88mm in the Meshroom S front. Enhance flexibility for tubing layout and pump installation by freeing up internal space with the Meshroom extension bracket. Experience versatile connectivity with five USB ports, including a high-speed Type-C 3.1 Gen 2 (10GBps) and dual audio jacks.

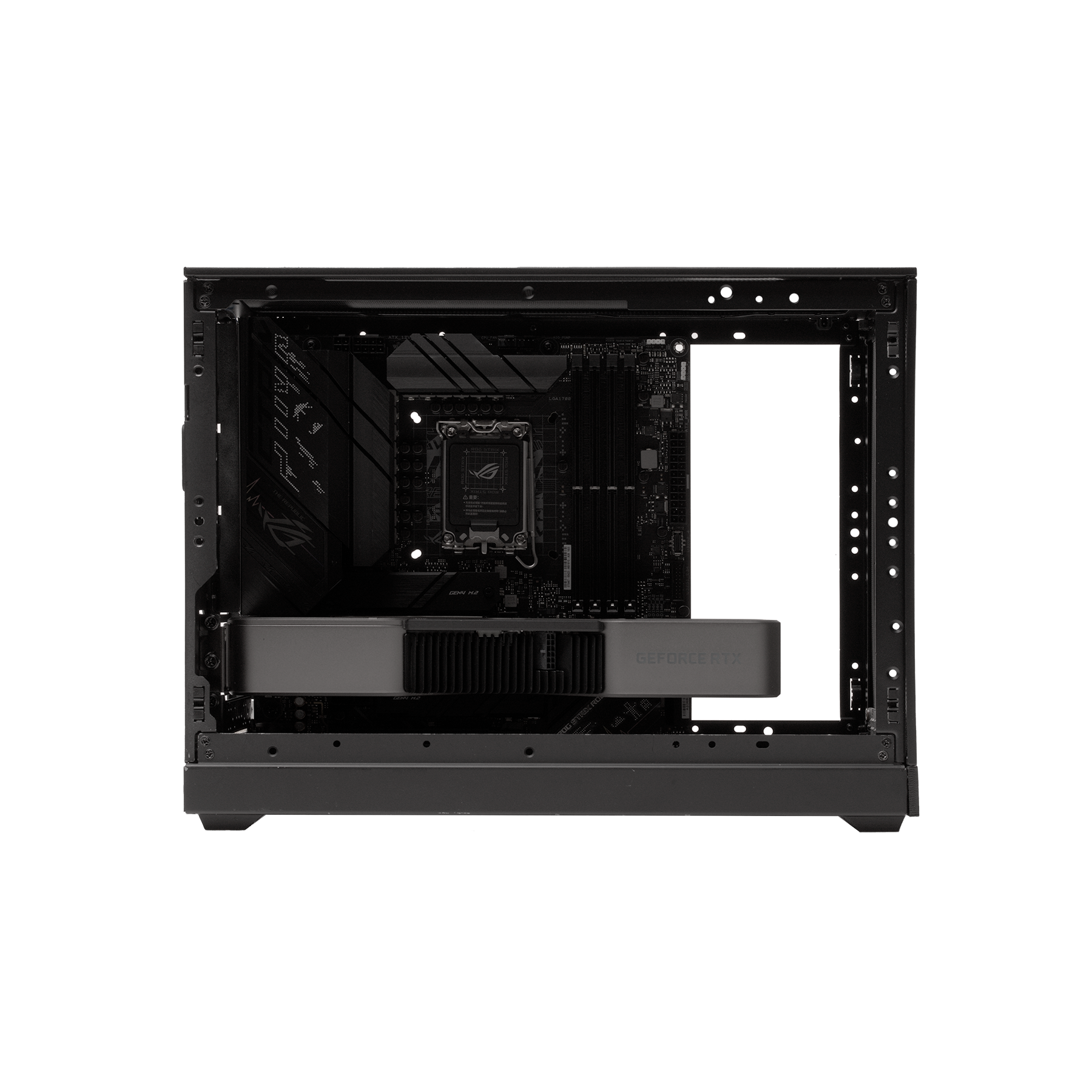

Support MATX motherboard

Compatible with ITX and MATX motherboards in Meshroom D for diverse installation configurations.

Cool in the Front

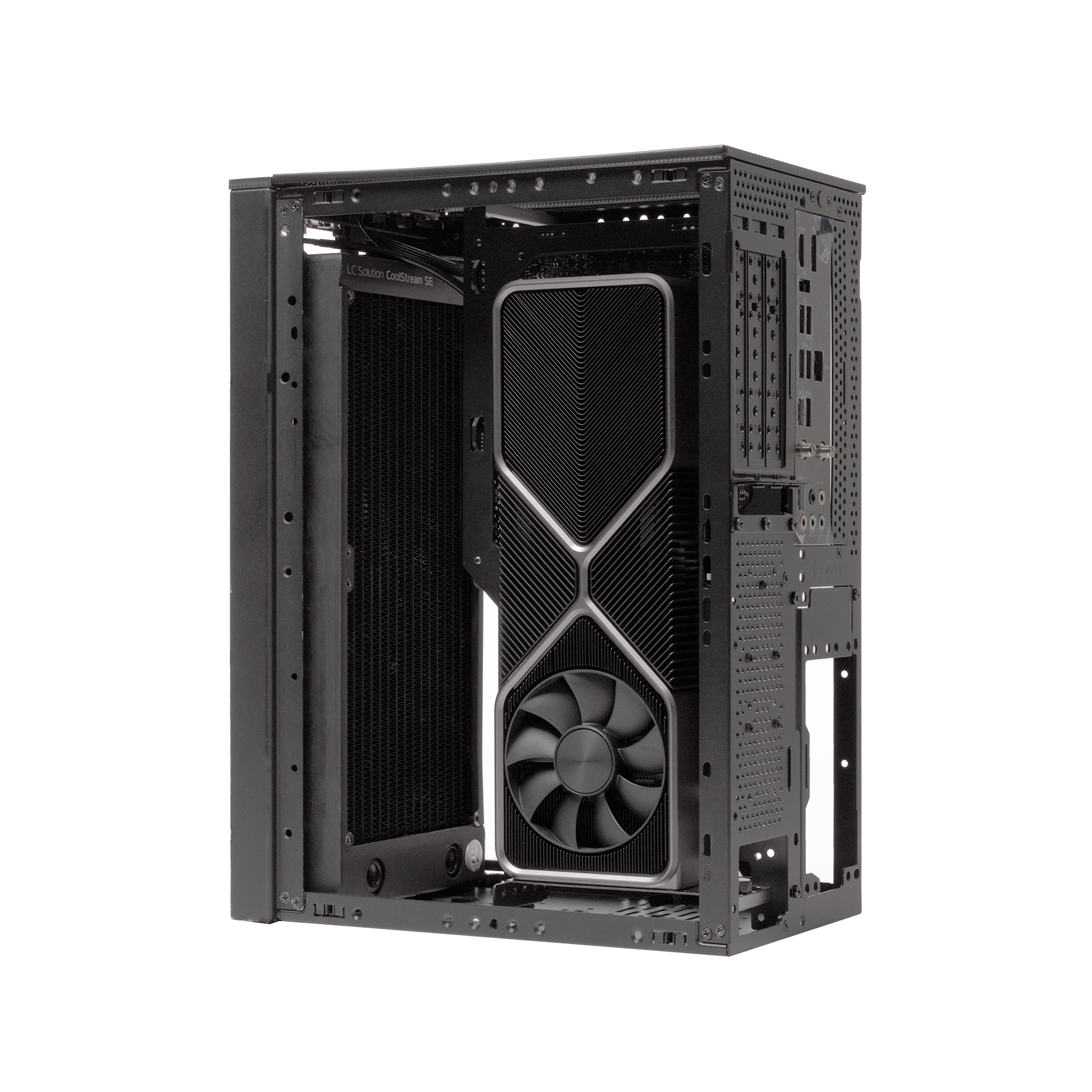

The front of the Meshroom S accommodate a 240/280mm water cooling radiator with fans thickness up to 88mm.

Easy access for custom loop

Installing the extension bracket frees up internal space, bringing higher flexibility for tubing layout and pump installation.

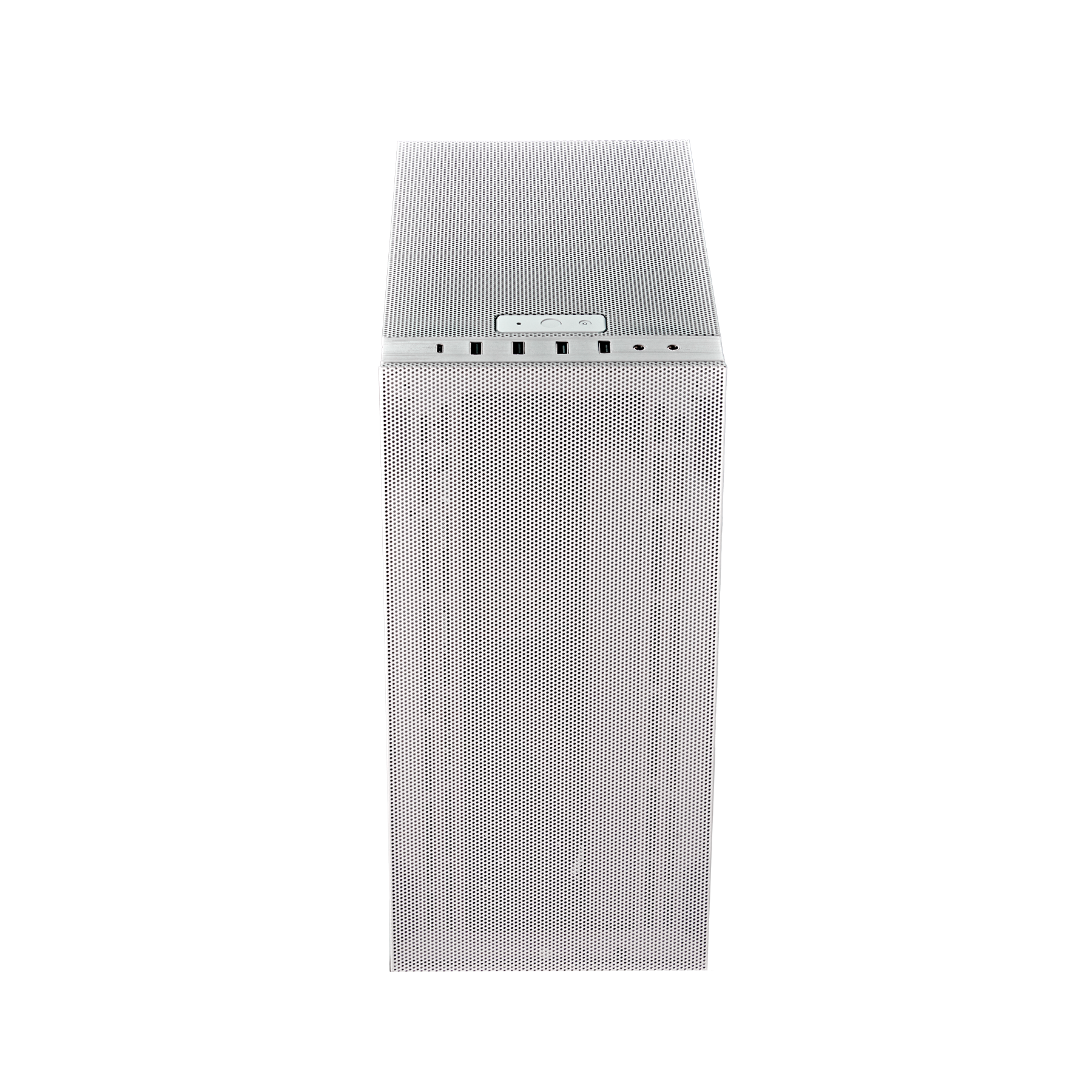

Connect More and Faster

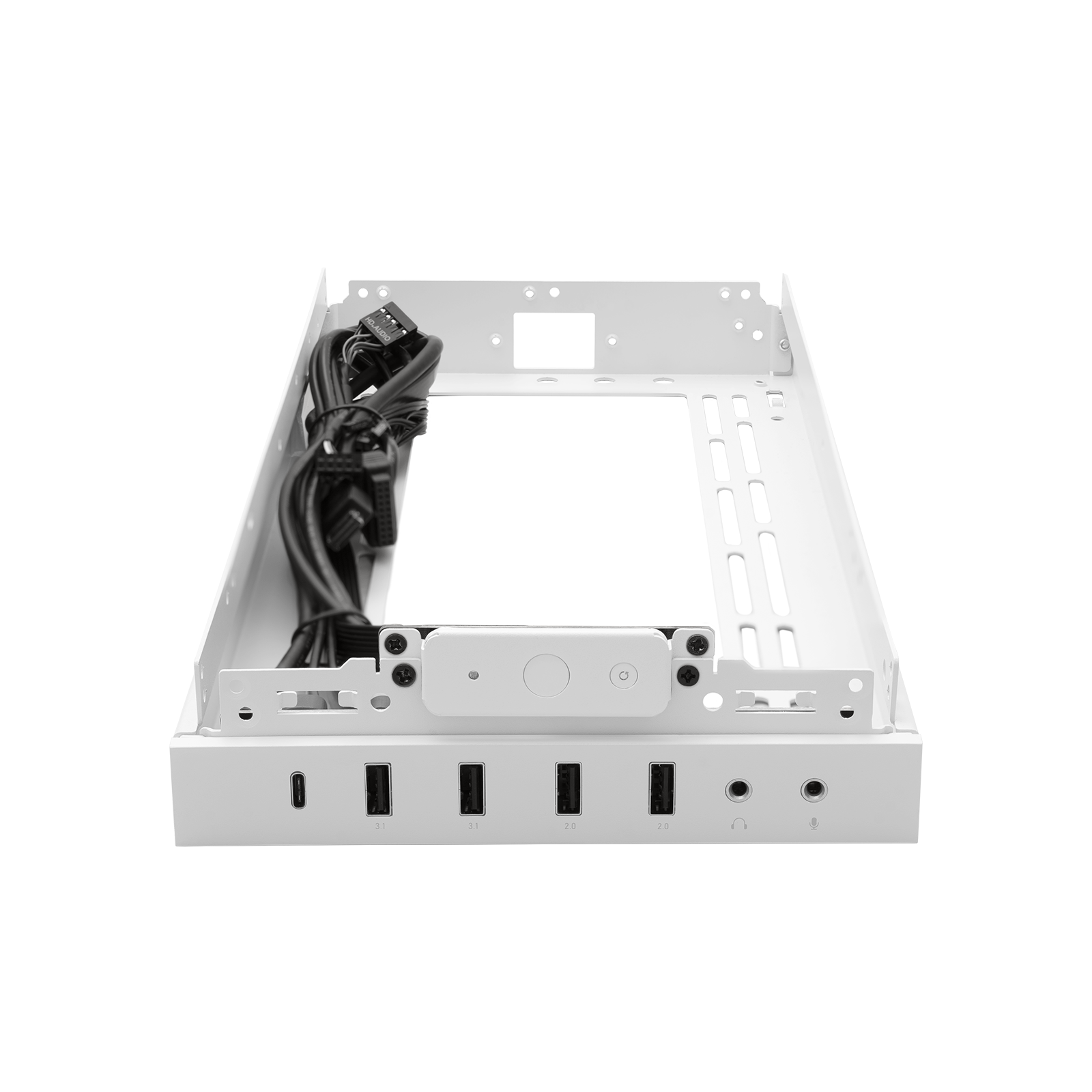

Featuring five USB ports with high-speed Type-C 3.1 Gen 2 (10GBps) and dual audio jacks, provide convenient and versatile connectivity

Specifications

Front IO ports

1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, 1 x audio jack, 1 x mic jack

Front power switch

1 x power button, 1 x reset button

Compatibility

Motherboard support with Meshroom S

Mini-ITX, Mini-DTX, M-ATX, ATX

GPU max length with Meshroom S

Vertical front GPU in 3 slots (62 mm):
314 mm length and 145 mm width;
325 mm length and 145 mm width with extra feet
Vertical front GPU in 2.8 slots (57mm):
314 mm length and 149 mm width;
335 mm length and 149 mm width with extra feet
Vertical rear GPU in 3 slots (63mm):
332 mm length and 170 mm width;
353 mm length and 170 mm width with extra feet
*GPU baffle not included in length and PCIe power connectors need 15-20 mm space

Front radiator with Meshroom S

240/280 mm support max 332 mm length, 144 mm width, 88 mm thickness with fans

Motherboard support with Meshroom D

Mini-ITX, Mini-DTX, M-ATX

GPU max length with Meshroom D

With 3 slots (61 mm):
325 mm length and 140 mm width;
336 mm length and 140 mm width (front I/O ports removed)
With 4.6 slots (94 mm):
325 mm length and 136 mm width;
337 mm length and 136 mm width (front I/O ports removed)
*GPU baffle not included in length and PCIe power connectors need 15-20 mm space

Bottom radiator with Meshroom D

55 mm thickness of 240/280 mm radiator + fans allow GPU in 41 mm thick;
60 mm thickness of 240/280 mm radiator + fans allow GPU in 36 mm thick;
65 mm thickness of 240/280 mm radiator + fans allow GPU in 31 mm thick

General

Dimensions (L x W x H)

362 mm x 167 mm x 40 mm

Net weigh

576 g

Warranty

1 year

Package dimensions (L x W x H)

420mm x 175mm x 94mm

Gross weight

695 g

Package contents
