Meshlicious

Sale price$59.99 USD

color: Black
Type: Full Mesh PCI 3.0

Type

Condition: Acceptable

Condition

Breathable, mesh panels enables higher airflow and better cooling.

Well ventilated

Large GPU Support

Supported latest high power required GPU with 4-slots Space. Prepare for the future.

280mm Radiator Supported

Support a wide range of radiators up to 280mm in small form factor

Keep It Cool By Design

High airflow, small form factor enclosure designed to keep your high-end components cool and chill.

ATX PSU supported

Compatible with both ATX & SFX PSU, supported high watts Power supply in compact size.

Support Up To 2 x HDD And 4 x SSD Hard Drives.

Supports up to two 3.5" HDD or four 2.5" SSD hard drives

Specifications
Expansion slots
Full Length GPU : Up to 4 slot; Small Form Factor GPU : 3 slot
Front fan
2x 120 mm or 2x 140 mm
Tempered glass version side panel
One tempered glass panel (3mm thick) and one mesh panel (1mm thick)
3.5” drive support
Up to 2 x 3.5” HDD (with Small Form Factor GPU)
Front ports
1x USB 3.0; 1x Type-C 3.1 Gen 2; Power LED
Tool-less push-to-lock
Both side, Top side, and Front side Panels
Full mesh version side panel
Two mesh panels (1mm thick)
2.5” drive support
2 x 2.5” SSD (with full length GPU & ATX PSU) / 3 x 2.5” SSD (with full length GPU & SFX PSU) / 7 x 2.5” SSD (with SFF GPU & SFX PSU)
Compatibility
Motherboard compatibility
Mini ITX / Mini-DTX (need additional 20cm PCIe riser cable)
Front radiator
120 / 140 / 240 / 280 mm (Up to 320mm length, 143 mm width, 63 mm thickness with fans, dependent on GPU position / type)
GPU max length
Full length GPU: 4 slots mode up to 336mm length(GPU Baffle not included), 346mm length(GPU Baffle included )/ 3 slots mode up to 332mm length(GPU Baffle not included), 342mm length(GPU Baffle included) and 155 mm tall; small form factor GPU: Up to 211 mm length (without radiator)
Power supply type
ATX, SFX-L, SFX
PSU max length
170mm ATX PSU (with front fan only) / up to 160mm ATX PSU (with upward tubing AIO) / 140mm ATX PSU (with downward tubing AIO)
CPU cooler max height
3 slots GPU mode: Up to 73mm Height / 4 slots GPU mode: 53mm Height
Dimensions
Case dimensions (L x W x H)
245 mm x 166.4 mm x 360 mm
Net weigh
Tempered glass version – 3.7 kg. Full mesh version – 3.6 kg.
Package dimensions (L x W x H)
415 mm x 220 mm x 310 mm
Volume
14.67 liters

You may also like

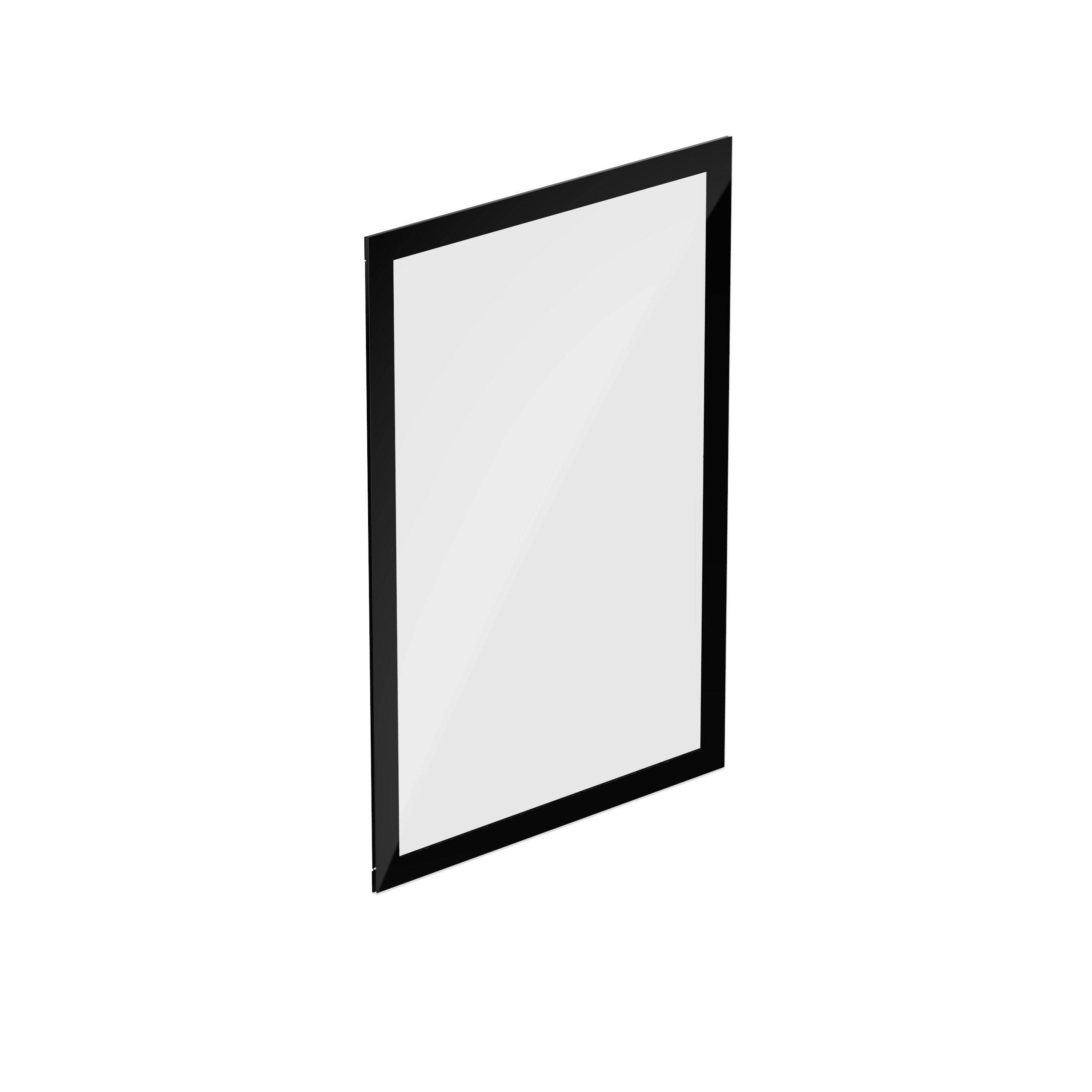

Meshlicious Tempered Glass PanelMeshlicious Tempered Glass Panel
Meshlicious Tempered Glass Panel Sale priceFrom $20.00 USD
Color
Meshroom S V2Meshroom S V2
Meshroom S V2 Sale priceFrom $59.99 USD
Color +2

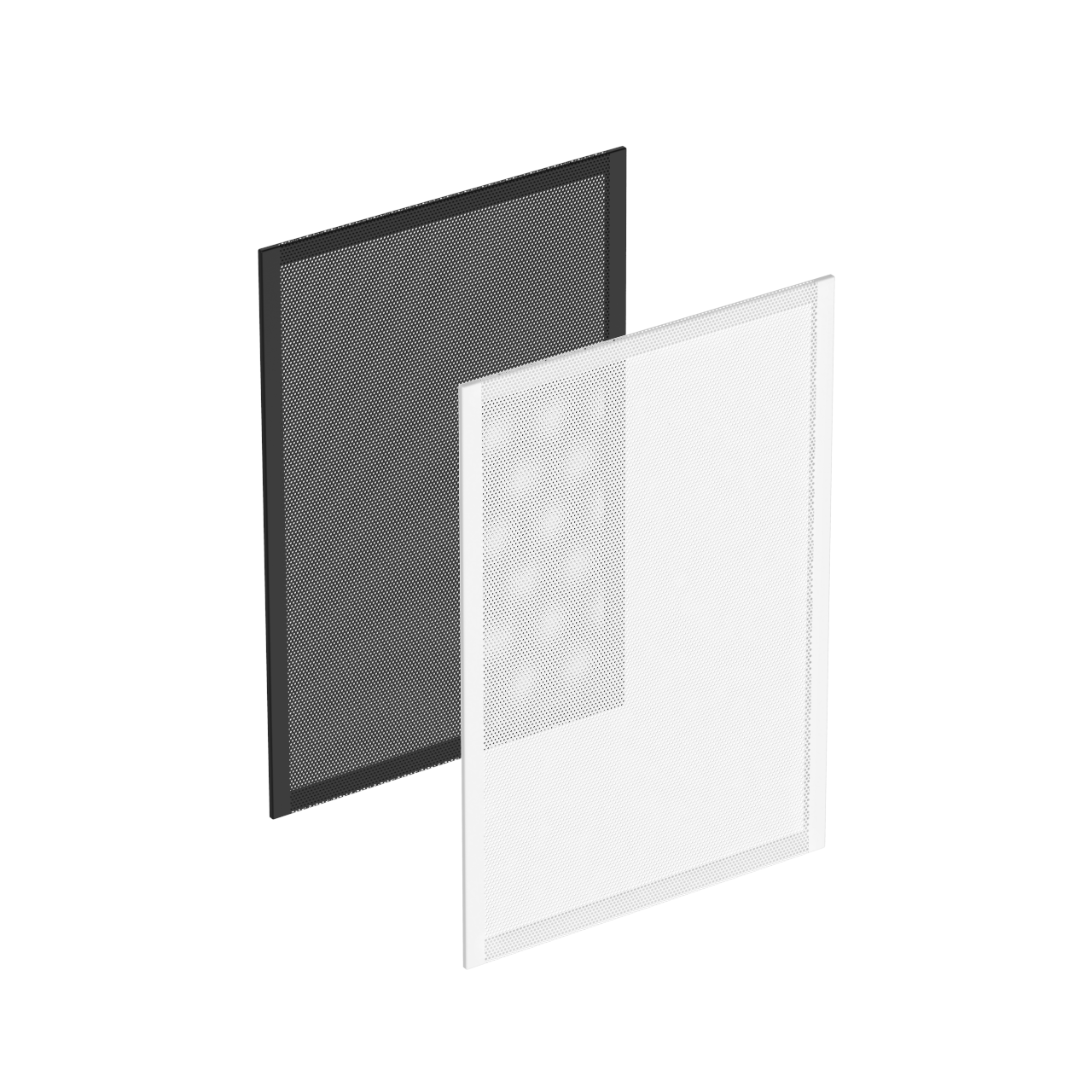

Meshlicious Mesh PanelMeshlicious Mesh Panel
