Expansion Bracket
***Note***
Meshroom Extender Bracket is only compatible with Meshroom S V2 and Meshroom D.
USB C and USB 3.0 Ports is not included in the extender bracket, needs to use ports included in Meshroom S V2 or Meshroom D

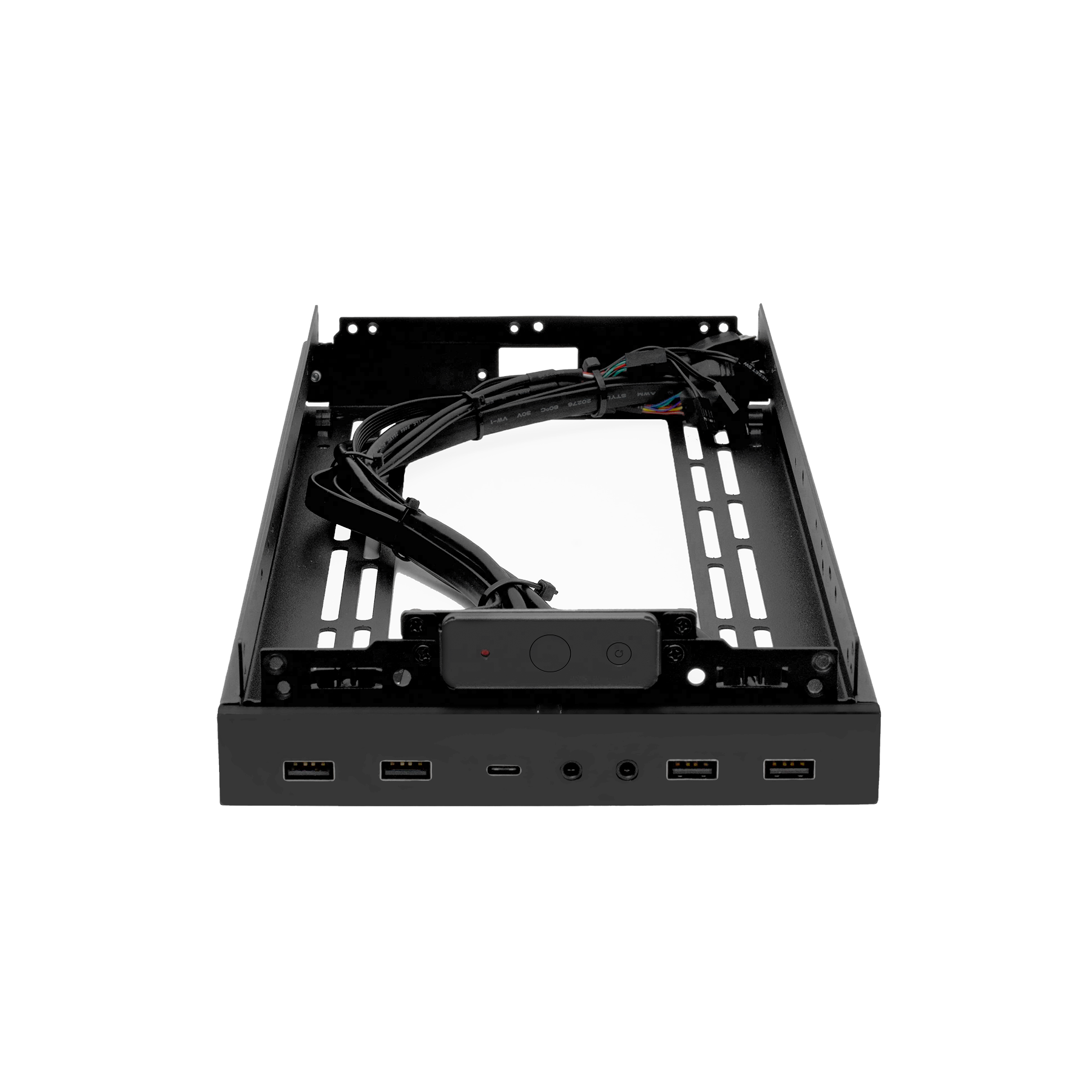

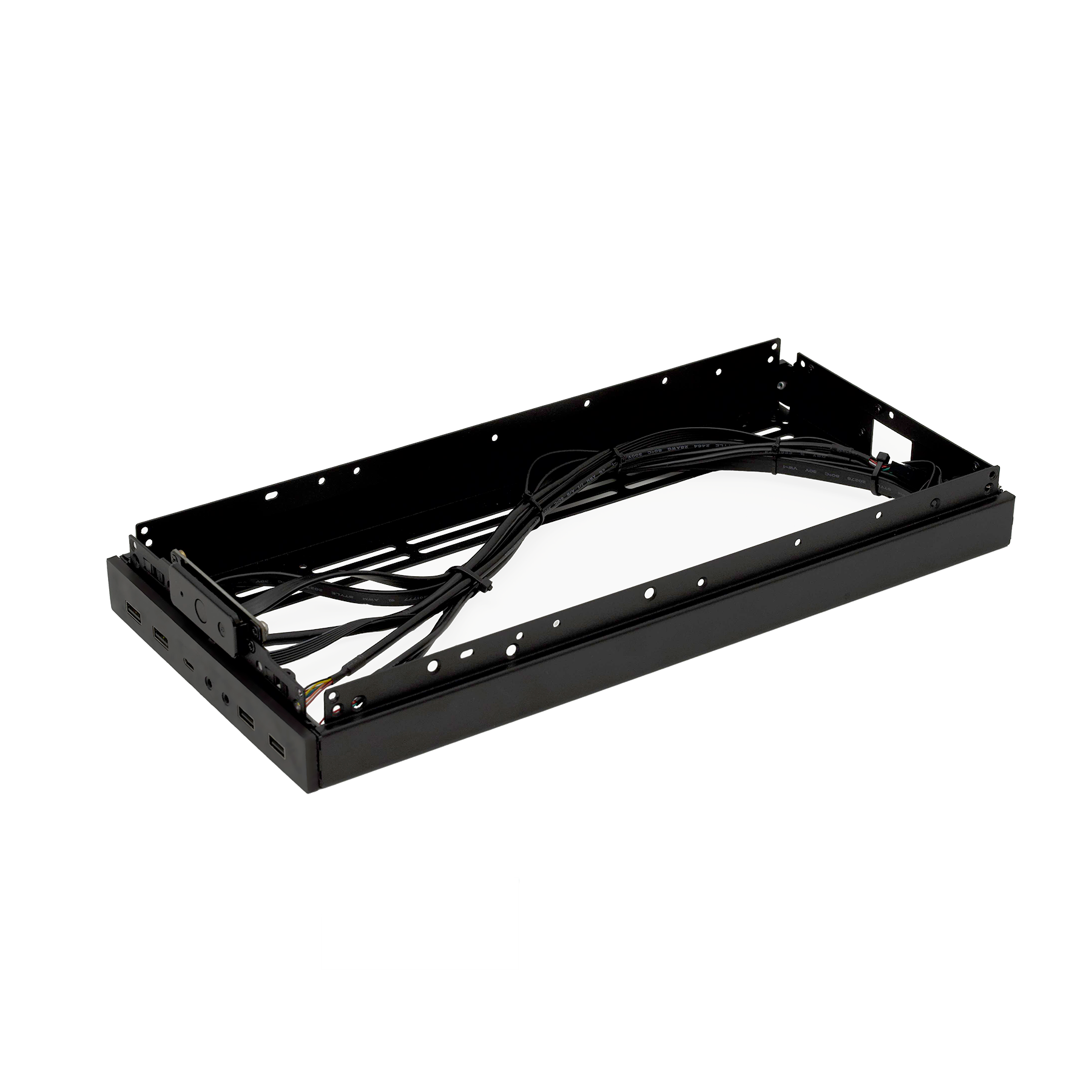

Transform your PC setup with the Meshroom Extender Bracket, meticulously designed for seamless integration while amplifying its capabilities. Enjoy diverse installation configurations with ITX and MATX motherboard compatibility in Meshroom D. Accommodate a 240/280mm water cooling radiator with a fan thickness of up to 88mm in the Meshroom S front. Enhance flexibility for tubing layout and pump installation by freeing up internal space with the Meshroom extension bracket. Experience versatile connectivity with five USB ports, including a high-speed Type-C 3.1 Gen 2 (10GBps) and dual audio jacks.

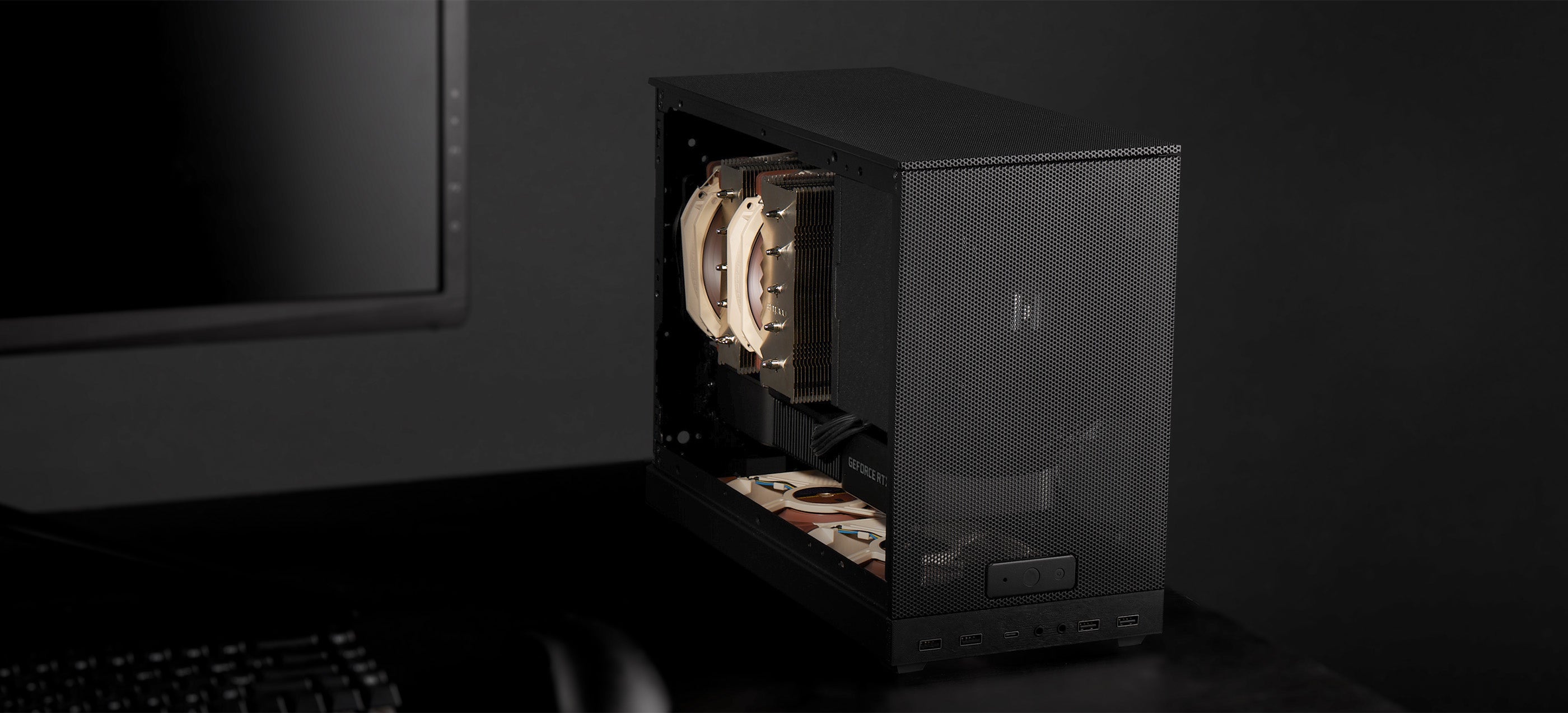

Compatible with ITX and MATX motherboards in Meshroom D for diverse installation configurations.

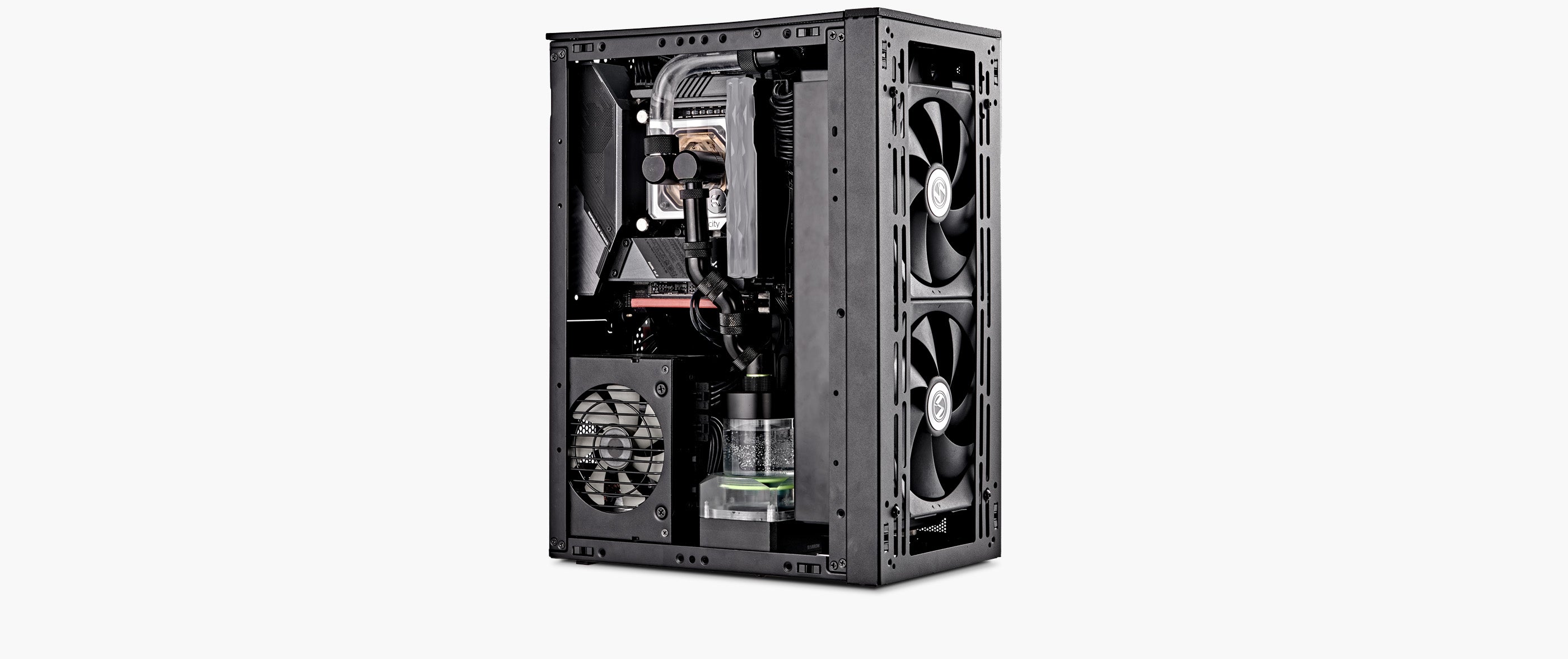

Cool in the Front
The front of the Meshroom S accommodate a 240/280mm water cooling radiator with fans thickness up to 88mm.

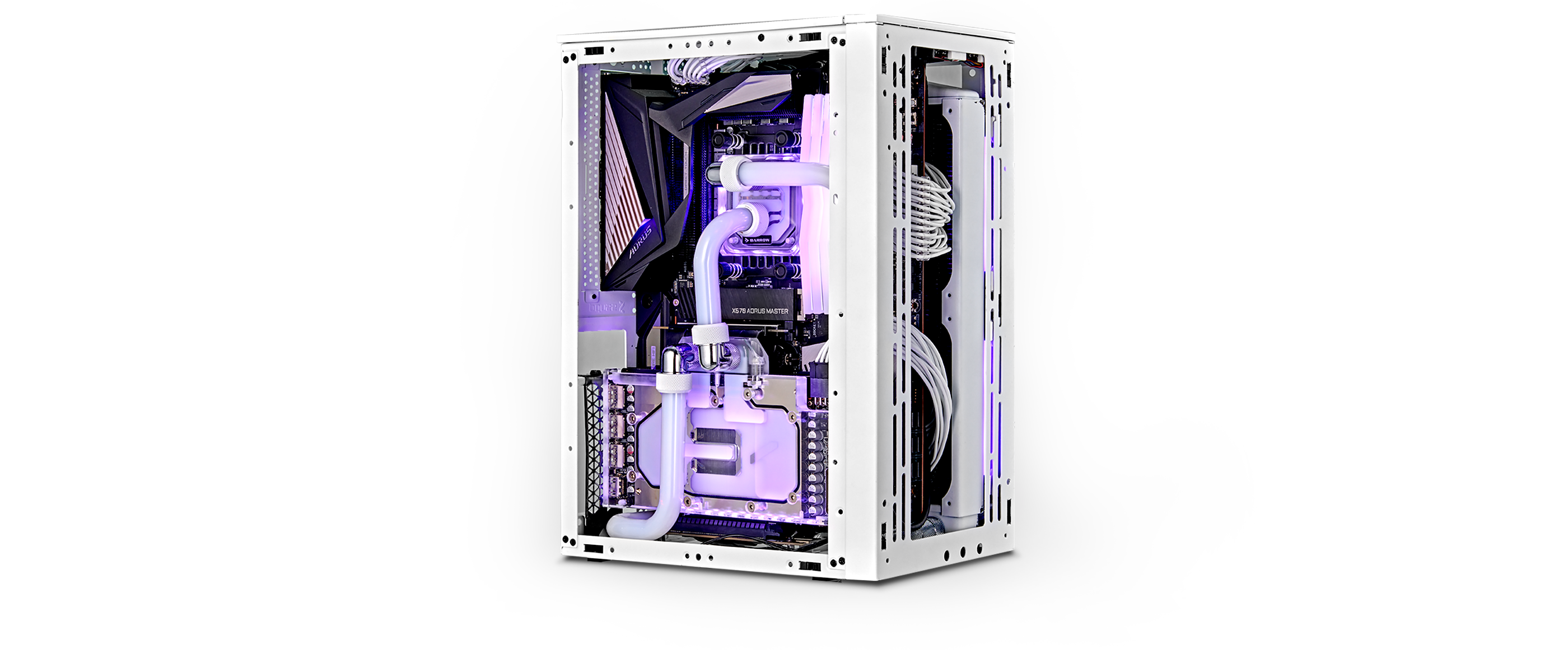

Easy access for custom loop
Installing the extension bracket frees up internal space, bringing higher flexibility for tubing layout and pump installation.
Connect More and Faster

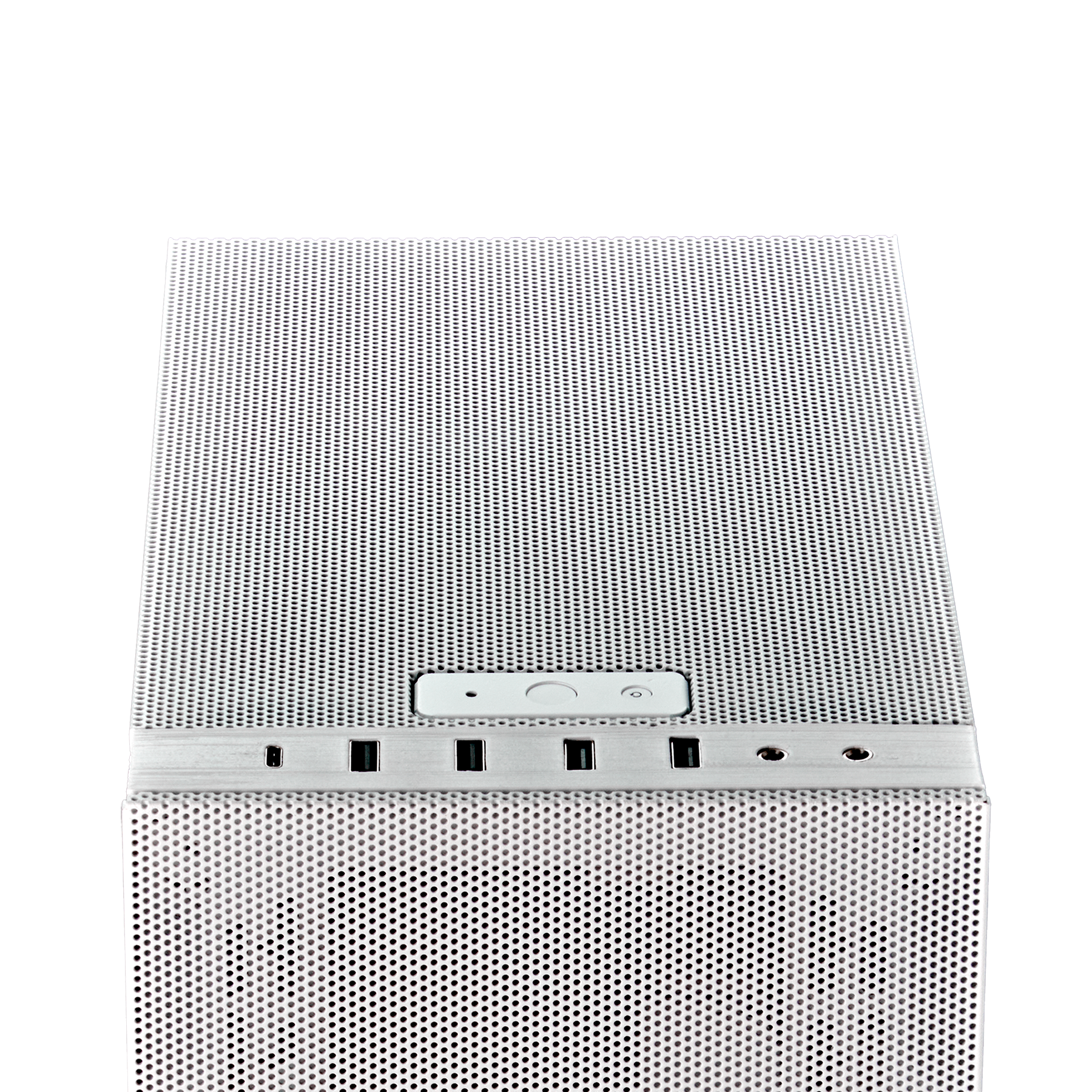

Featuring five USB ports with high-speed Type-C 3.1 Gen 2 (10GBps) and dual audio jacks, provide convenient and versatile connectivity
Specifications
Front interface - Variant B
2 x USB 2.0 Type-A, 2 x USB 3.0 Type-A, 1 x Audio & Mic, 1 x Power button

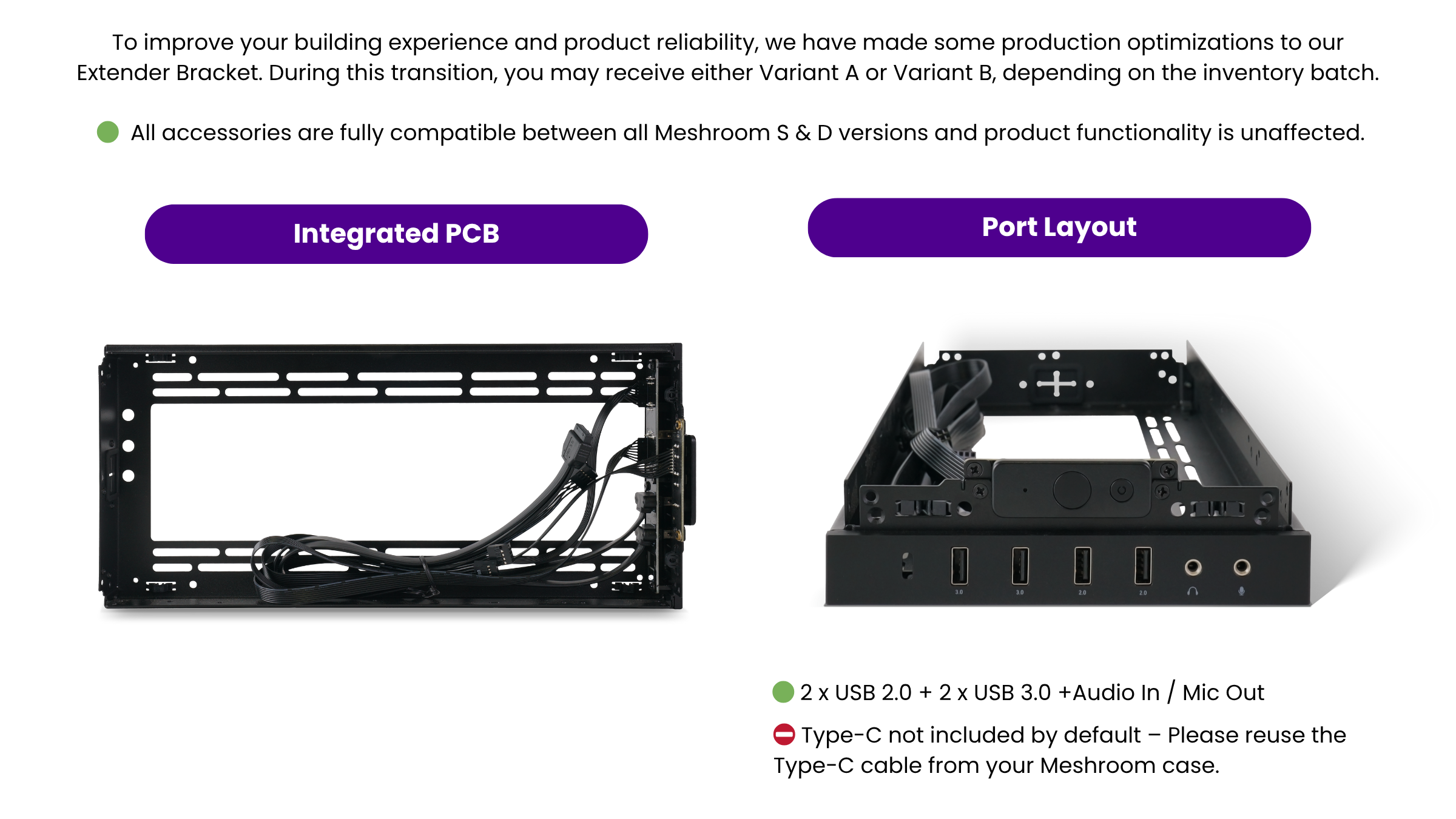

Install USB 3.2 Type-C from Meshroom front IO
Front interface - Variant B
2 x USB 2.0 Type-A, 1 x Audio & Mic, 1 x Power button
Install USB 3.2 Type-C and 2 x USB 3.0 Type-A from Meshroom front IO
Bottom water cooler with Meshroom D
ITX MB: max 326 mm length x 144 mm width x 55 mm thick (radiator+fans) allows 37 mm width GPU;
MATX MB: max 326 mm length x 124 mm width x 55 mm thick (radiator+fans) allows 37 mm width GPU
Motherboard support with Meshroom S
Mini-ITX, Mini-DTX, M-ATX, ATX
Motherboard support with Meshroom D
Mini-ITX, Mini-DTX, M-ATX
Front fan mounts with Meshroom S
Max 2 x 120 / 140 mm
Front water cooler with Meshroom S
Max 332 mm length x 144 mm width x 88 mm thick (radiator + fans)
Compatibility
Motherboard compatibility
Meshroom S: Mini ITX / Mini DTX / Micro-ATX / ATX
Meshroom D: Mini ITX / Mini DTX / Micro-ATX
Power supply type
ATX / SFX-L / SFX
CPU cooler height - Meshroom S
3-slot mode: Up to 74mm height; 4-slot mode: Up to 54mm height
CPU cooler height - Meshroom D
142 mm tall with no side fan bracket installed; 138 mm tall with side fan bracket installed
GPU max length - Meshroom S
Front position: 320 mm length x 145 mm height x 61 mm width (330 mm length with extra feet)
Horizontal position: 264 mm length x 160 mm height x 63 mm width
GPU max length - Meshroom D
3-slot mode: 325 mm length x 140 mm height with expansion bracket;
4.6-slot mode: 325 mm length x 136 mm height with expansion bracket
General
Product dimensions
362 x 167 x 51 mm / 14.25 x 6.57 x 2 inch
Package dimensions (L x W x H)
407 x 185 x 65 mm / 16.02 x 7.28 x 2.56 inch
Volume
16.57 liters with Meshroom S V2 and feet;
17.2 liters with Meshroom D and feet
Net weight
Variant A: 0.61 kg / 1.35 lb
Variant B: 0.65 kg / 1.43 lb
Gross weight
Variant A: 0.92 kg / 2.03 lb
Variant B: 0.96 kg / 2.11 lb
Warranty
1 year
Package contents

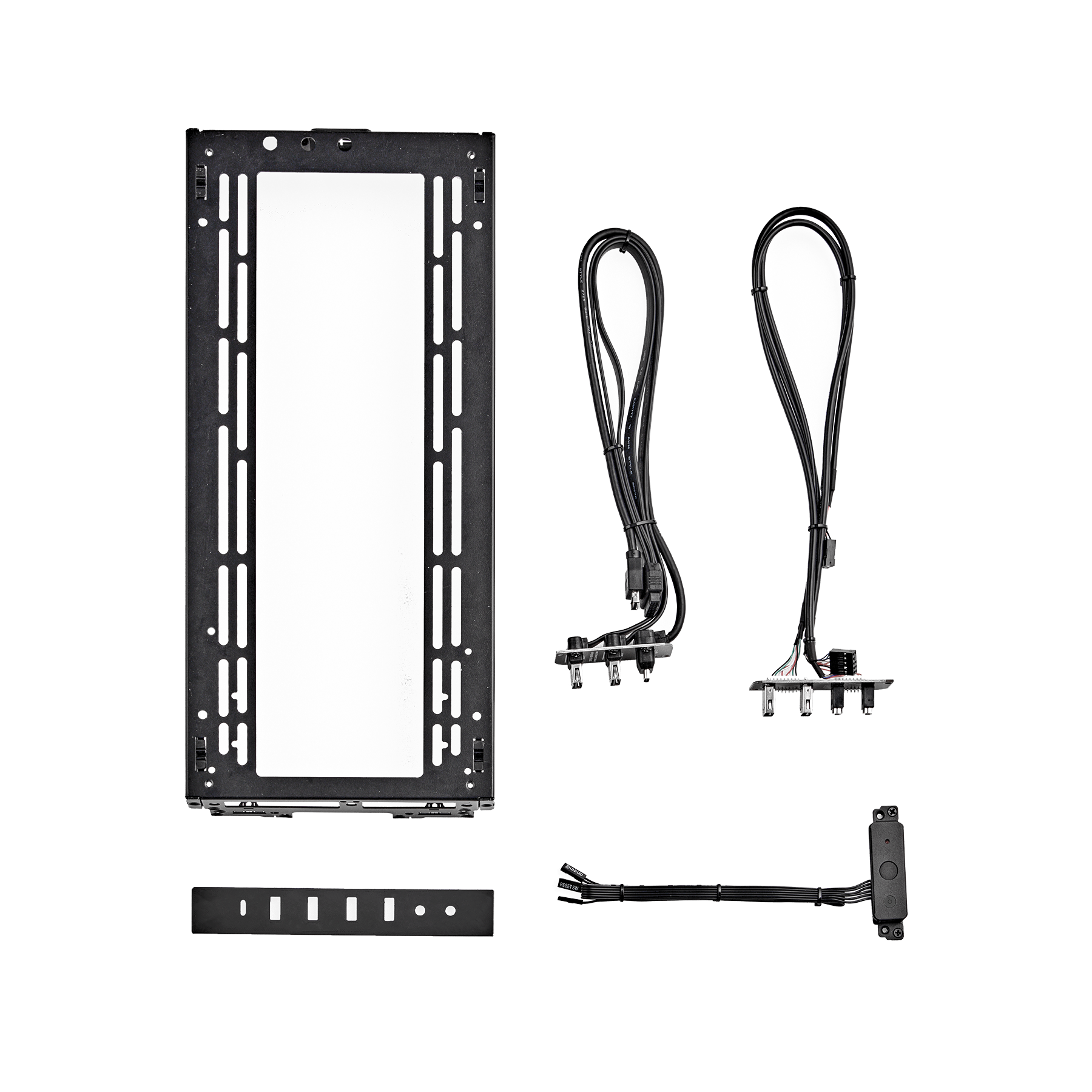

Bracket, IO ports, accessory screw
