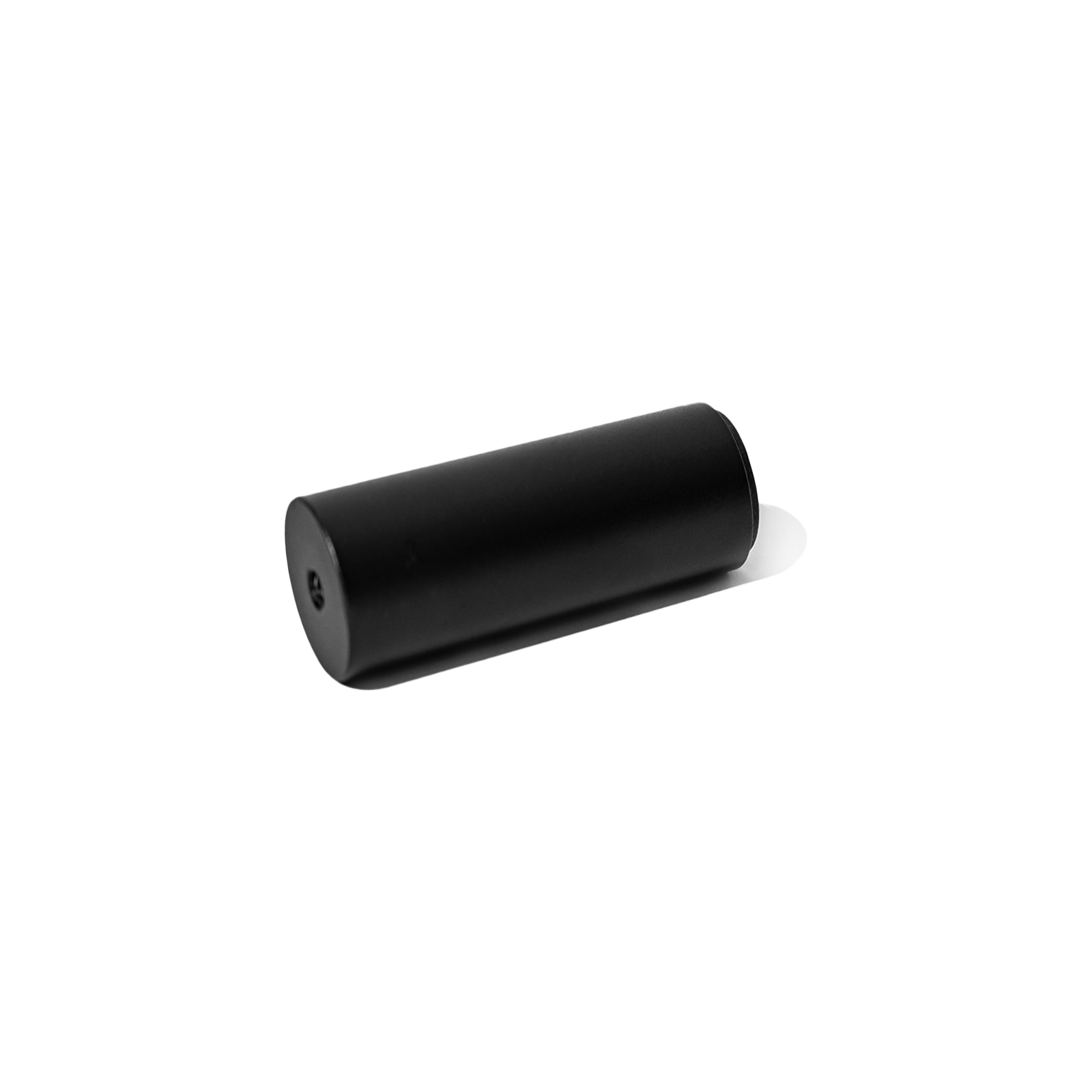

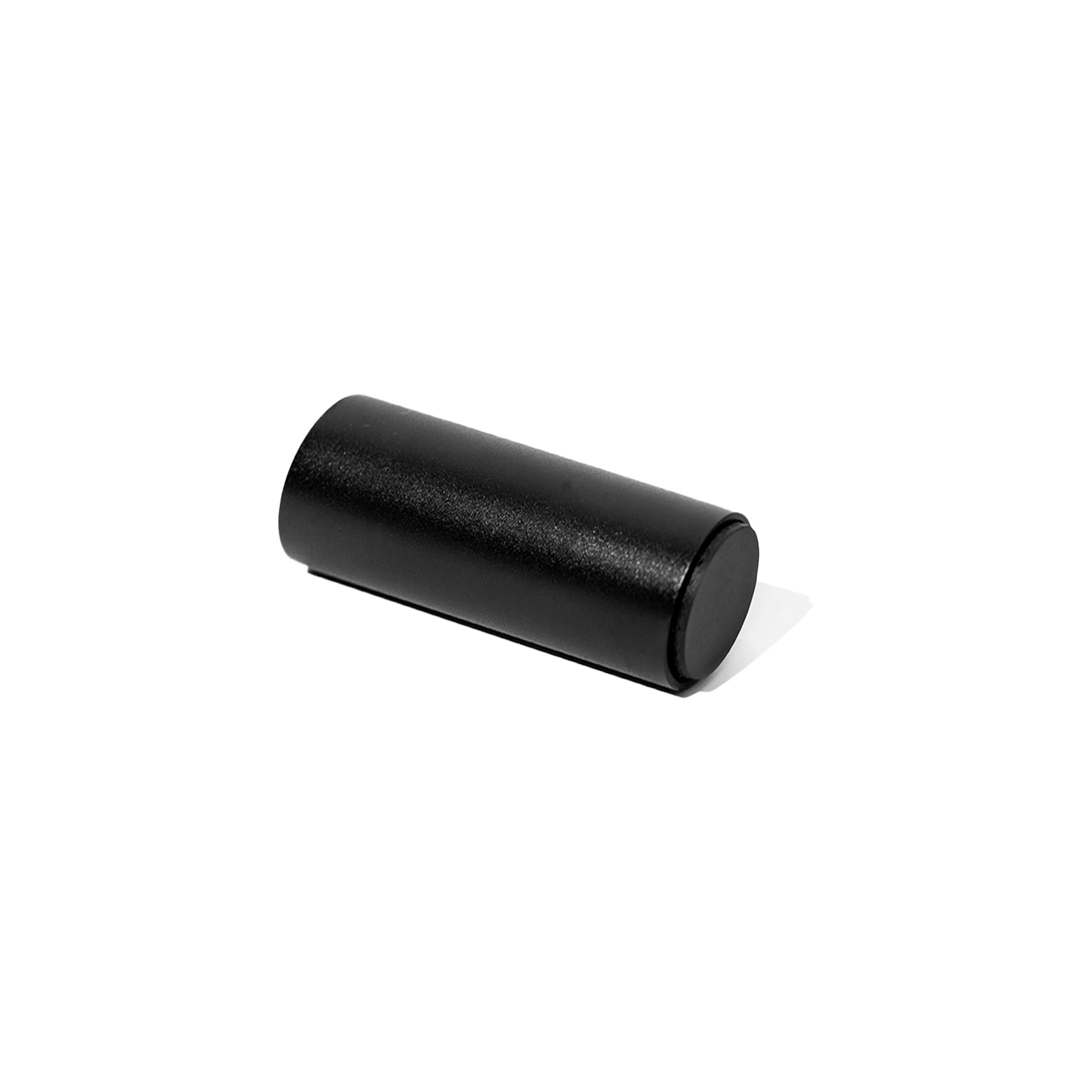

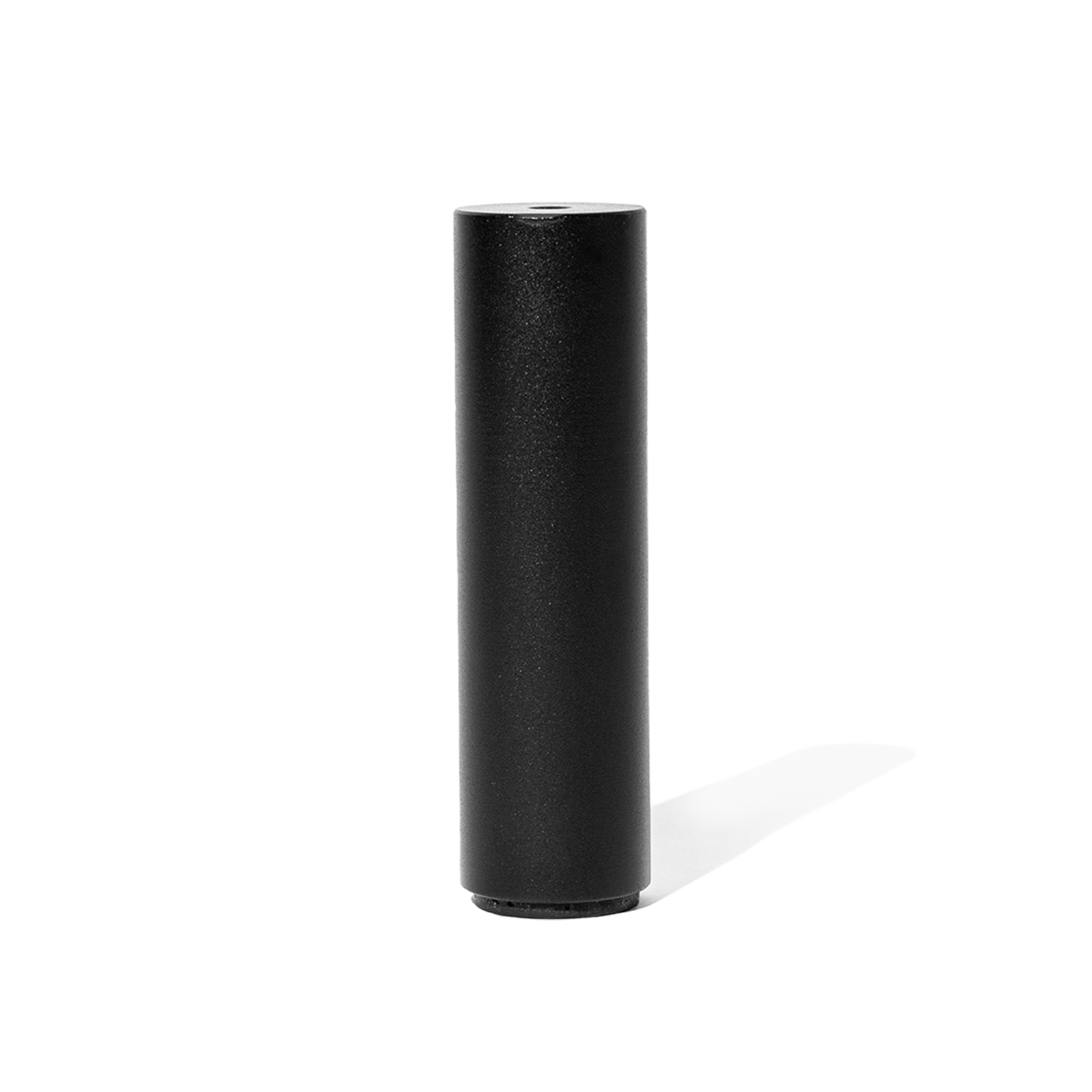

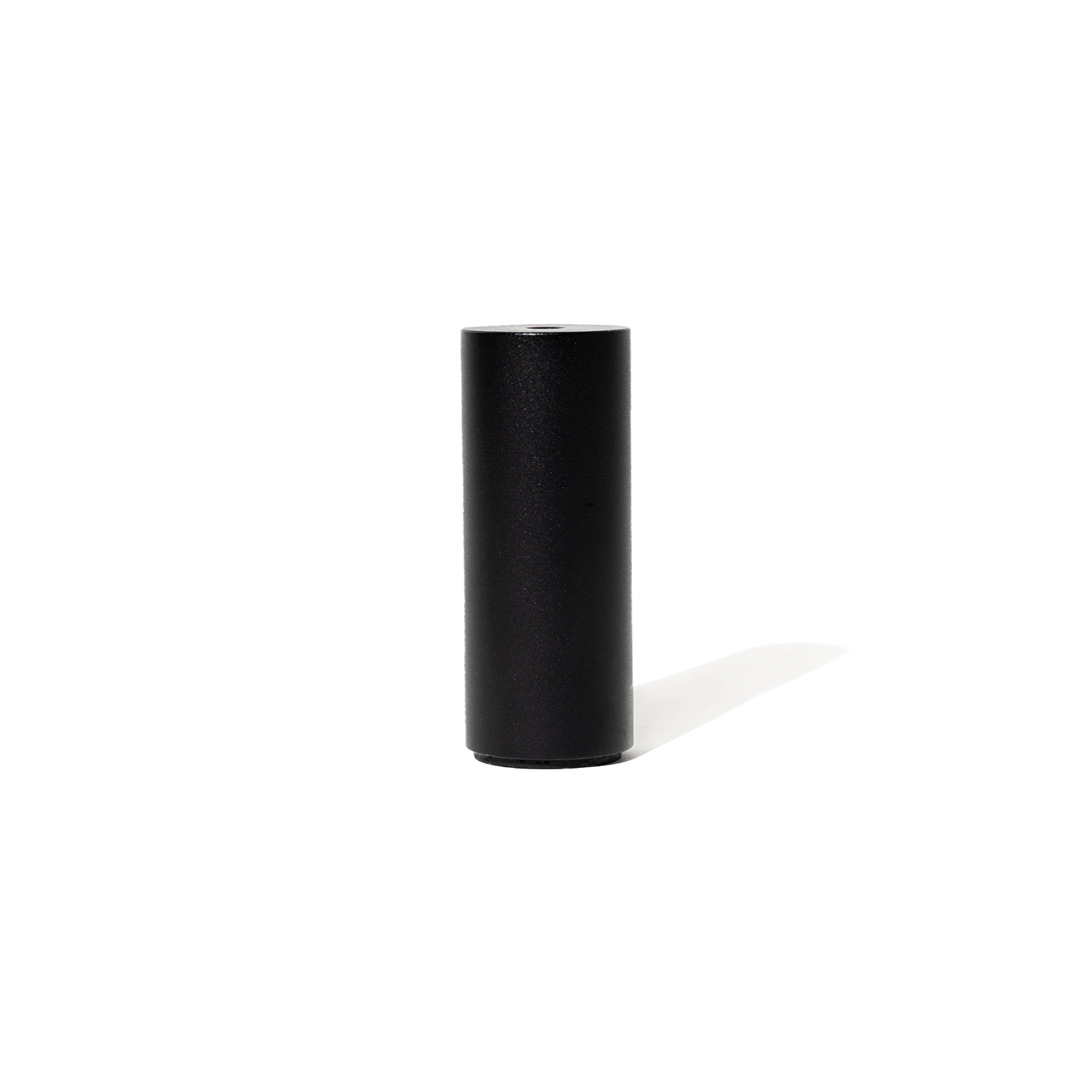

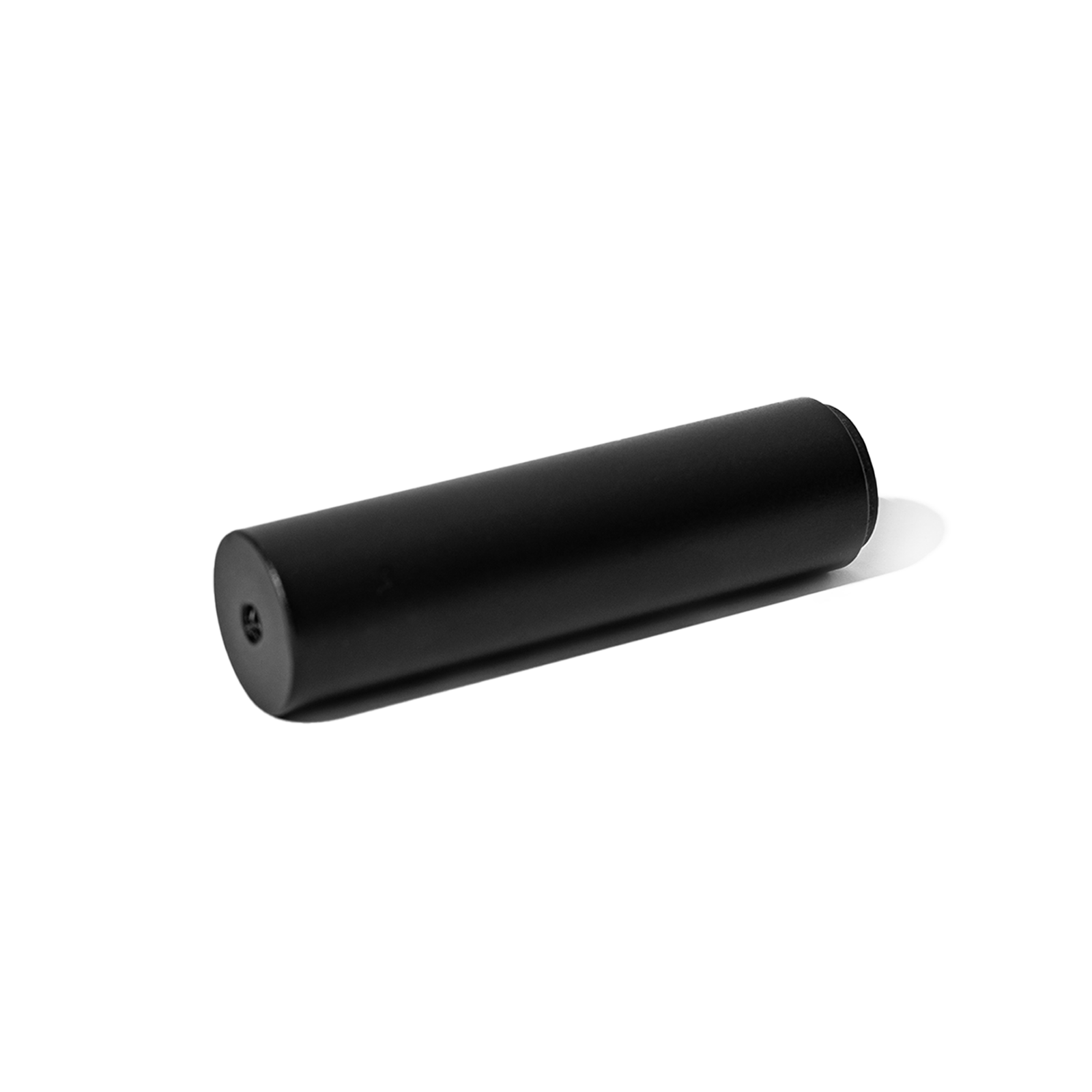

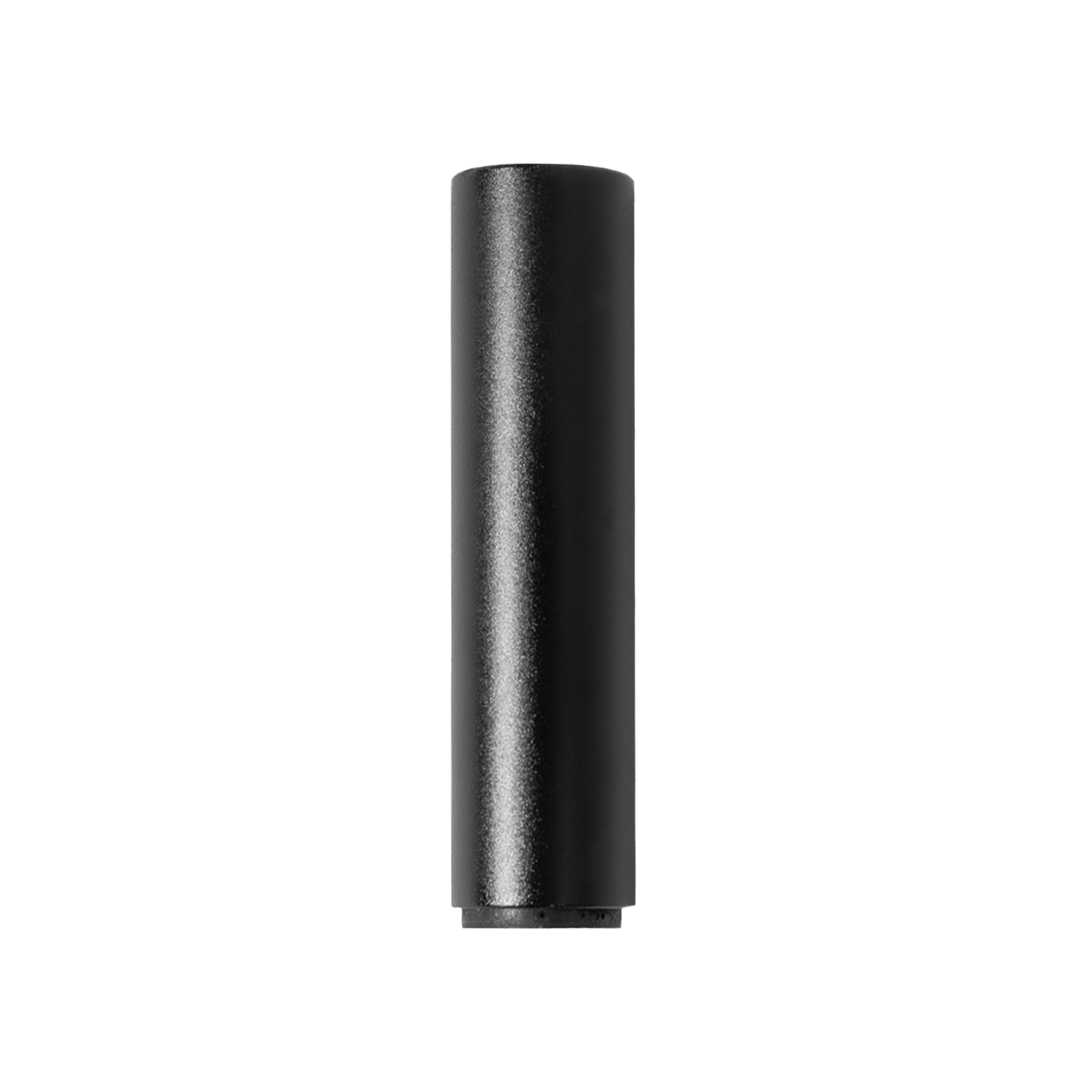

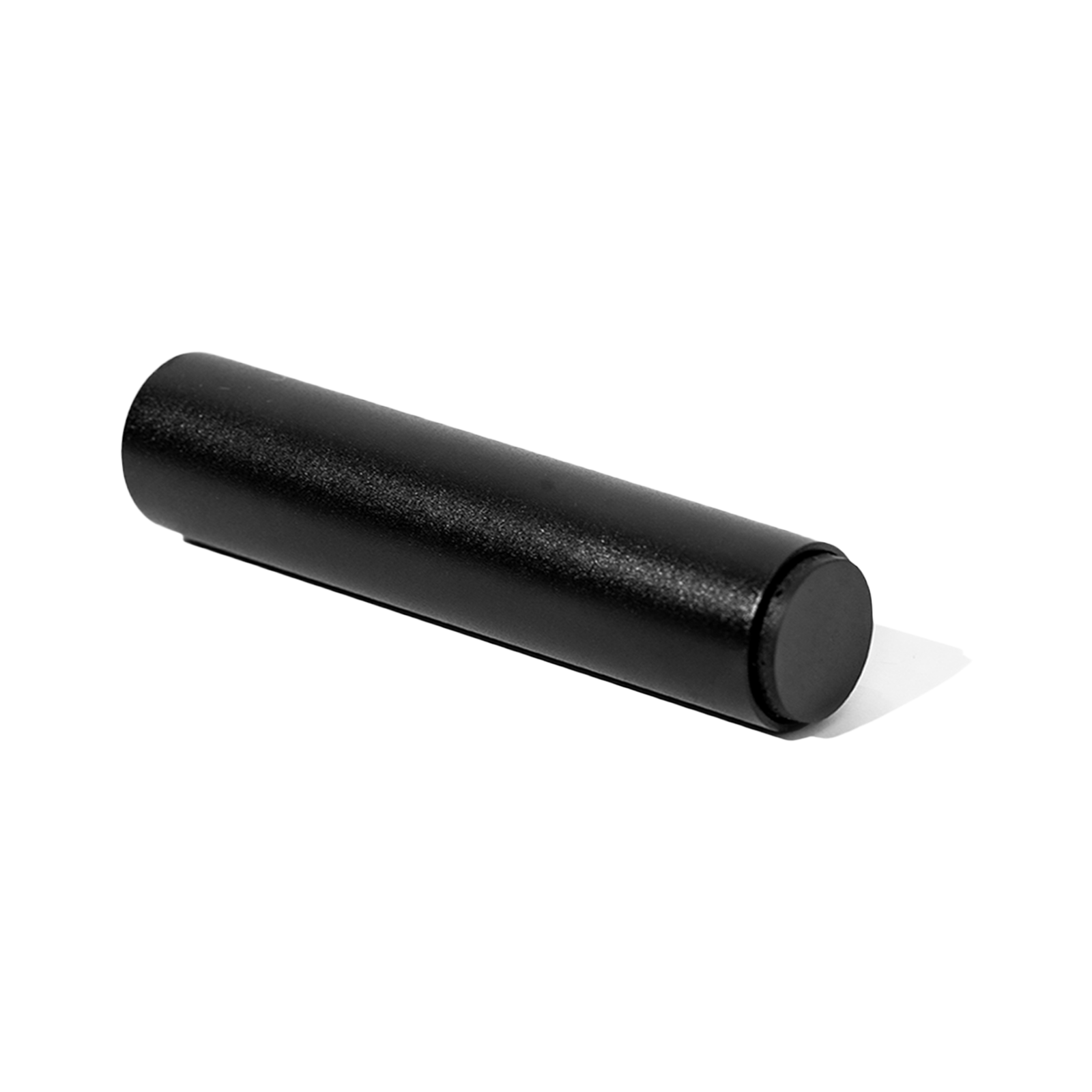

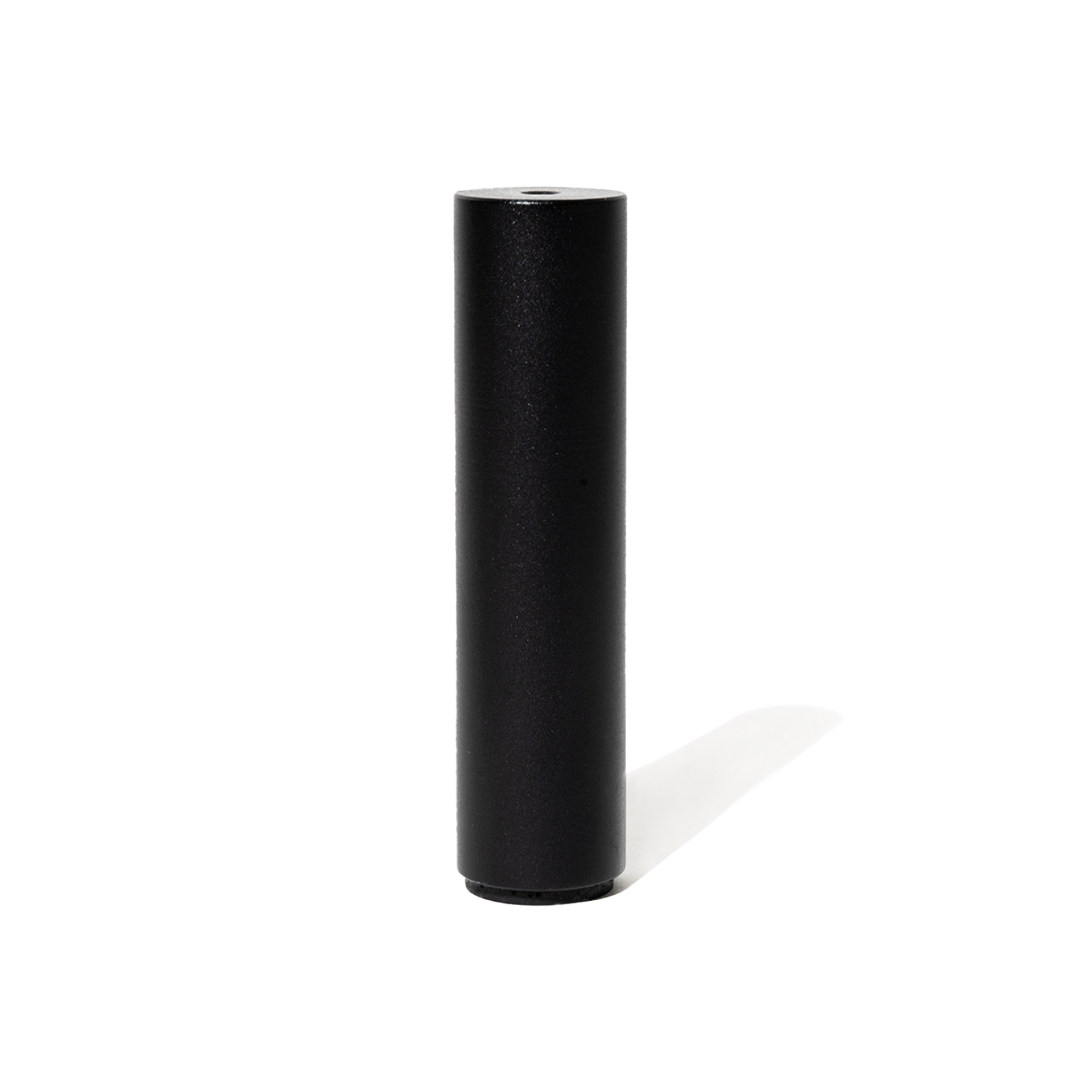

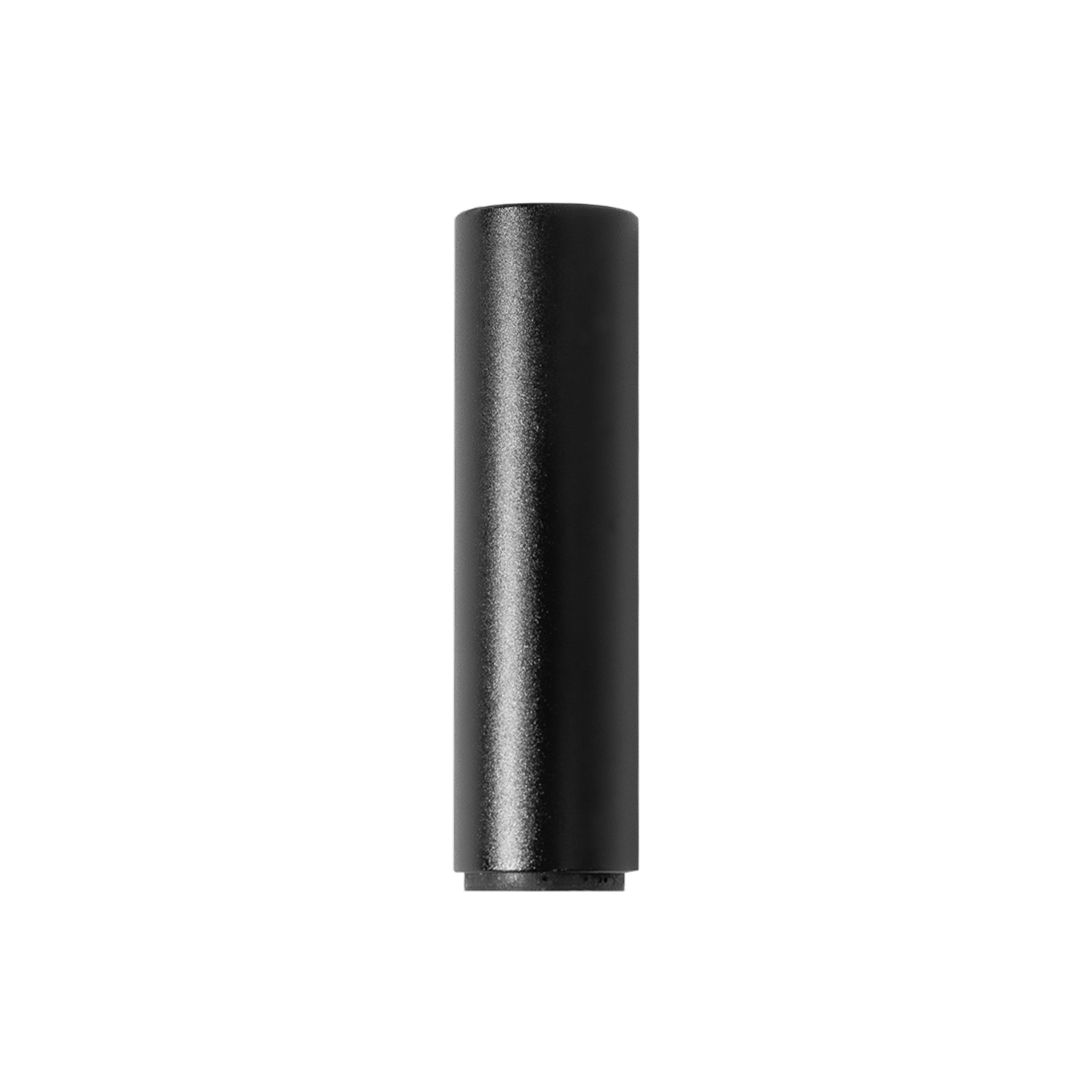

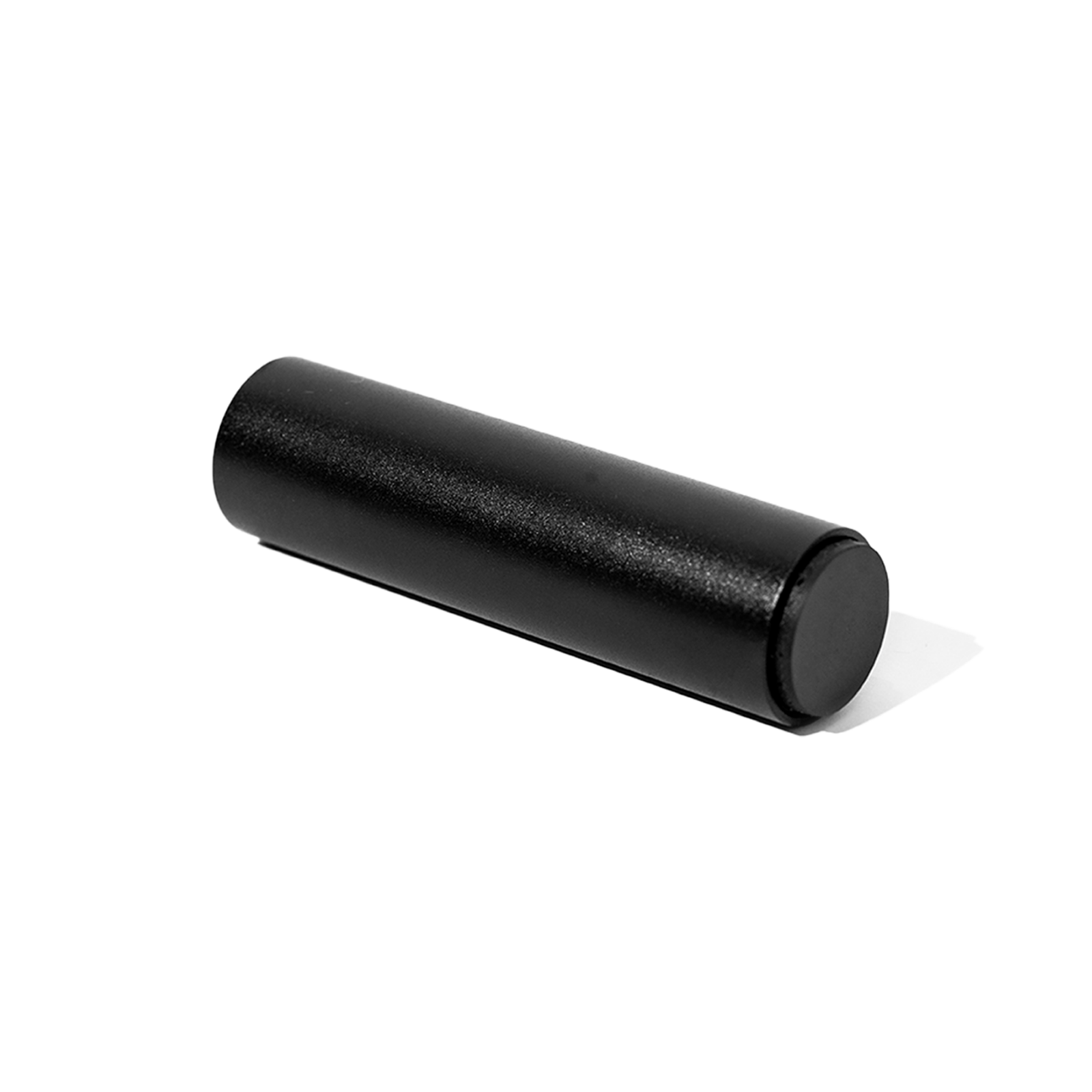

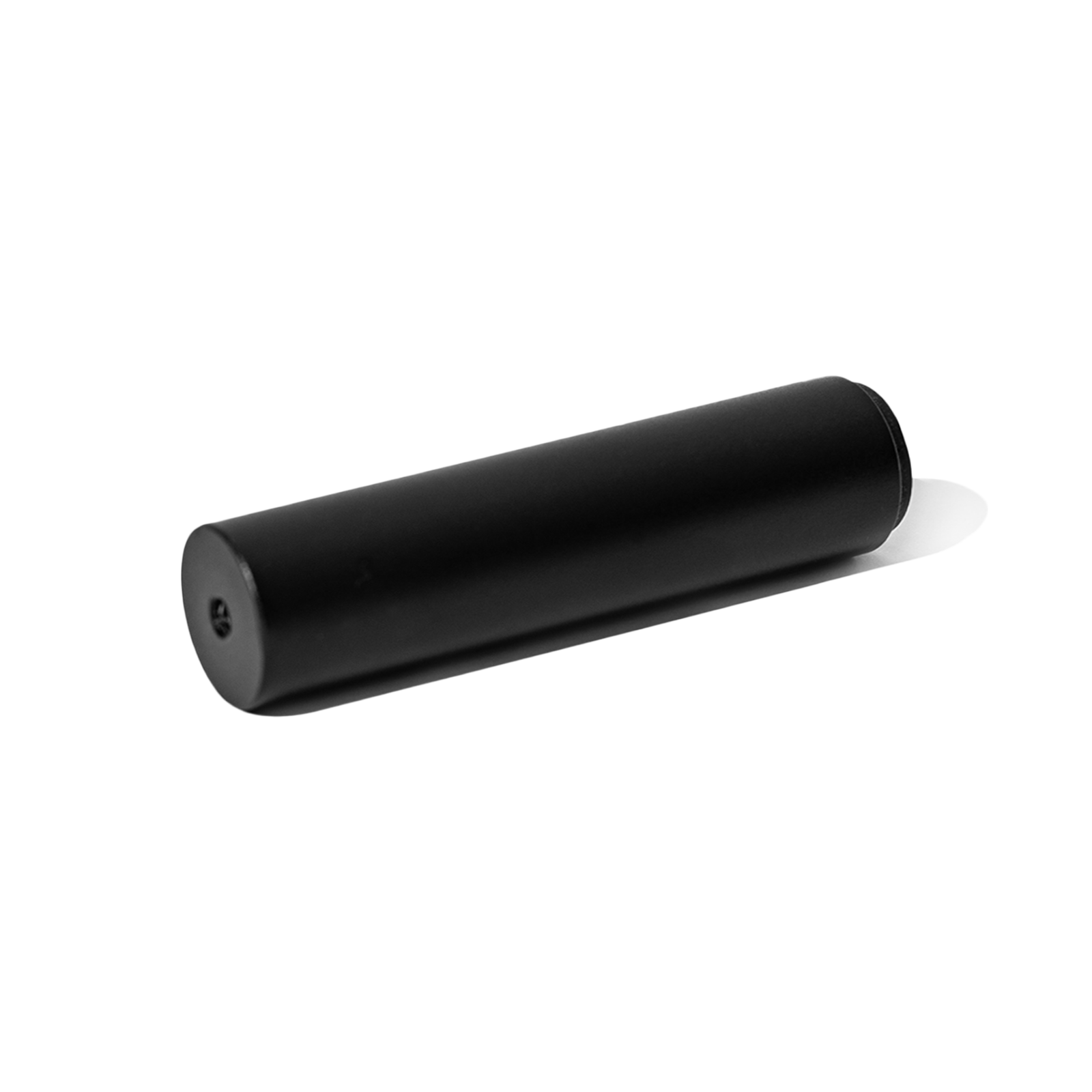

Aluminum Feet
Add height for display cables

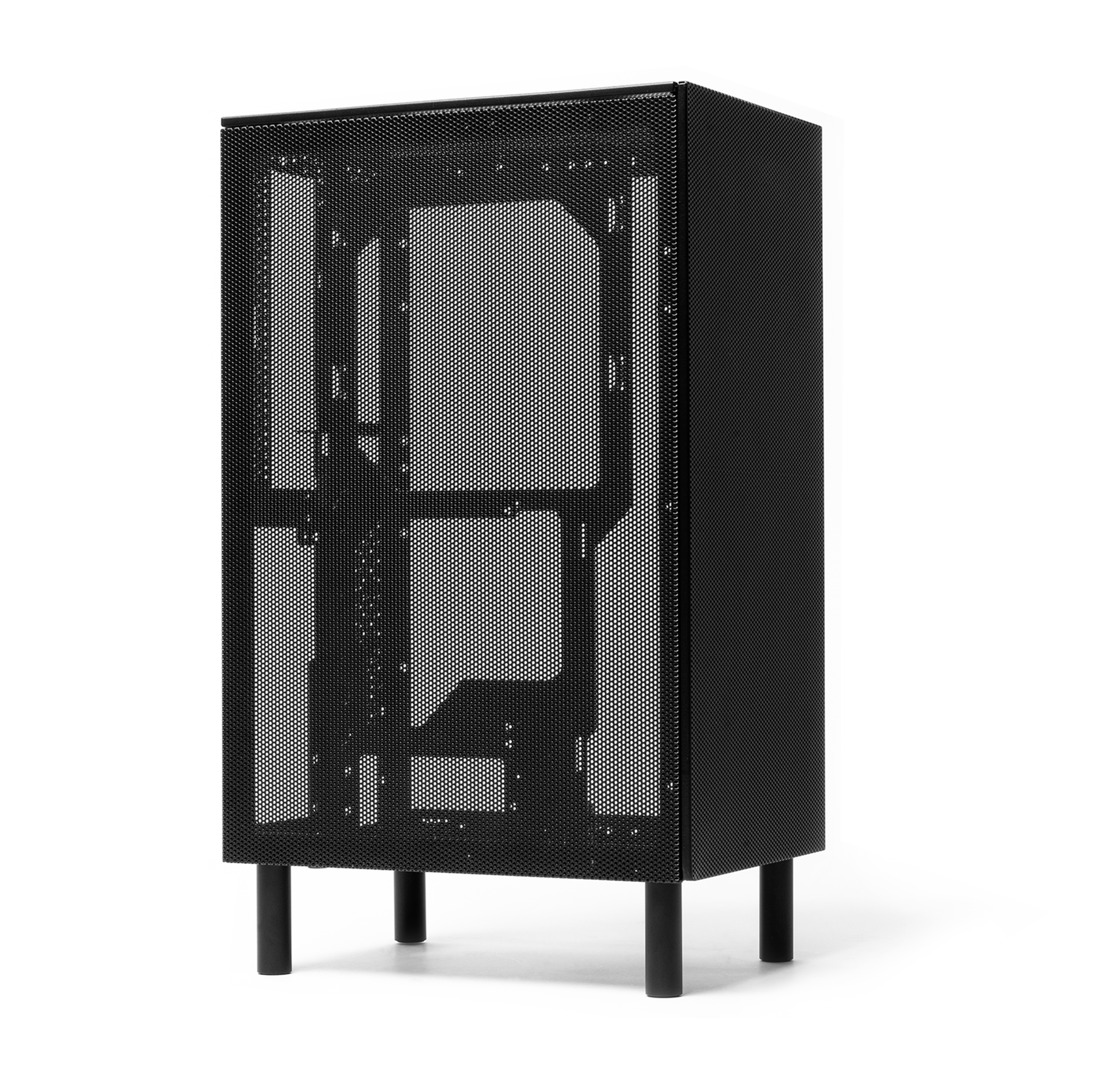

Installing aluminum feet increases the base height of Meshroom S, enabling the use of straight-out connectors for 75mm cable height at the GPU port.
Elevate setup, maximize space

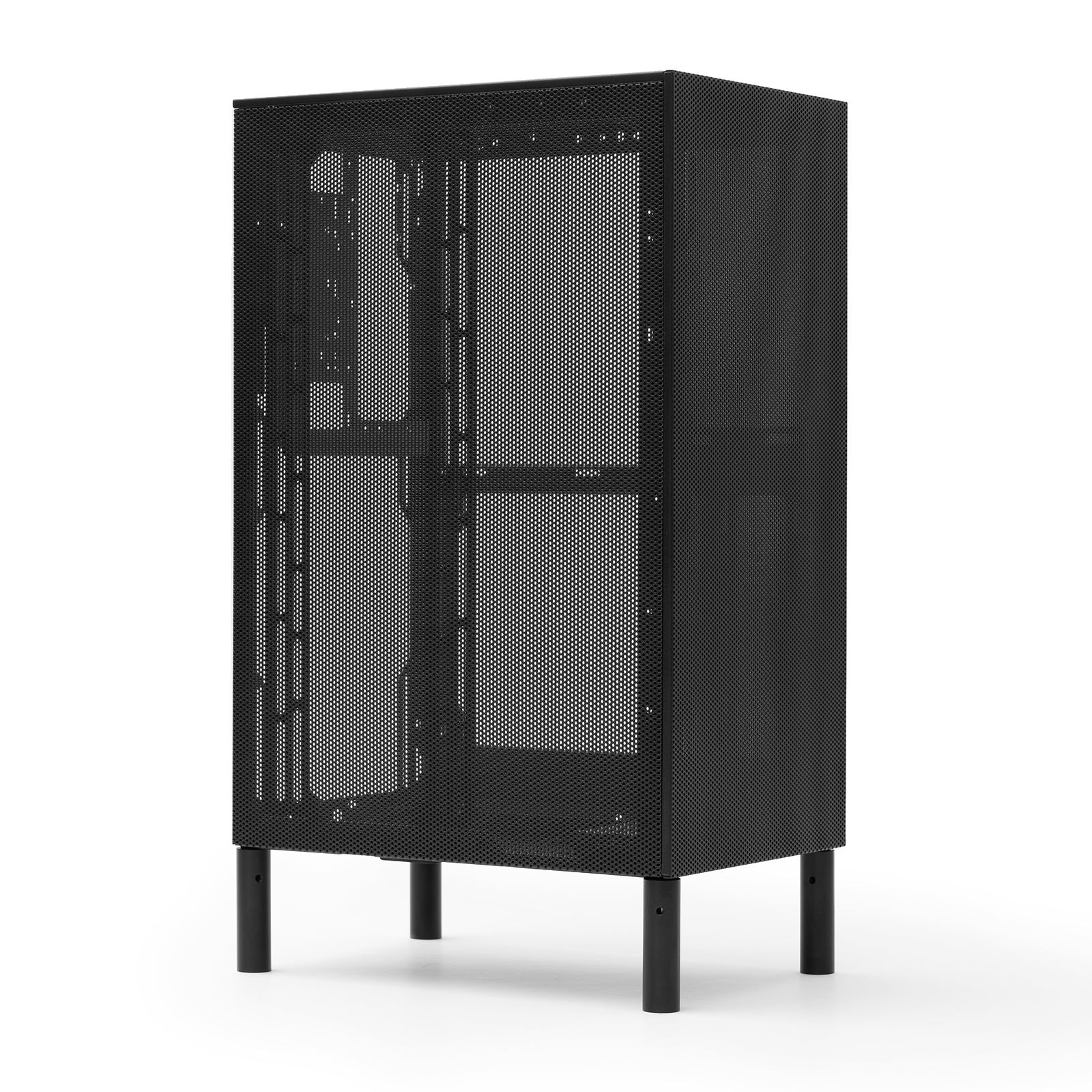

Aluminum feet at the back of Meshroom D enables upright placement on the desktop, saving space while elegantly displaying your high-end GPU.
Elevate Your Cooling
Aluminum feet raise the Meshroom S base, enhancing front radiator water pipe routing and providing ample space for 360mm AIO water cooling.
Enhanced GPU Fit
The Meshroom S, equipped with aluminum feet, accommodates up to 343mm long graphics cards, requiring a right-angled display connector cable.
Compatibility & General
Meshroom S: GPU length without extra feet
GPU rear position:
332mm length with 90 degree angle cable
GPU front position:
314mm length with 90 degree angle cable
Meshroom S: GPU length with 45mm feet
GPU rear position:
353mm length with 90 degree angle cable
343mm length with straight head cable
GPU front position:
335mm length with 90 degree angle cable
325mm length with straight head cable
Meshroom S: GPU length with 32mm feet
GPU rear position:
353mm length with 90 degree angle cable
312mm length with straight head cable
GPU front position:
335mm length with 90 degree angle cable
Meshroom D: cable clearance with 53mm feet
Vertical position provide 66mm cable clearance
Dimensions (L x W x H)
32mm feet: 32.75 mm x 17 mm x 17 mm
45mm feet: 45.75 mm x 17 mm x 17 mm
53mm feet: 53.75 mm x 17 mm x 17 mm
Net weight
32mm feet(4 pcs): 77 g
45mm feet(4pcs): 102 g
53mm feet(4 pcs): 128 g
Warranty
1 year
Package dimensions (L x W x H)
100.5 mm x 76mm x 32 mm
Gross weight
32mm feet(4 pcs): 104 g
45mm feet(4 pcs): 123 g
53mm feet(4 pcs): 148 g

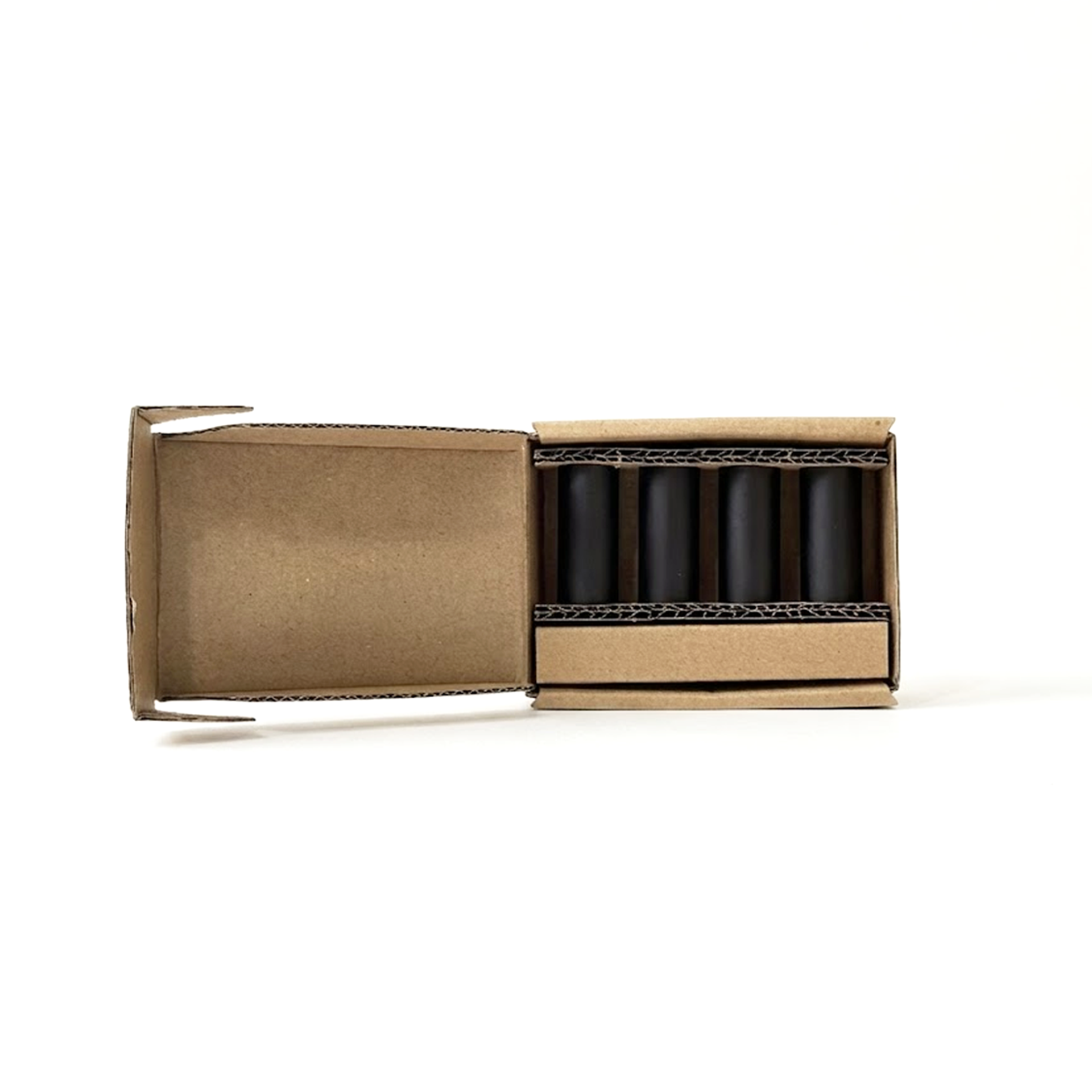

Package contents
Aluminum stand feet Set
