Meshroom D
Introduce a new horizon in small form factor case design - Meshroom D, covered 4-side by extreme 1.5mm fine full mesh panels prompting optimized ventilation, engineered to house high-end components and unleash maximum performance during even the most intense tasks in a 14.97 liters volume. Featuring flexible space arrangement, the case is a master of build versatility able to accommodate a full size GPU up to 3.4 slot with highly flexible power supply options up to 150mm. Designed for custom loop enthusiasts, it boasts dedicated room for dual radiators and a DDC pump. Crafted in a stylish steel exterior, Meshroom D harmonizes aesthetics with functionality, providing an adaptable solution that complements any workspace.
Product condition guidance:
- New: Completely unused, in pristine condition with original packaging and all components included.
- Good: Excellent working condition with all parts intact. May show minor signs of handling or packaging wear.
- Acceptable: Fully functional but may have noticeable packaging wear or missing minor accessories. Suitable for cost-effective options.
**Final sale items, Open-box/Good Condition, personalized/customized items, and gift cards are not eligible for return.**

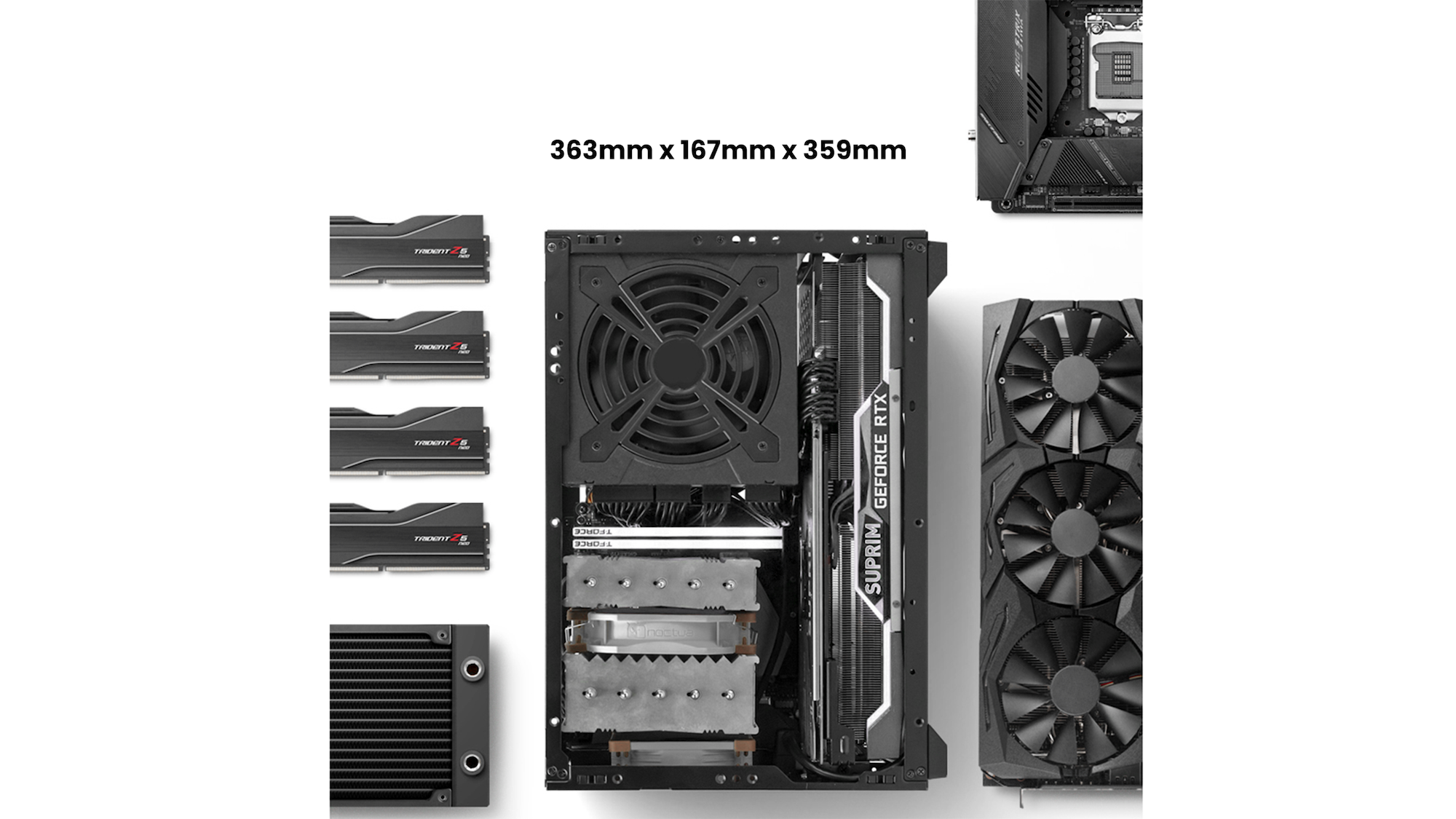

Small in Size, Big on Capability
Compact 15L volume, Meshroom D can house AIO liquid coolers, custom water-cooling, high-performance 3–4 slot GPUs, and even ATX PSU

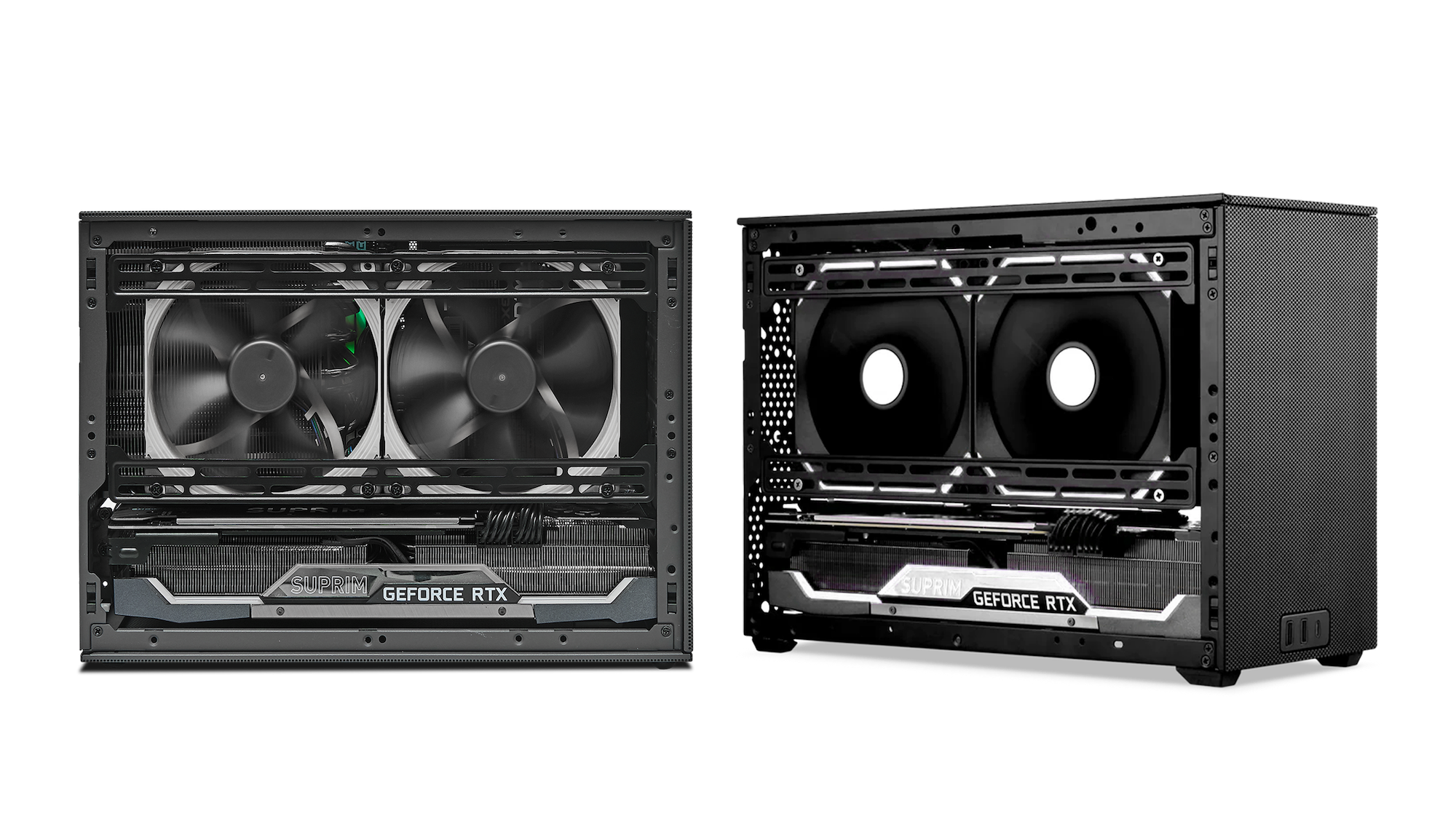

High-Performance GPU Support
Designed to Supported GPUs up to 3.4 slots (69mm), 325mm in length, 136mm in width
More Room for Cooling
Supports CPU cooler heights up to 142mm
Custom loop Ready
Featuring 240mm dual radiator custom loop water-cooling design

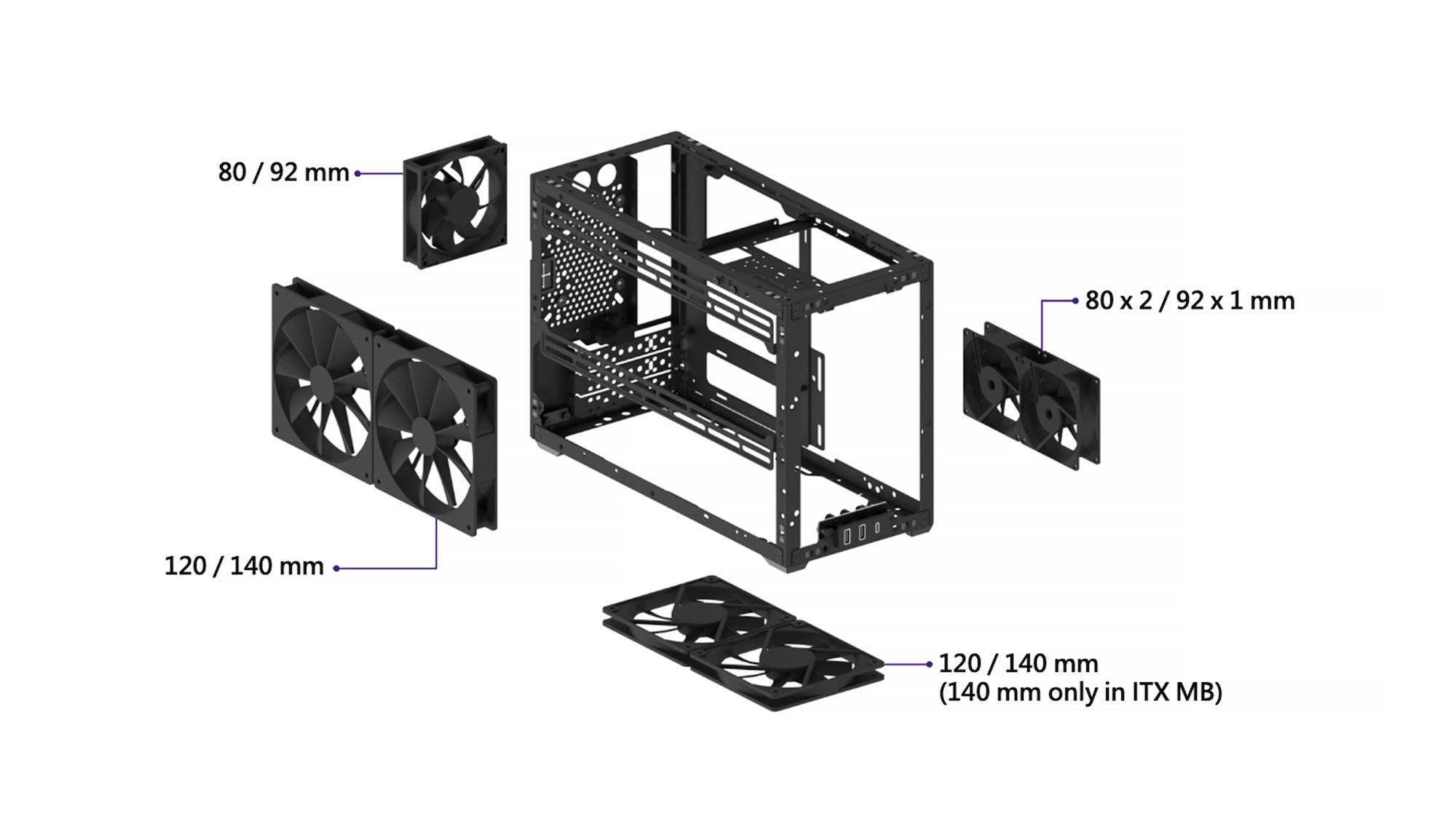

Supports Up to 7 Fans
Install up to 7 fans in multiple positions, enabling efficient multidirectional airflow through the fully ventilated mesh design

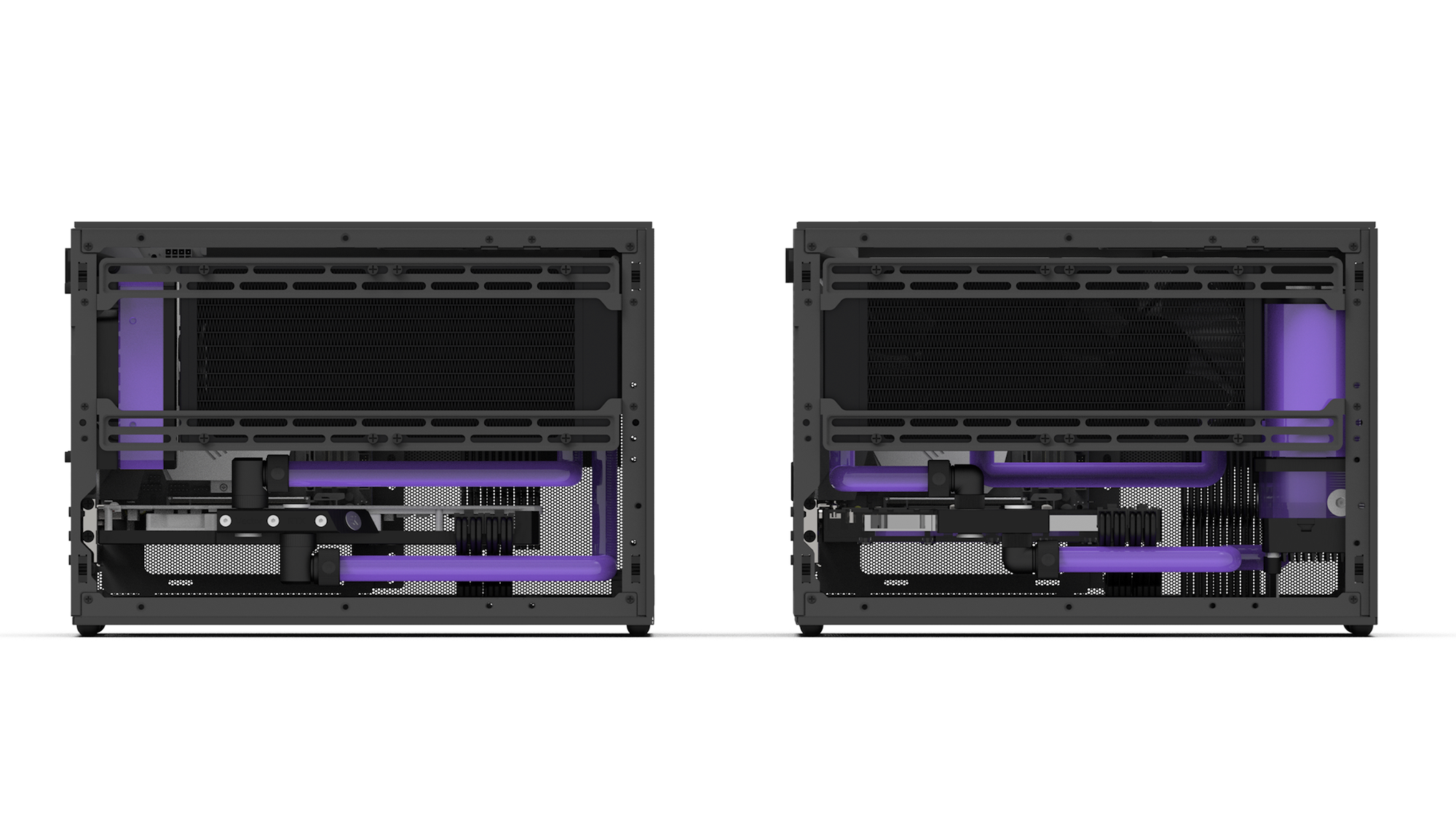

Dual-Radiator Ready for Custom Loops
With different pump mounting locations for dual-radiator

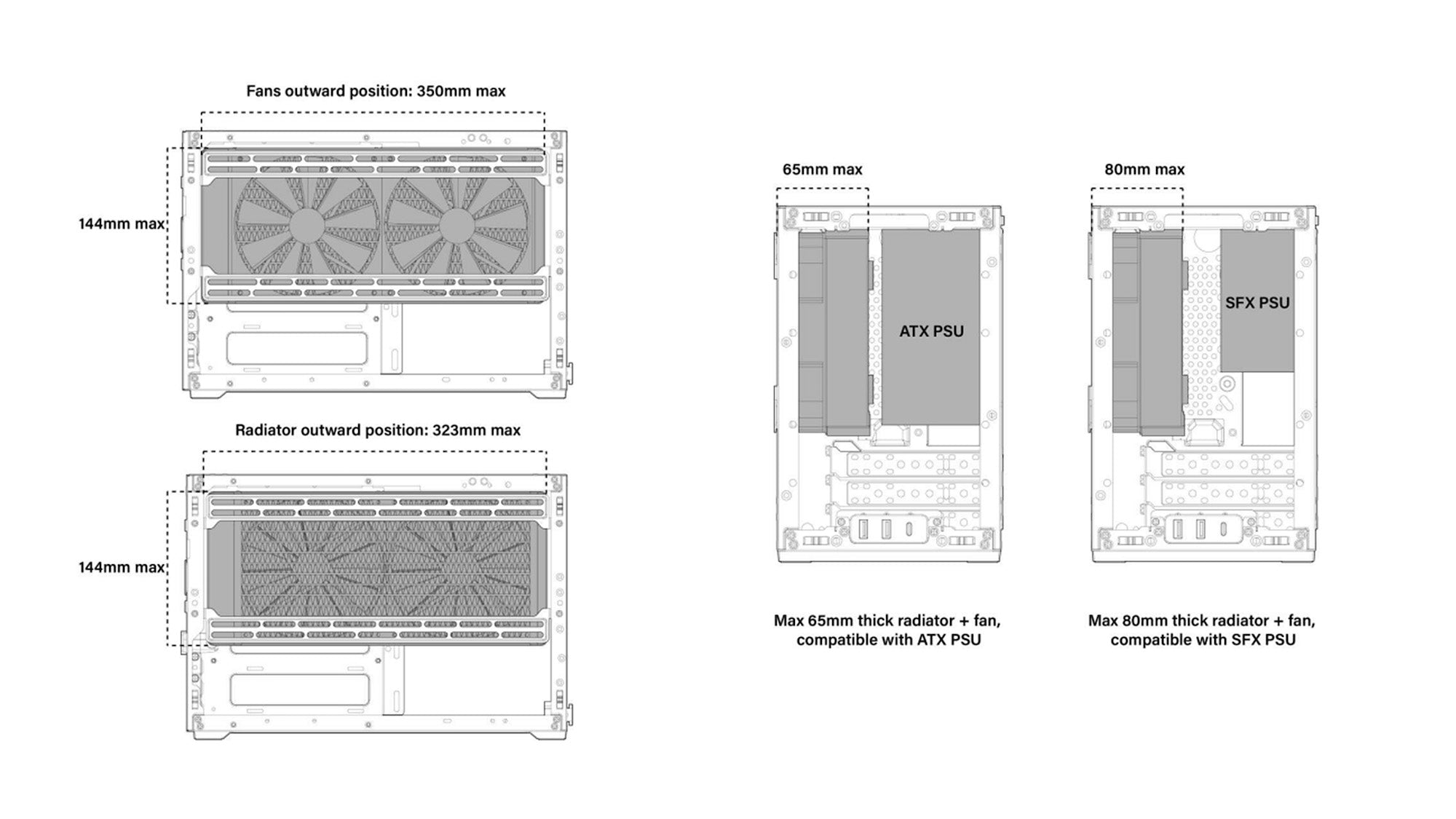

Side water cooling limitations

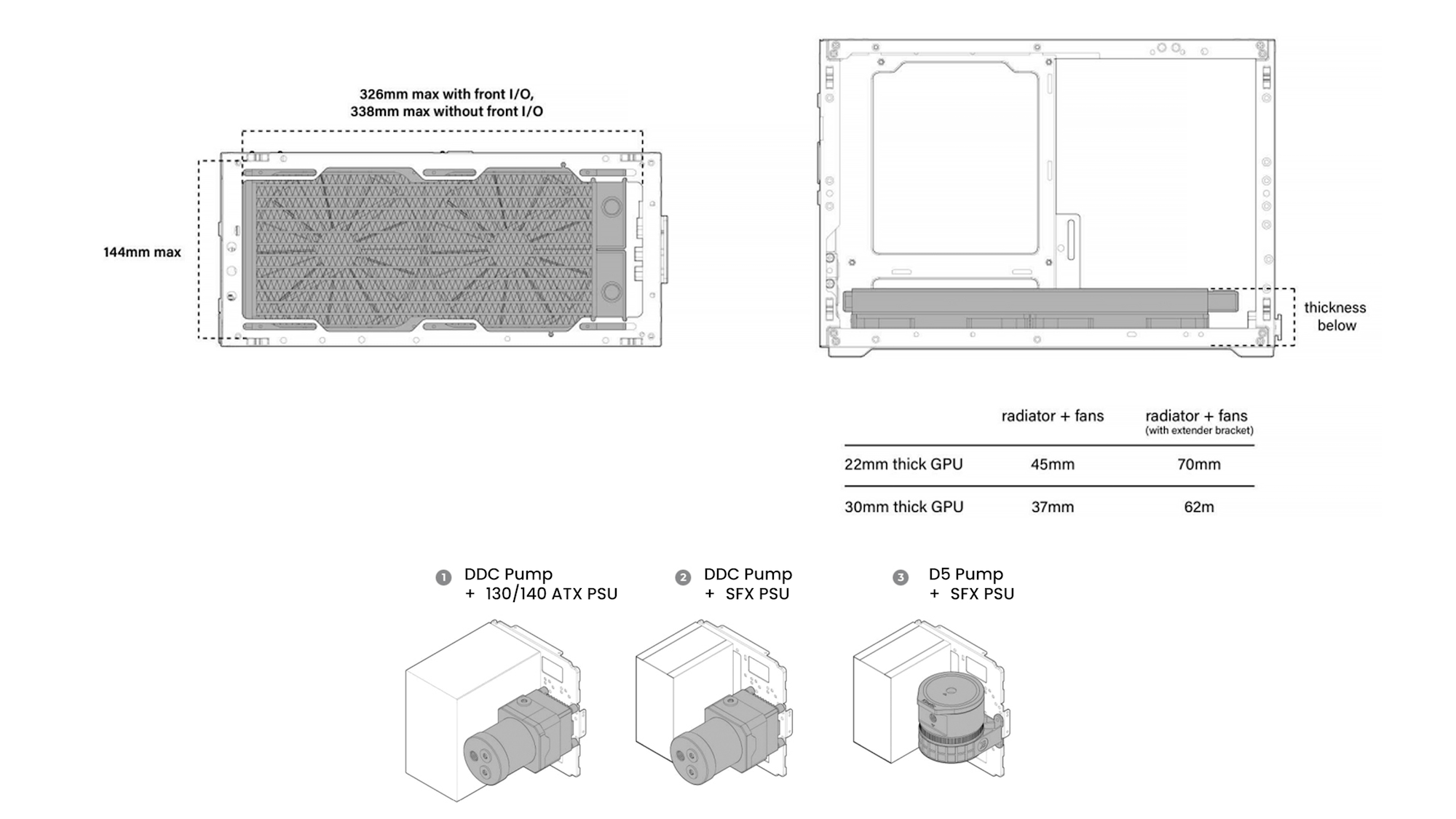

Bottom water cooling limitations
* Incompatible with MATX motherboard: 280mm radiator & 140mm fan.

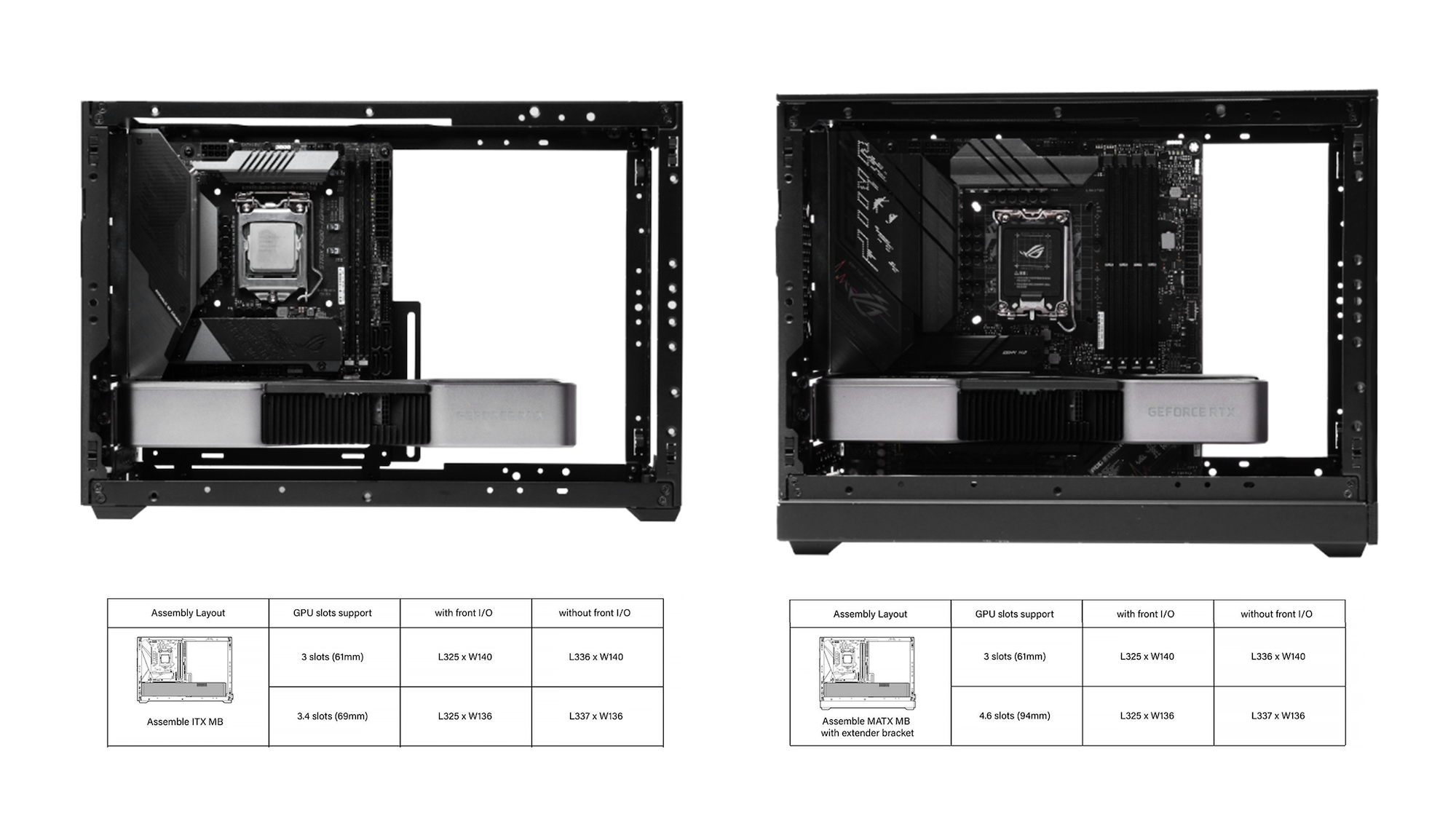

Support MATX motherboard with extra extender bracket for diverse installation configurations

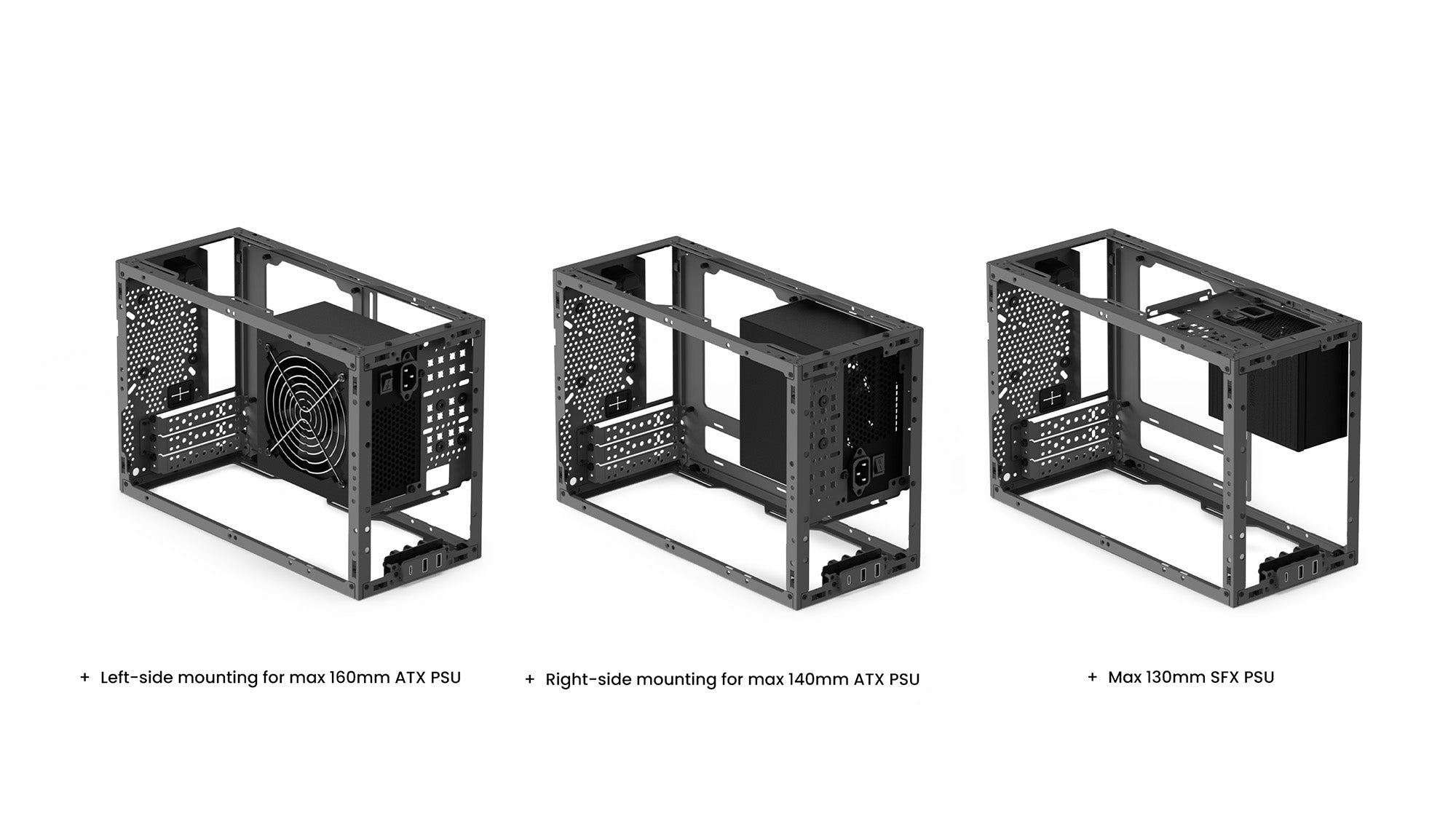

Accommodates both 160mm/140mm ATX and compact SFX PSU

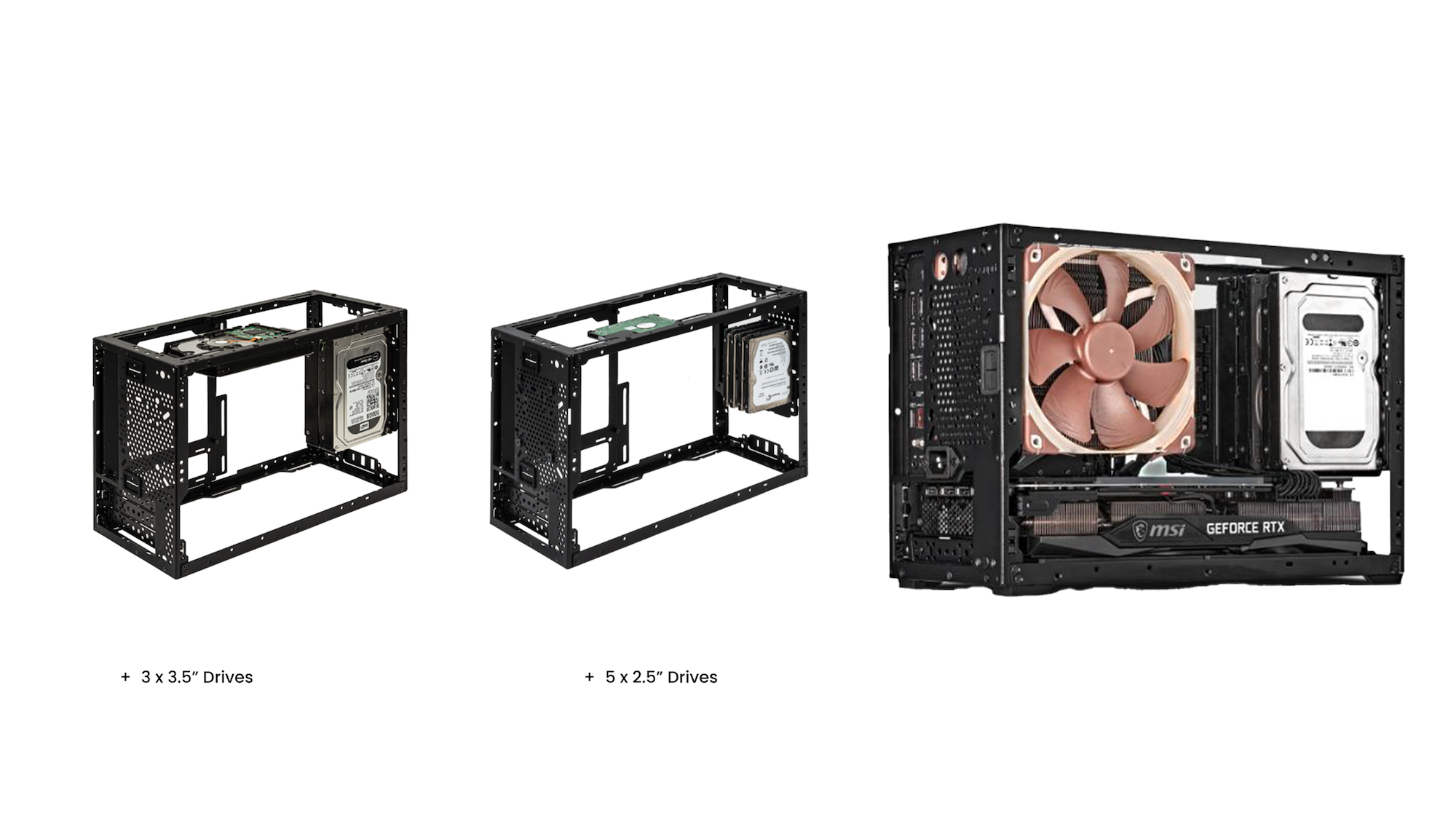

Support up to 3 × 3.5" HDDs or 5 × 2.5" SSDs
Power Button Relocation
To improve your building experience and product reliability, we have made some production optimizations to our Meshroom S and Meshroom D cases. During this transition, you may receive either Variant A (old) or Variant B (new), depending on the inventory batch.
All accessories are fully compatible between both versions and product functionality is unaffected.
Meshroom D Variant A
Meshroom D Variant B
Specifications
Expansion slots
3 slots
4.6 slots with expansion bracket
Front interface
Variant A: 1x USB 3.2 Gen 1 Type-C (10 Gbps), 2x USB 3.0 Type-A (5 Gbps)
Variant B: 1x USB 3.2 Gen 2 Type-C (20 Gbps), 1x USB 3.0 Type-A (5 Gbps), 1x Power button
Rear interface
Variant A: Power button
Variant B: N/A
Top and front panel
Fine mesh panels
Side panel
Fine mesh panels
Tool-less push-to-lock
Both side, top, and front panels
2.5" drive mounts
With SFX PSU: 5 × 2.5” SSD
With ATX PSU: 4 × 2.5” SSD
3.5" drive mounts
With SFX PSU: 3 × 3.5” HDD;
With ATX PSU: 2 × 3.5” HDD
Side fan mounts
Left side: 2x 120 / 140 mm (PSU right or top mounted)
Right side: 1x 80 / 92 mm
Front fan mounts
1x 120 / 140 mm (SFX PSU top mounted)
Rear fan mounts
1x 80 / 90 mm
Dust filters
Bottom
Compatibility
Motherboard compatibility
Mini ITX / Mini DTX / Micro-ATX (requires optional expansion bracket)
Power supply type
ATX / SFX-L / SFX
Power supply max length
150 mm (PSU mounted on left side);
140 mm (PSU mounted on right side);
130 mm (PSU mounted on top)
CPU cooler height
Max 142 mm tall with no side fan bracket installed
Max 138 mm tall with side fan bracket installed
GPU max length (ITX MB)
3-slot mode: 325 mm length x 140 mm height;
3.4-slot mode: 325 mm length x 136 mm height
GPU max length (MATX MB)
3-slot mode: 325 mm length x 140 mm height with expansion bracket;
4.6-slot mode: 325 mm length x 136 mm height with expansion bracket
Side water cooler
ITX MB: max 323 mm length x 144 mm width x 65 mm thick (radiator+fans);
MATX MB: max 279 mm length x 124 mm width x 65 mm thick (radiator+fans)
Bottom water cooler
ITX MB: max 326 mm length x 144 mm width x 45 mm thick (radiator+fans) allows 22 mm width GPU;
MATX MB: max 326 mm length x 124 mm width x 55 mm thick (radiator+fans) allows 37 mm width GPU
General
Case dimensions
Variant A: 363 x 167 x 254 mm / 14.29 x 6.57 x 10.01 inch
Variant B: 363 x 167 x 259 mm / 14.29 x 6.57 x 10.19 inch
Without feet: 363 x 167 x 247 mm / 14.29 x 6.57 x 9.72 inch
Package dimensions
435 x 195 x 315 mm / 17.13 x 7.68 x 12.4 inch
Net weight
Variant A: 2.85 kg / 6.3 lb
Variant B: 2.9 kg / 6.4 lb
Gross weight
Variant A: 3.4 kg / 7.5 lb
Variant B: 3.5 kg / 7.7 lb
Volume
Variant A: 15.4 liters / 14.96 liters without feet
Variant B: 15.7 liters / 14.96 liters without feet
Case material
SGCC powder coated steel, plastic, PVC filter
Package contents
Case, accessory box, user manual
Warranty
2 years
