Meshroom S V2

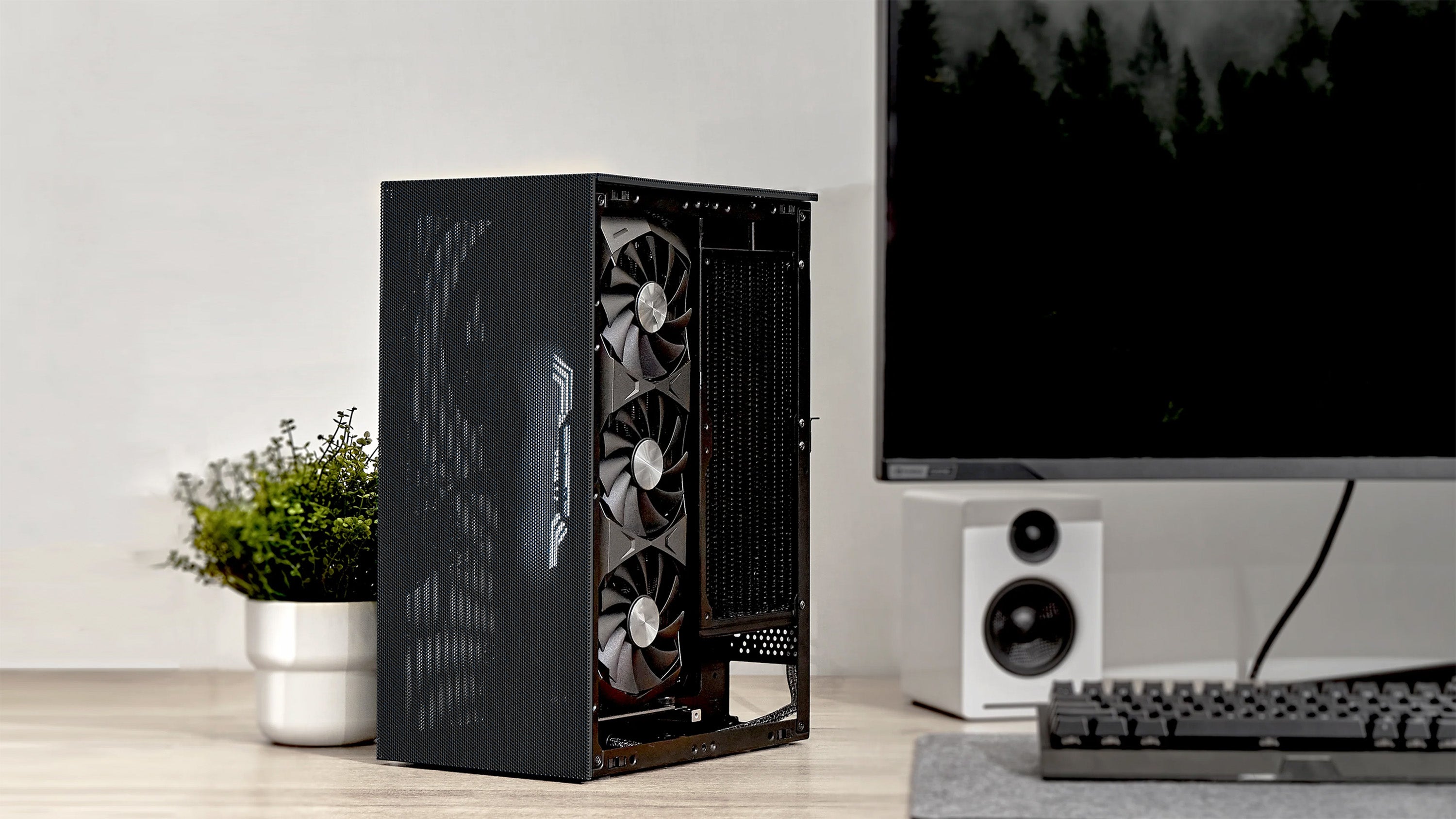

Meshroom S sets a new benchmark in compact SFF PC cases with its innovative 14.9L volume design. Despite its small size, it brings the power of an ATX chassis into the compact realm, offering unparalleled compatibility and cooling. The case features a 1.5mm fine mesh design, enabling both closed-loop and custom-loop water cooling solutions, ensuring reliable thermal performance. With support for ATX/MATX motherboards and up to 4-slot high-end graphics cards, performance is not constrained by space. A specially arranged space accommodates dual radiator configurations and a DDC pump, catering to custom loop enthusiasts. Wrapped in a sleek steel chassis, the Meshroom S effortlessly blends form and function, offering a versatile solution that's perfect on any desk.
Product condition guidance:
- New: Completely unused, in pristine condition with original packaging and all components included.
- Good: Excellent working condition with all parts intact. May show minor signs of handling or packaging wear.
- Acceptable: Fully functional but may have noticeable packaging wear or missing minor accessories. Suitable for cost-effective options.
**Final sale items, Open-box/Good Condition, personalized/customized items, and gift cards are not eligible for return.**

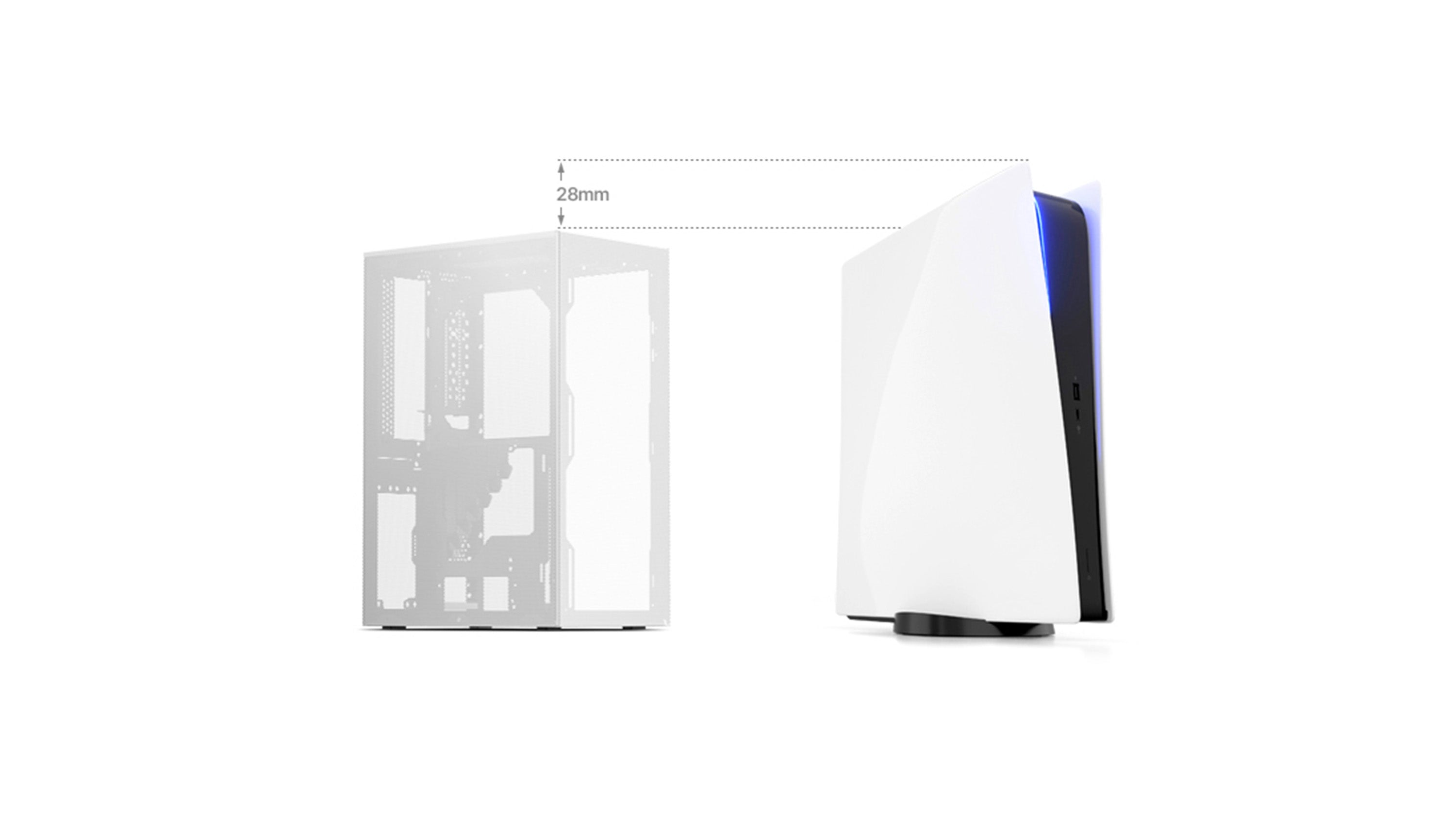

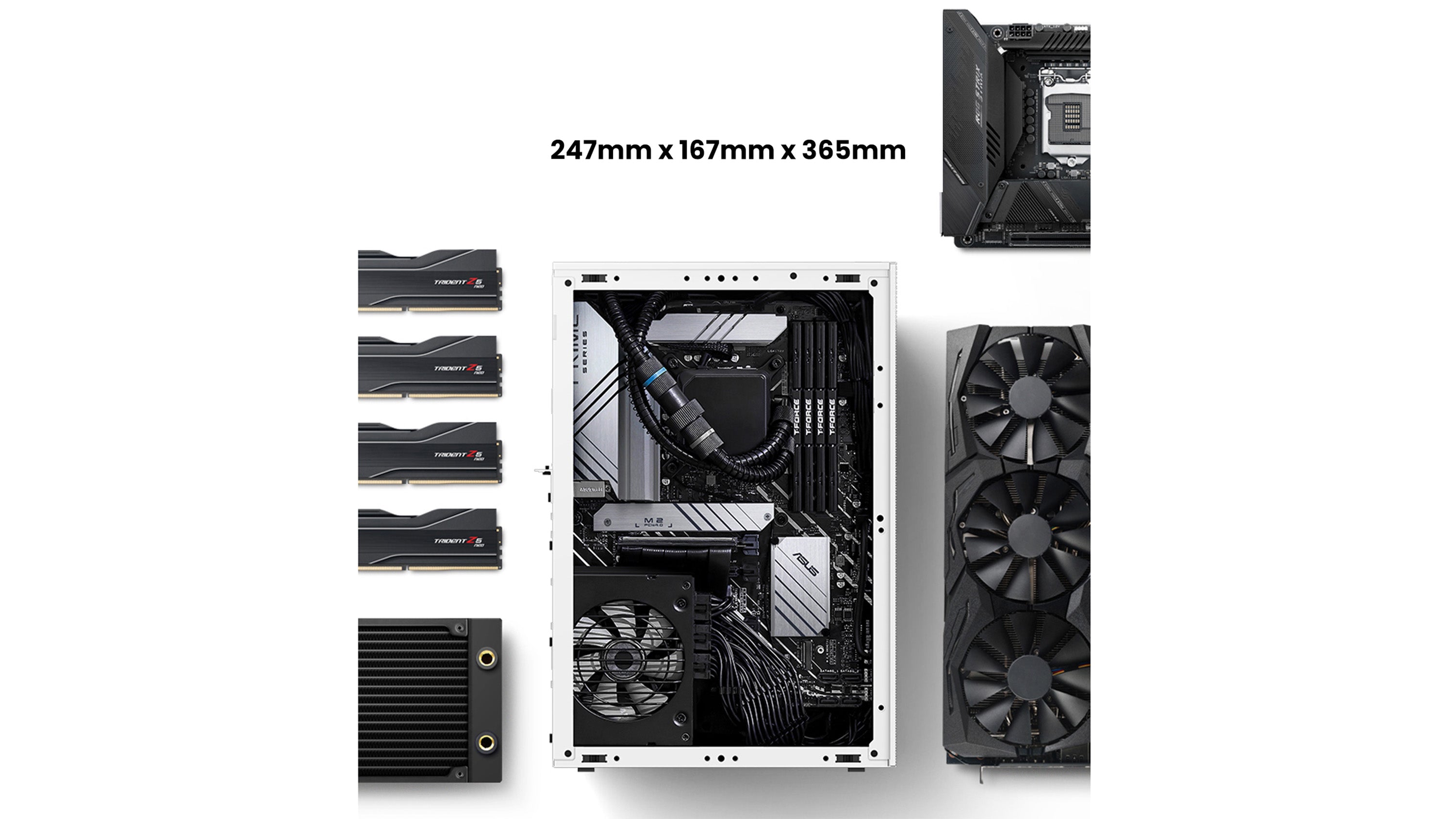

Mini Footprint Max Options
A compact 15L layout that supports full-size hardware, flexible cooling setups, and an easy, enjoyable building experience—offering maximum versatility in a minimal footprint.

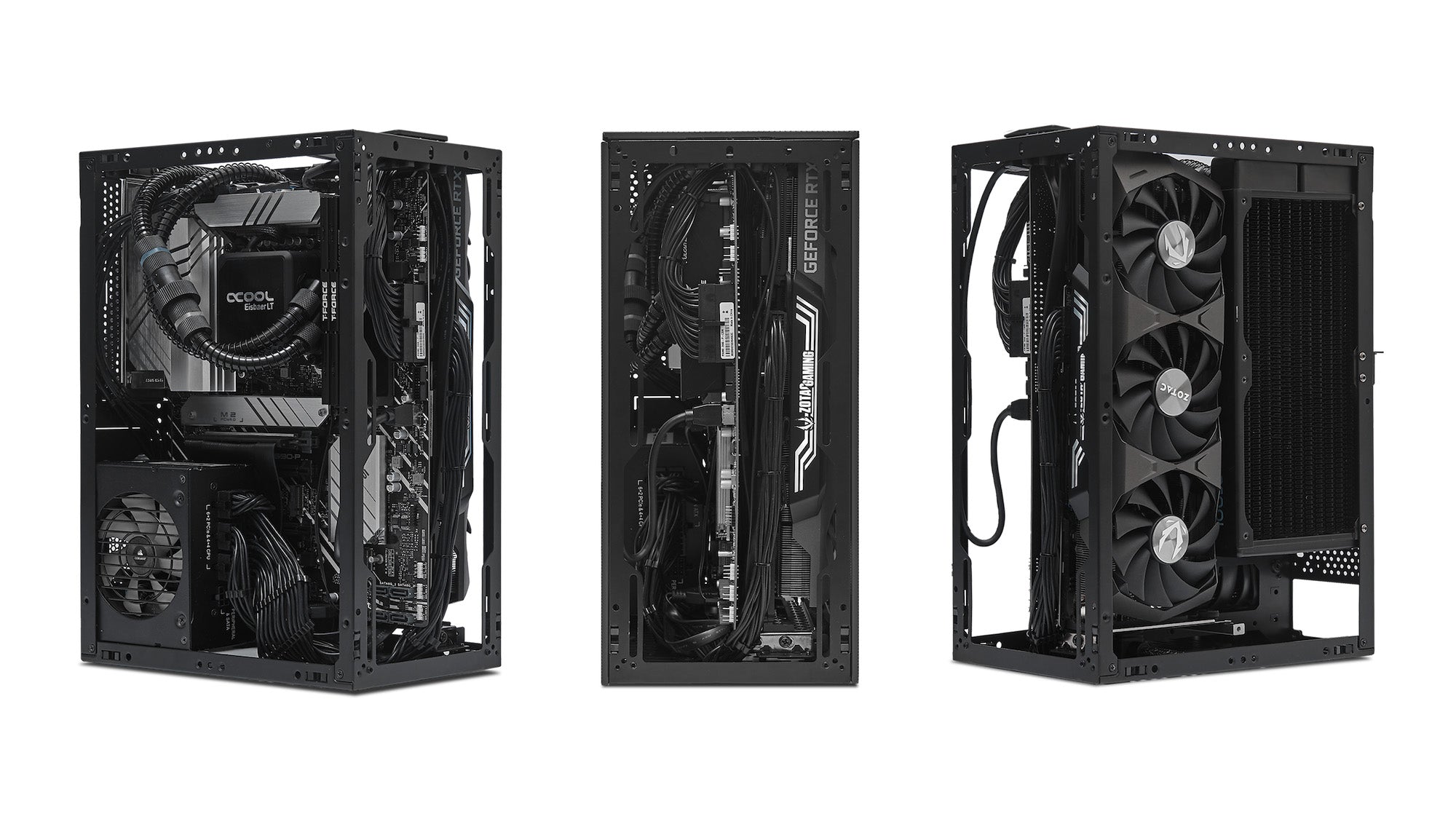

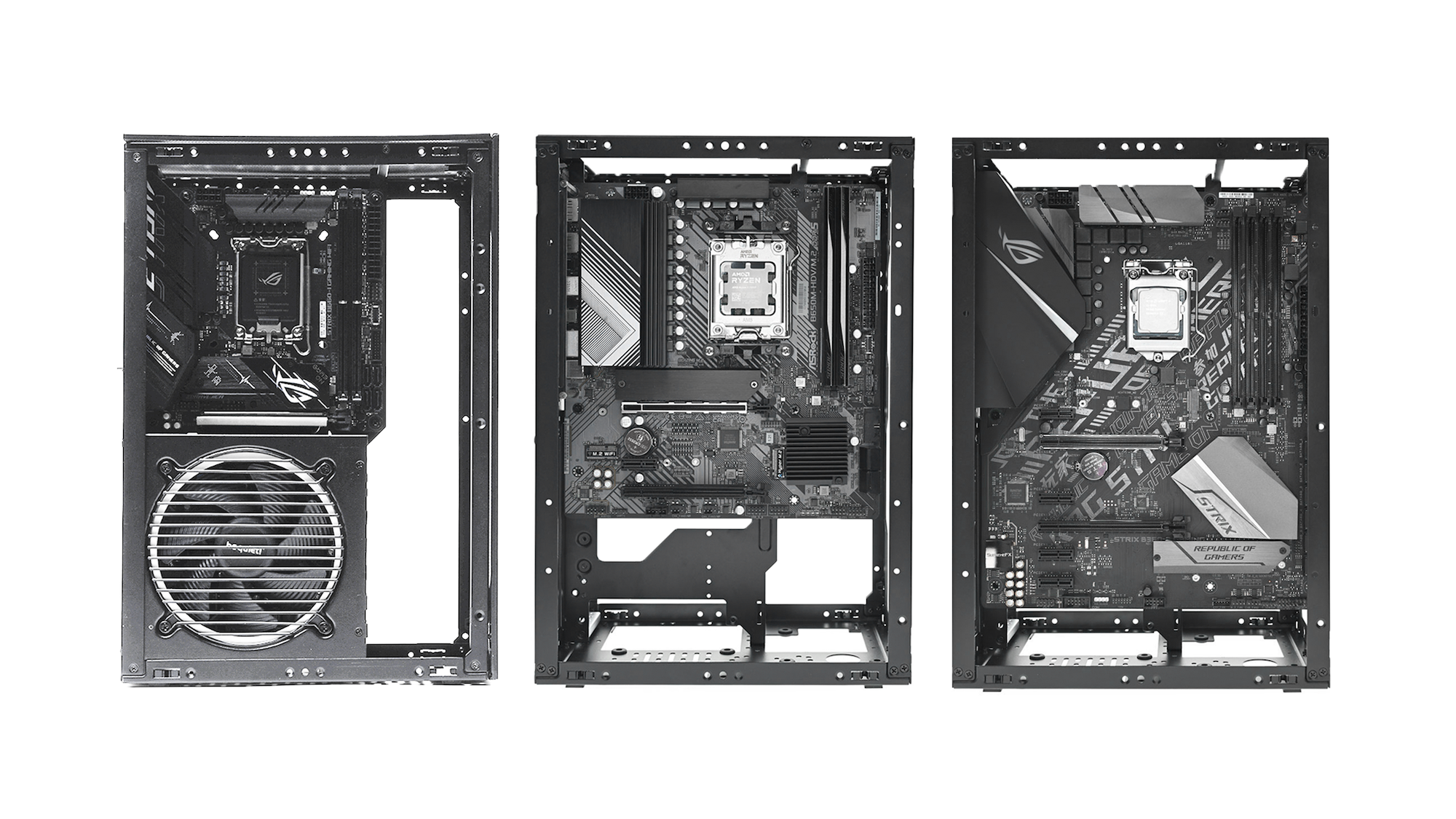

Support Up to ATX motherboard
Experience the unique layout for ATX motherboard without compromising
Uncompromised GPU Support
Designed to Supported GPUs up to 4 slots, 343mm in length, 152mm in width
PCIe 5.0 Ready
Upgraded to a full PCIe 5.0 riser for maximum performance and compatibility with all modern graphics cards.
- The included riser version comes with a 200 mm PCIe 5.0 Riser Cable by default.

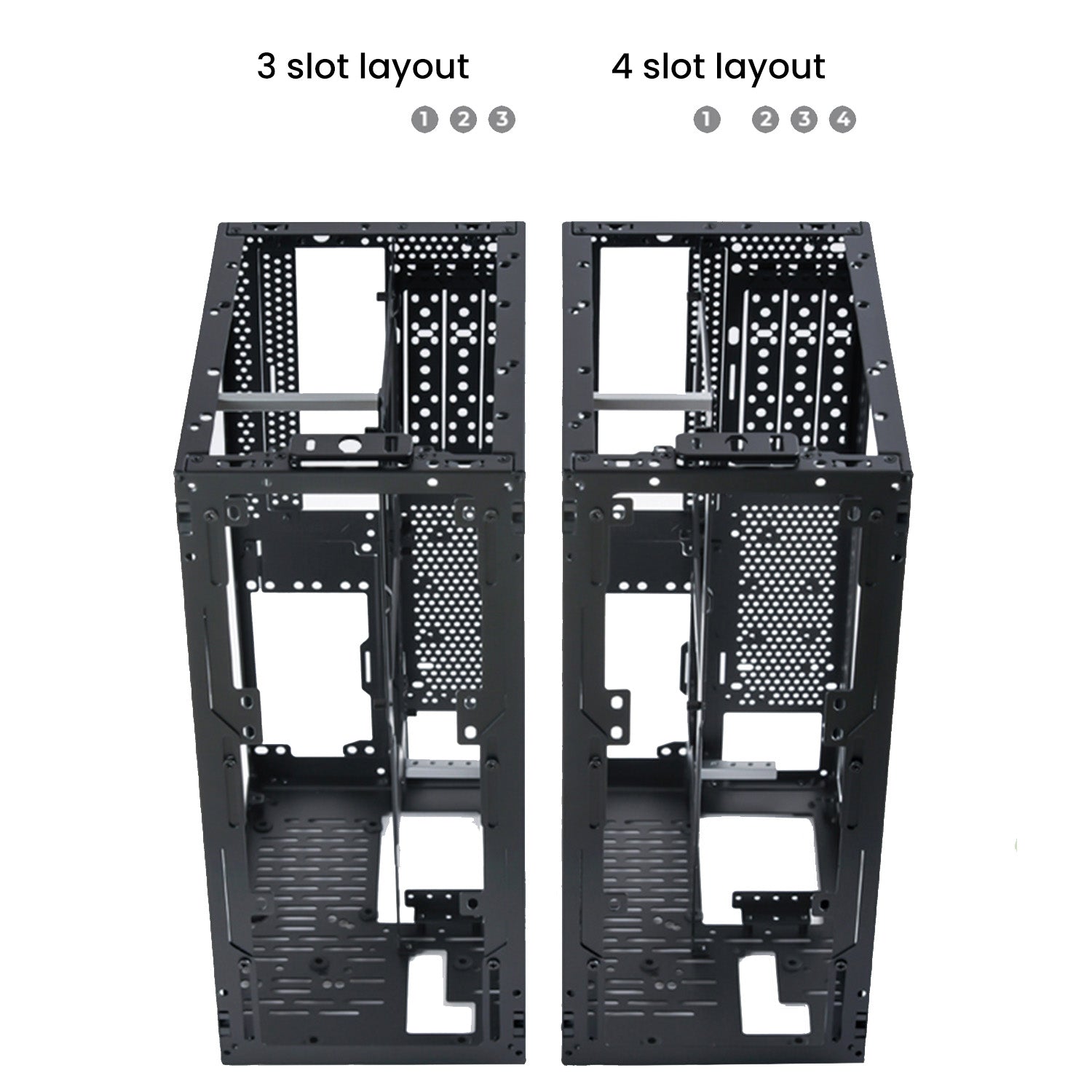

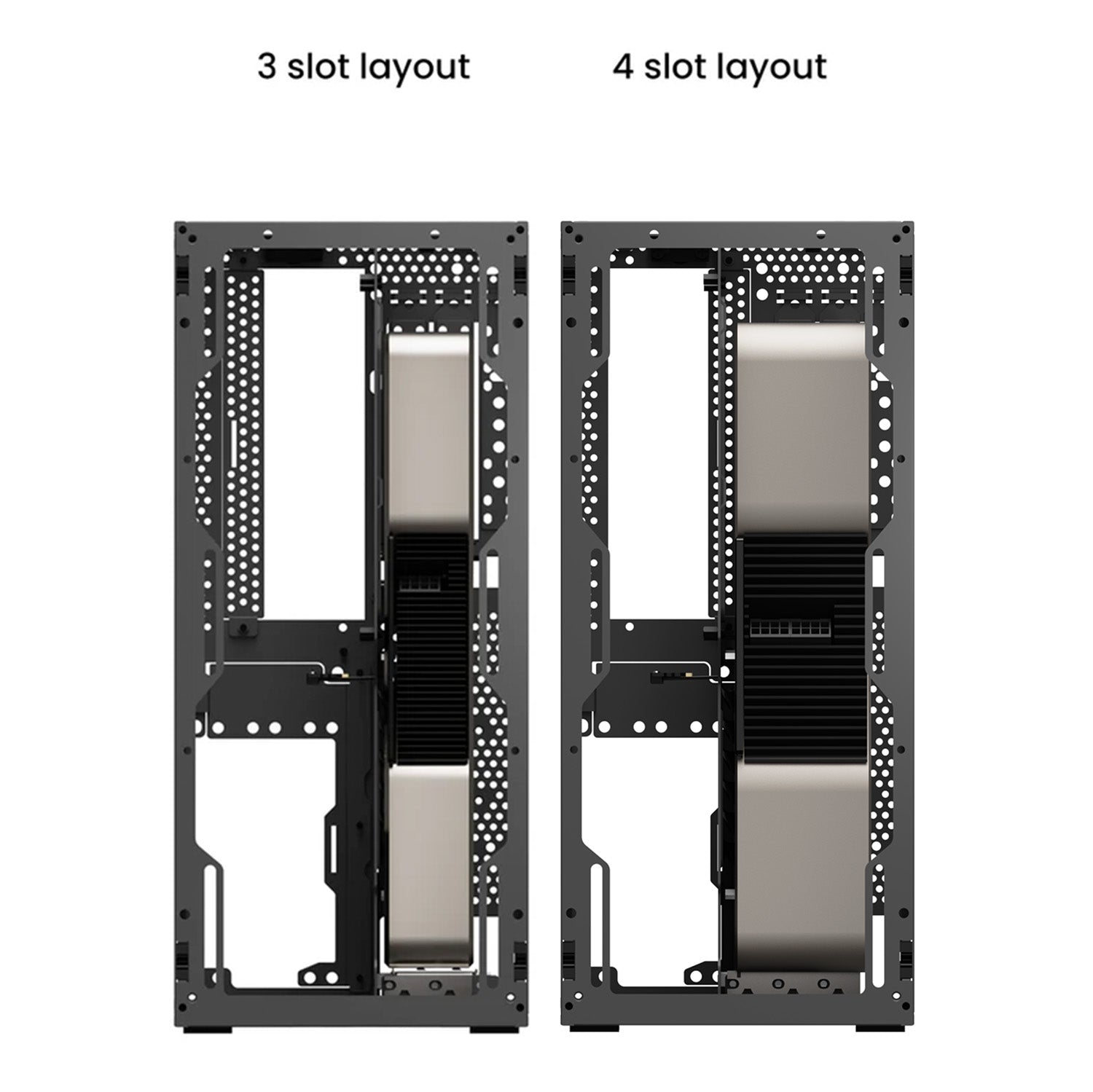

Dual-Chamber Flex for GPU
A repositionable motherboard tray lets you freely choose 3-slot or 4-slot mode, giving more control over CPU and GPU chamber spacing in a flexible dual-chamber layout

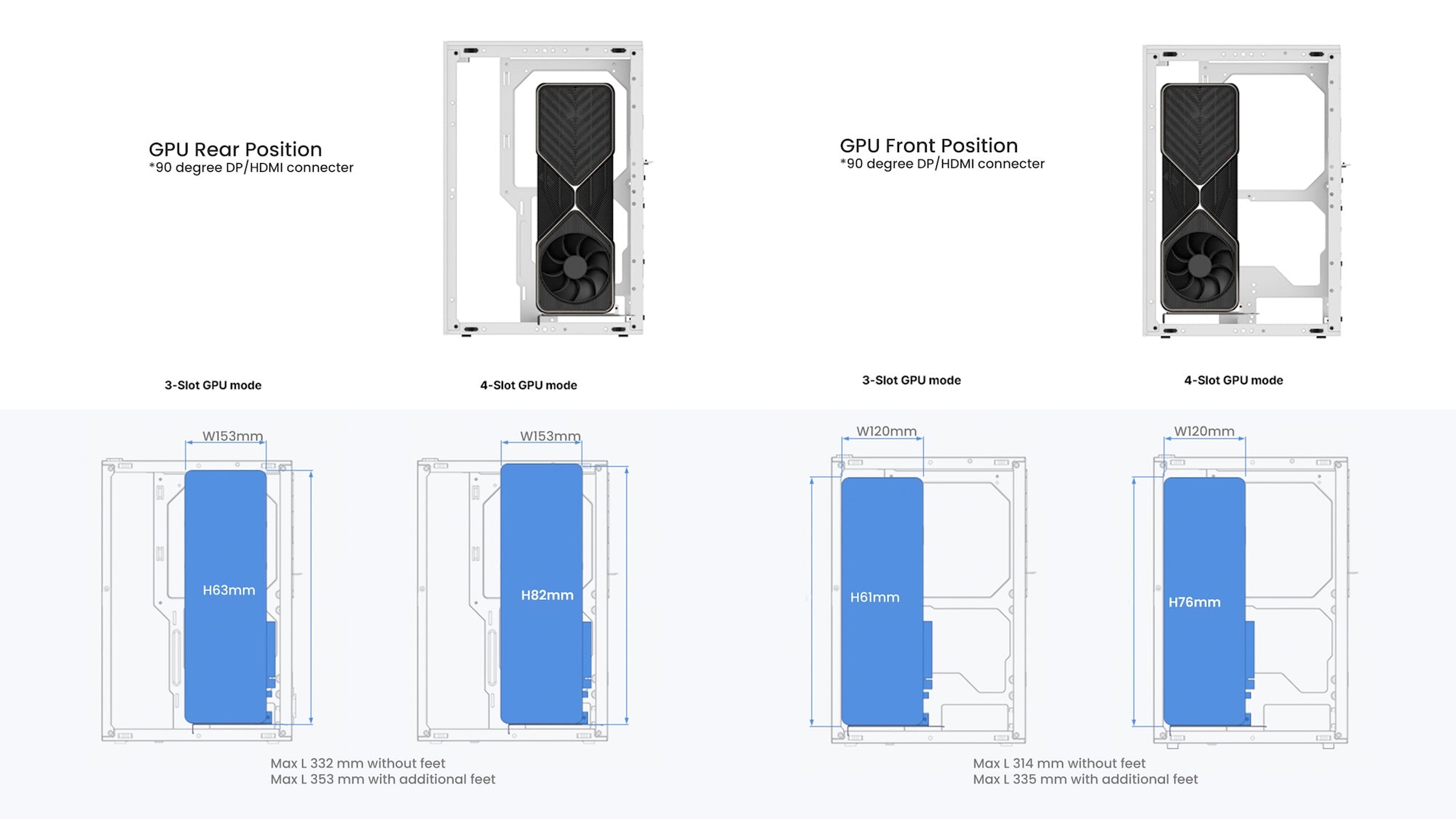

Flexible GPU Support
Designed to accommodate a wide range of graphics card sizes, offering flexibility for many different build configurations.

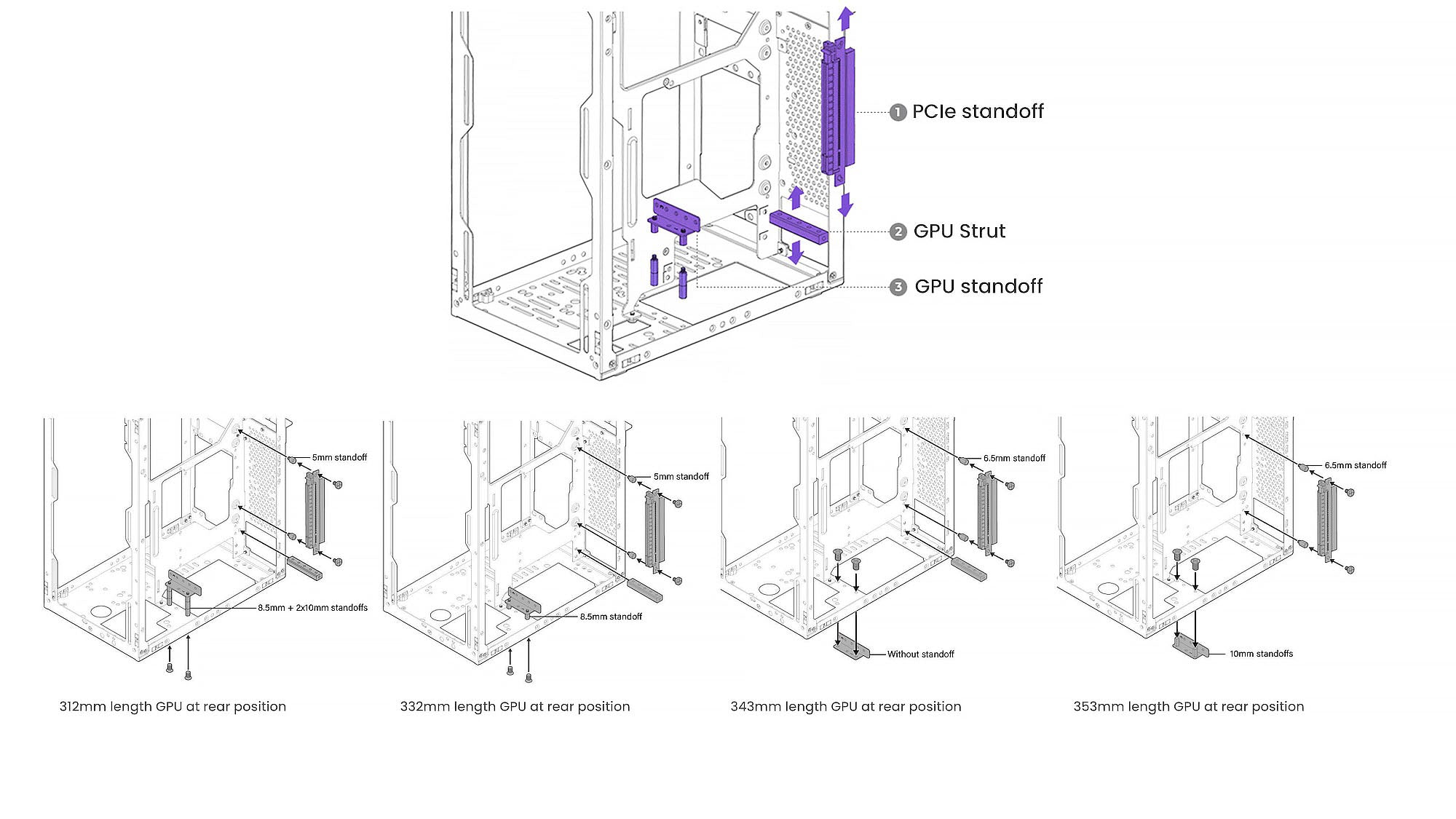

Adjustable GPU Fit
By adjusting the GPU struts and standoffs, the case supports various GPU lengths, making it easy to accommodate different graphics card sizes.

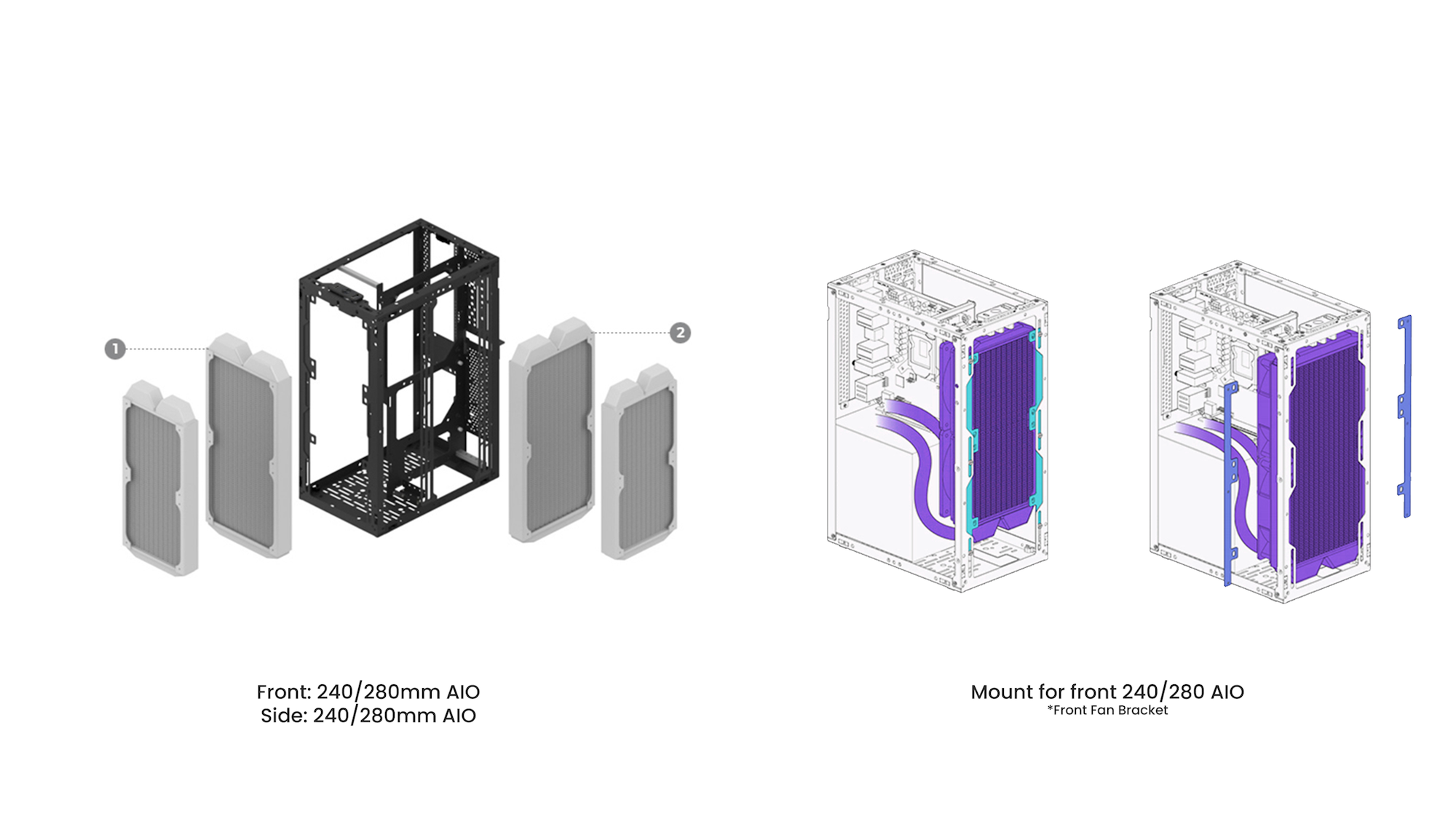

Cool in the Front
Compatible with 280 radiator in the front

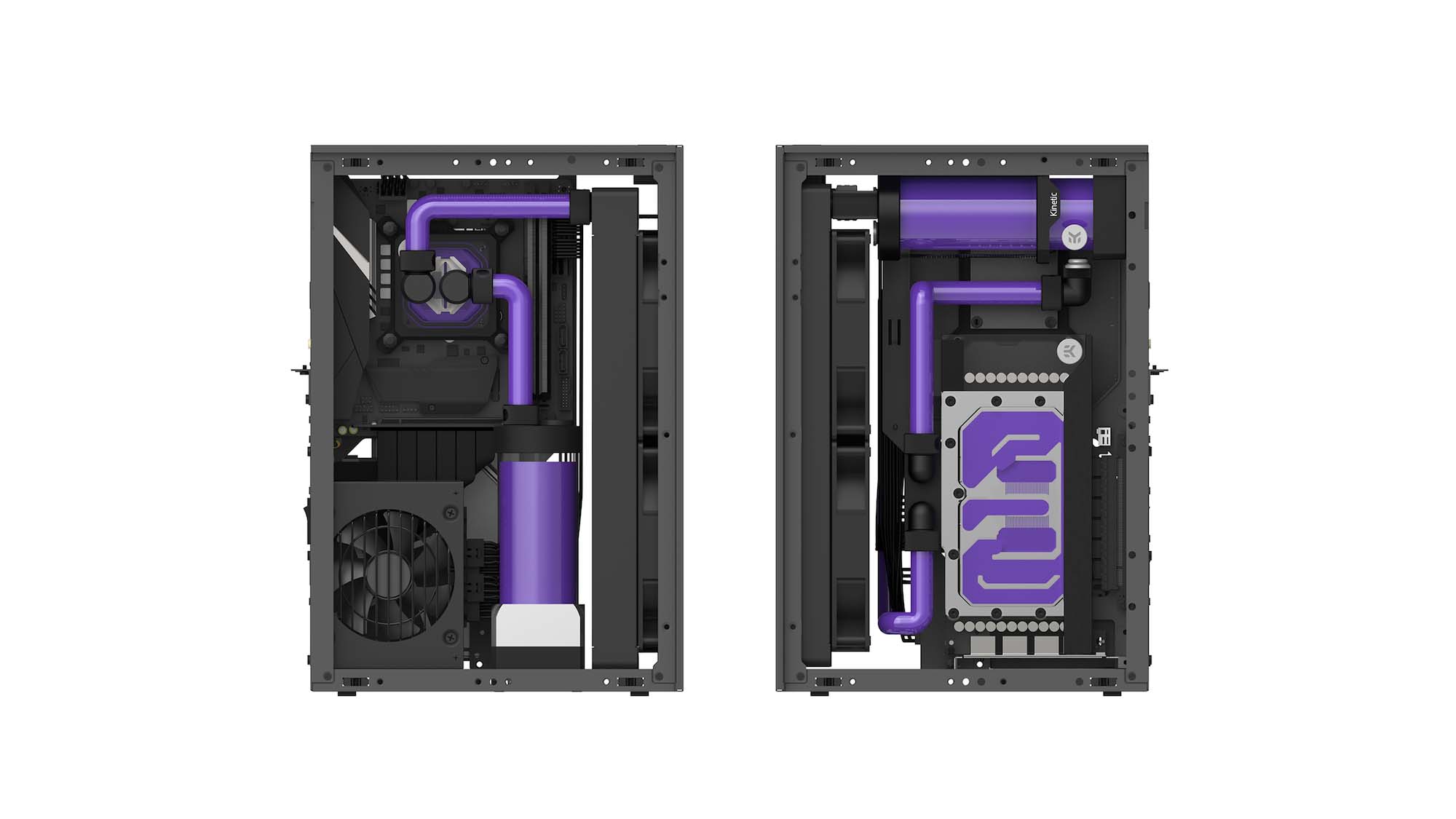

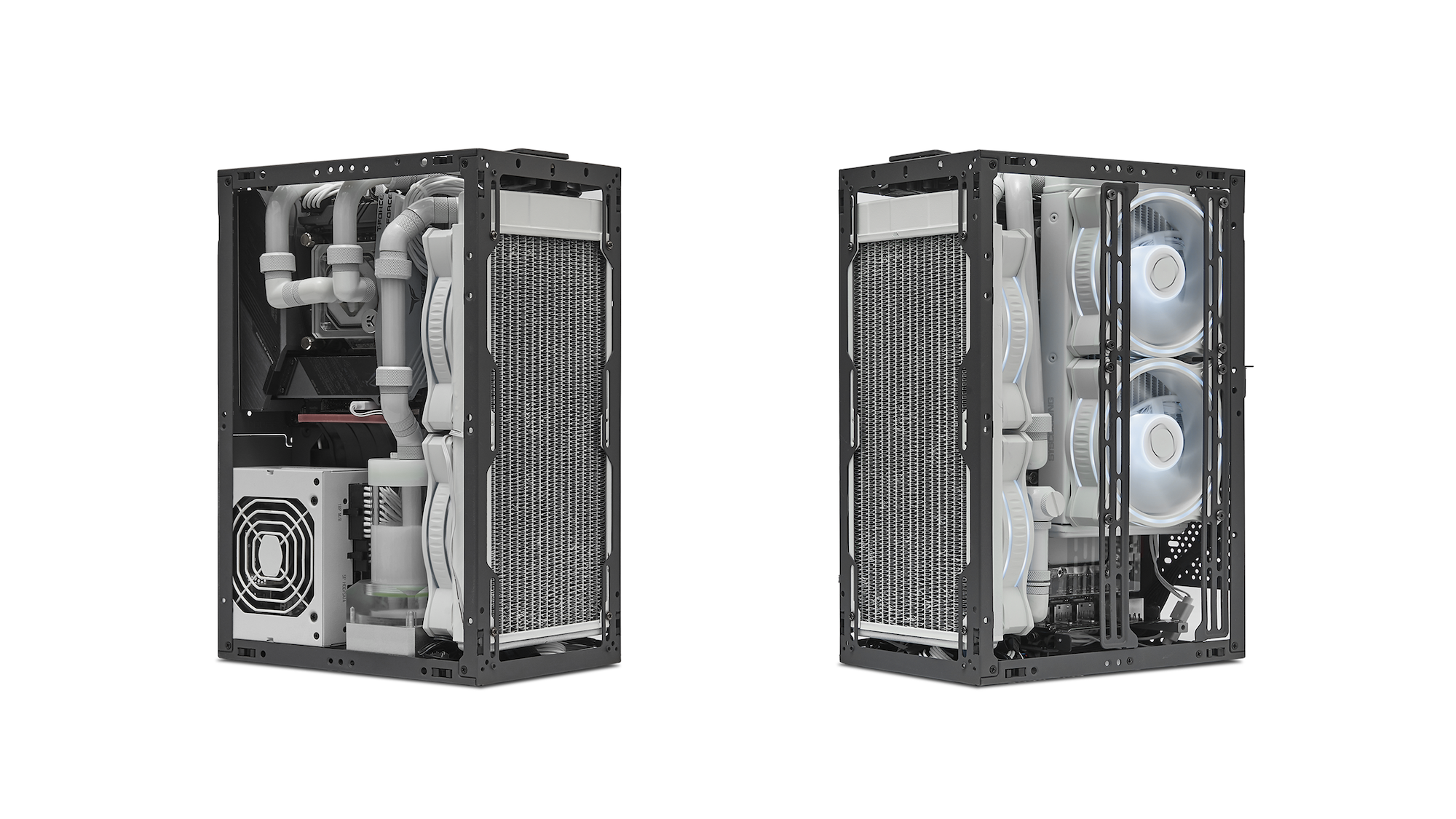

Easy access for custom loop
Featuring a dual radiator custom loop water cooling design and assuring with a ddc pump simultaneously

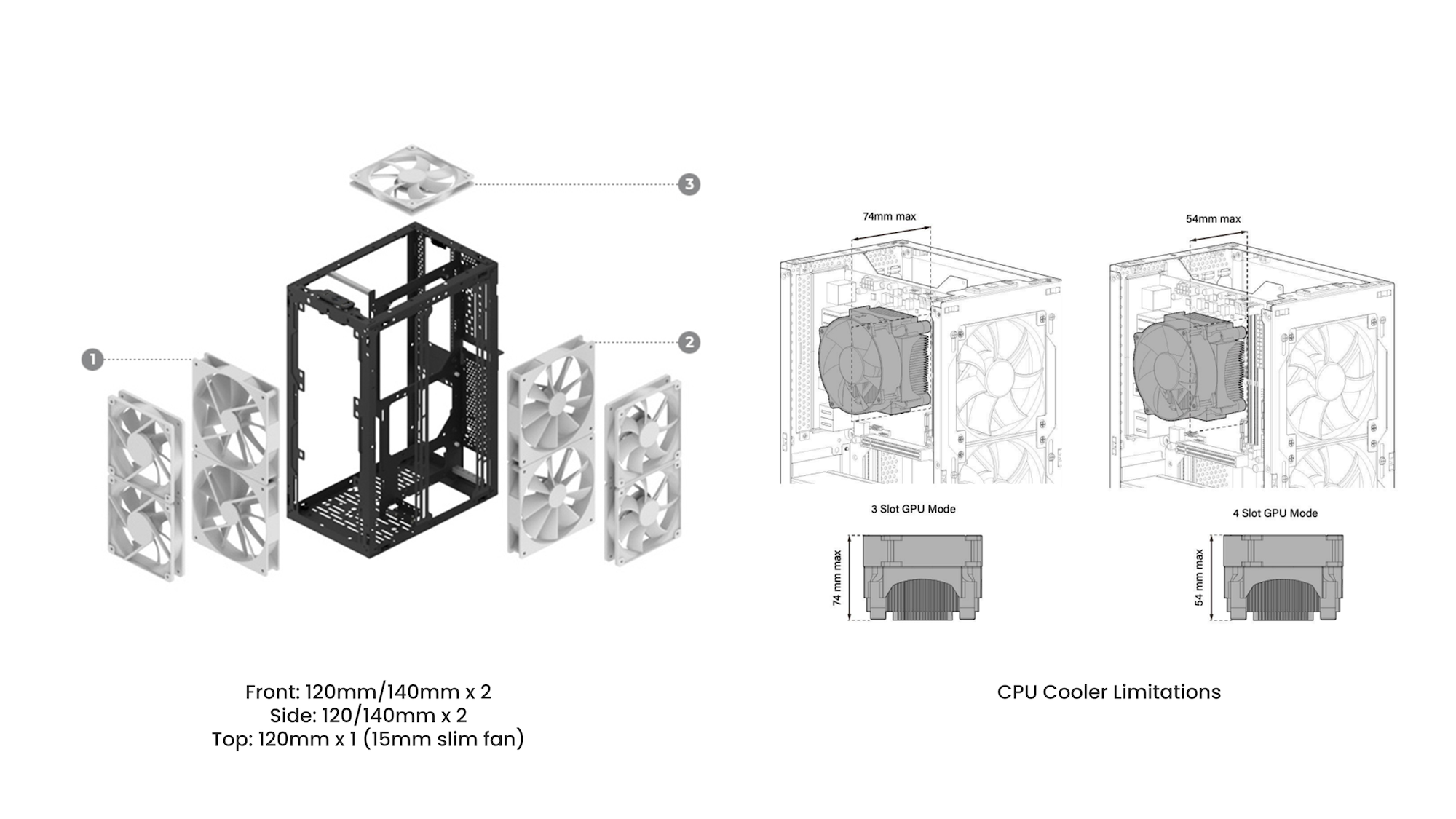

Air Cooling Support
Flexible air-cooling options with multiple fan mounting locations for optimized airflow

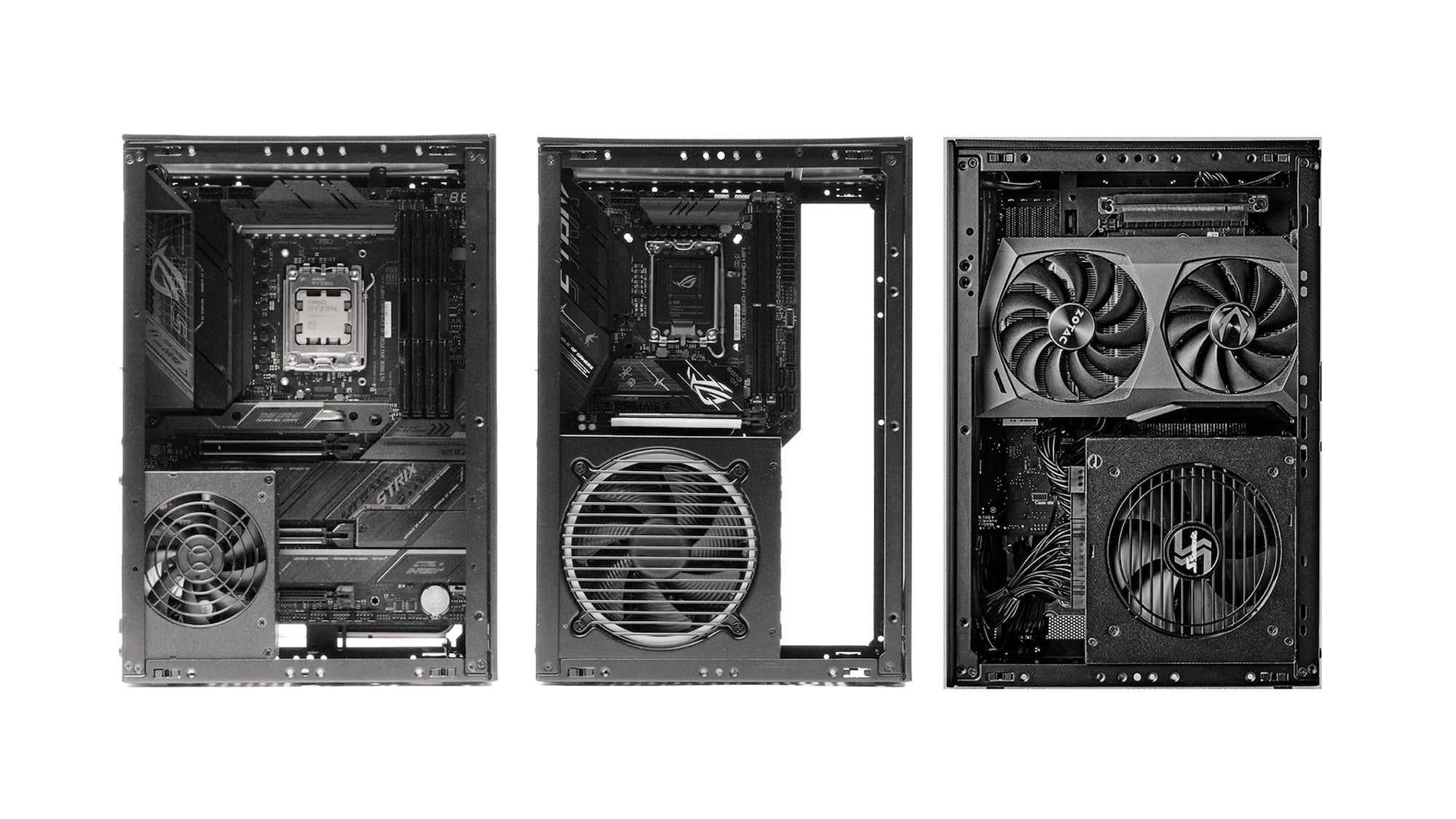

SFX / ATX PSU Support
Supports SFX, SFX-L, or ATX PSUs up to 170 mm, offering flexible power options whether paired with ITX, mATX, or ATX motherboards.（ATX PSU use may limit available GPU length and width depending on configuration.）

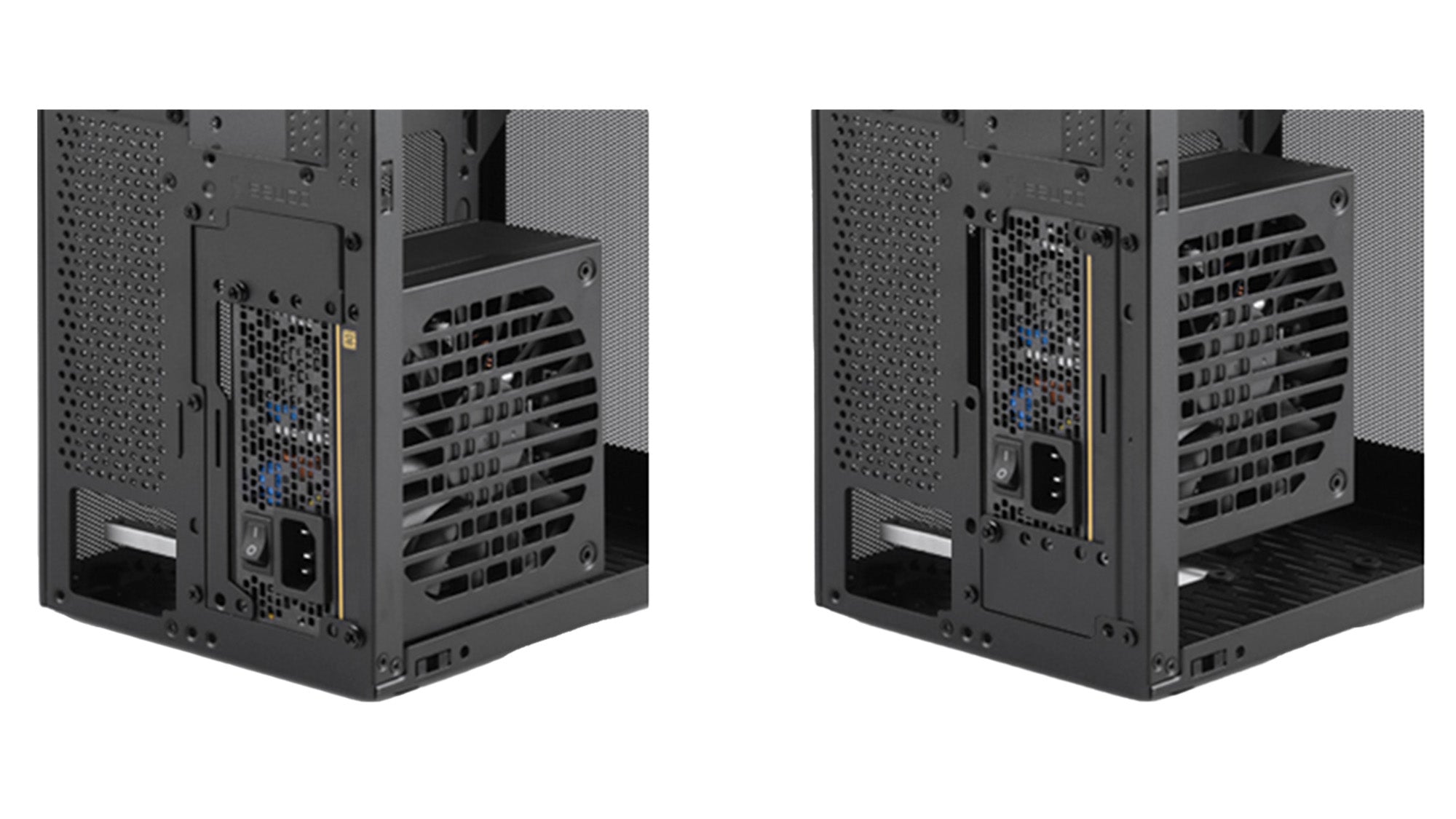

SFX PSU Mount with Two Flexible Positions
Mount the PSU at the bottom to free space for extra SSDs, or move it upward to open additional room for drives

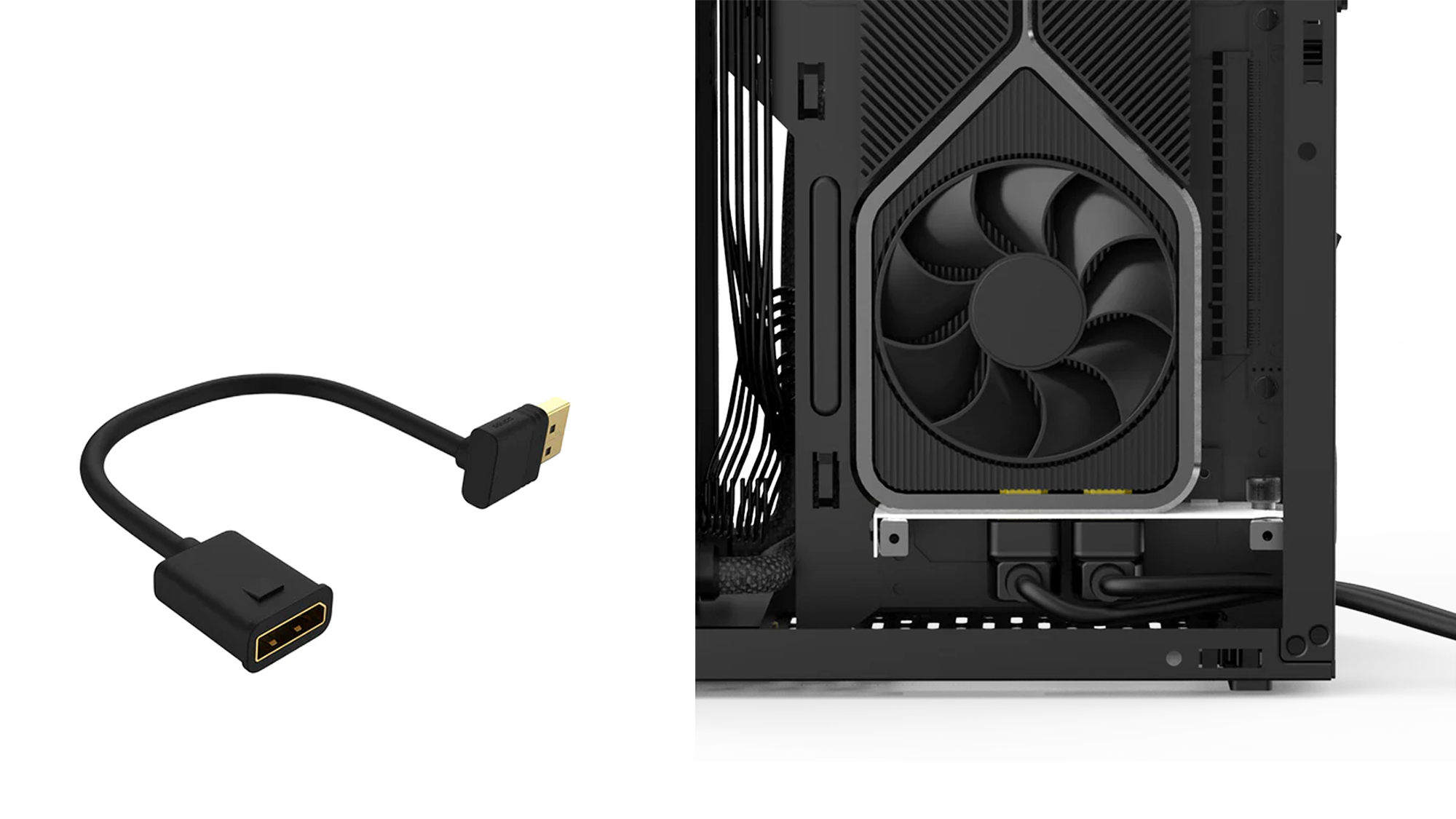

Included 90° DisplayPort 1.4 Extension Cable
A right-angle DisplayPort 1.4 extension Cable is included for clean routing with vertical GPU setups, supporting up to 8K 60Hz/4K 240Hz

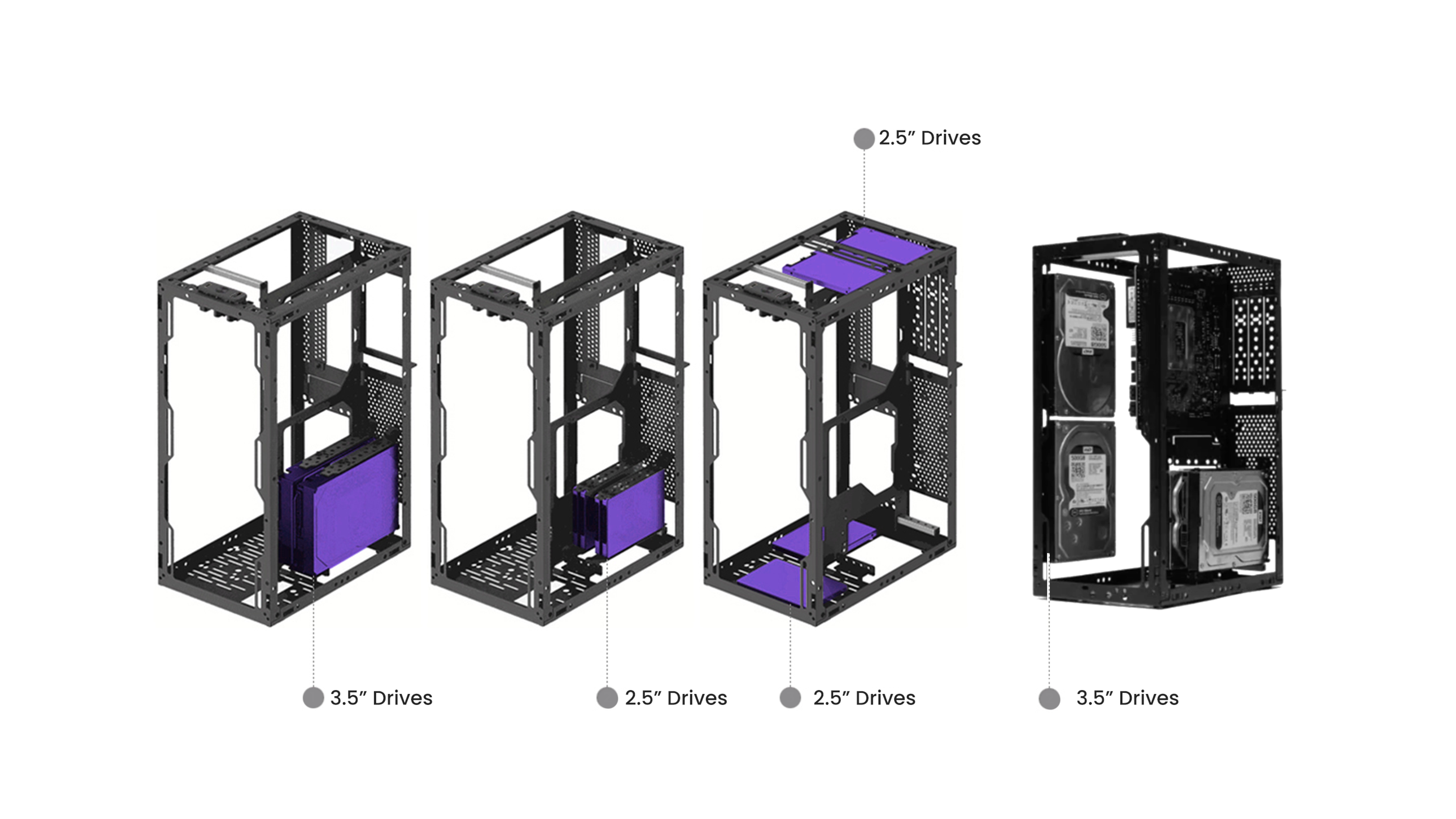

3.5" / 2.5" Drive Compatibility
Despite its compact size, Meshroom S V2 provides mounting points for up to 4 x 3.5" HDDs or 8 x2.5" SSDs

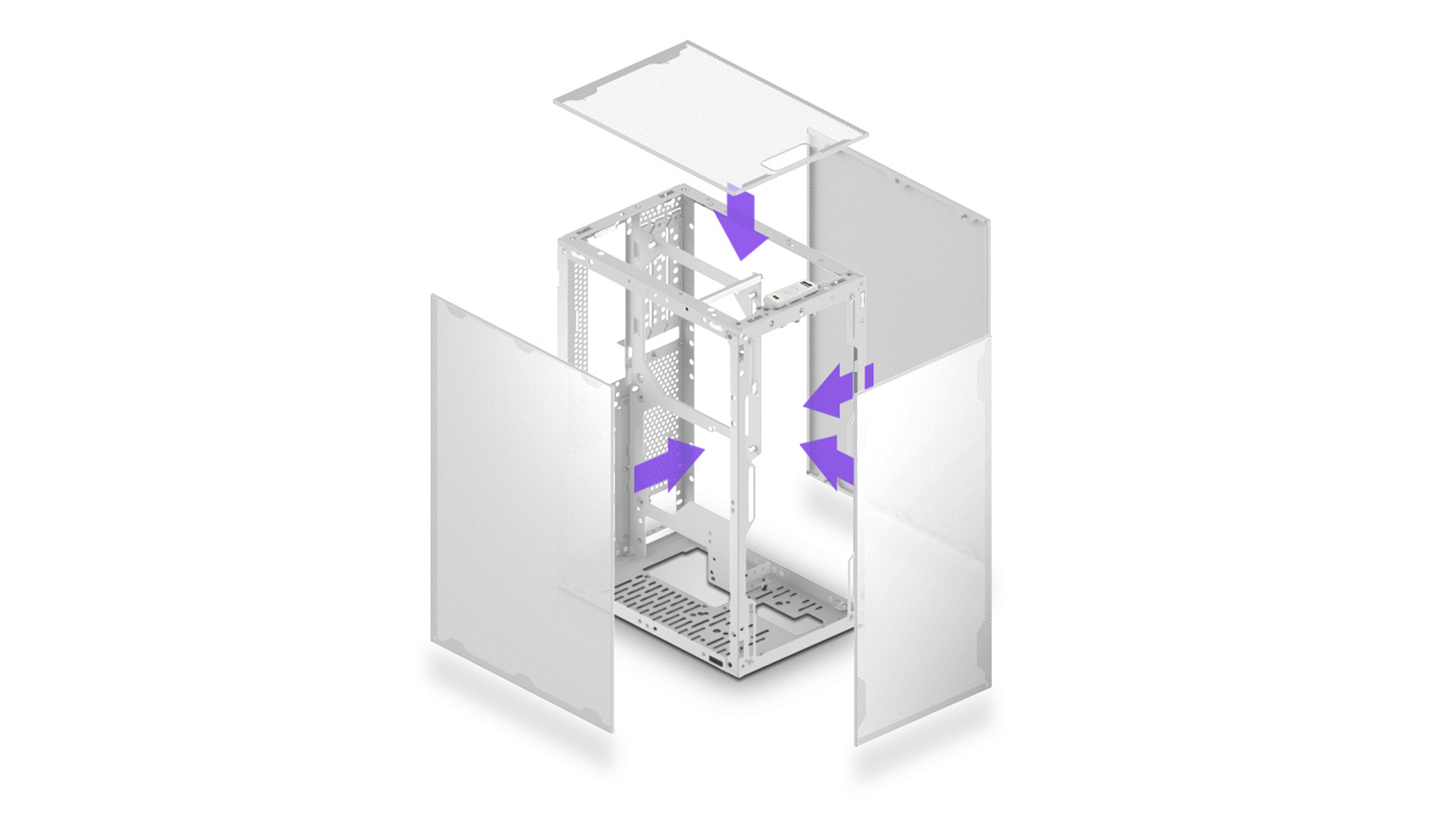

Full-Mesh, Tool-Free Panels
All-around mesh panels made from durable SGCC steel ensure steady airflow, while the push-pin design allows quick, tool-free removal
Power Button Relocation
To improve your building experience and product reliability, we have made some production optimizations to our Meshroom S and Meshroom D cases. During this transition, you may receive either Variant A (old) or Variant B (new), depending on the inventory batch.
All accessories are fully compatible between all versions and product functionality is unaffected.
Meshroom S V2 Variant A
Meshroom S V2 Variant B
Specifications
PCIe standard
PCIe 4.0 Version: PCIe Gen 4.0 x 16
PCIe 5.0 Version: PCIe Gen 5.0 x 16
No PCIe Version: N/A
Front IO ports
Variant A: 1x USB 3.2 Gen 1 Type-C (10 Gbps), 2x USB 3.0 Type-A (5 Gbps)
Variant B: 1x USB 3.2 Gen 2 Type-C (20 Gbps), 1x USB 3.0 Type-A (5 Gbps), 1x Power button
Rear IO ports
Variant A: Power button
Variant B: N/A
Tool-less push-to-lock
Both side, top, and front panels
Top and front panel
Fine mesh panels
Side panel
Fine mesh panels
Expansion slots
Rear GPU position: up to 4 slots (82 mm)
Front GPU position: up to 3 slots (61 mm)
Horizontal SFF GPU position: up to 3 slots (63 mm)
2.5" drive mounts
Horizontal SFF GPU position: 6 × 2.5” SSD
Rear GPU position: 4 × 2.5” SSD
Front GPU position: 4 × 2.5” SSD
3.5" drive mounts
Horizontal SFF GPU position: 2 × 3.5” HDD
Rear GPU position: 2 × 3.5” HDD
Front GPU position: 2 × 3.5” HDD
Front fan mounts
Max 2 x 120mm / 140mm fans
Top fan mounts
Max 1 x 120mm / 140mm (15mm thick)
Compatibility
Motherboard compatibility
Mini ITX / Mini DTX; Micro-ATX / ATX (requires optional PCIe card)
Power supply type
ATX / SFX-L / SFX
Power supply max length
170 mm with front fan assembly only;
160 mm with upward tubing AIO;
150 mm with downward tubing AIO
CPU cooler max height
3-slot mode: Up to 74mm height;
4-slot mode: Up to 54mm height
GPU max length (rear position)
3-slot mode: 332 mm length x 153 mm height x 63 mm width (353 mm length with extra feet);
4-slot mode: 332 mm length x 153 mm height x 82 mm width (353 mm length with extra feet)
GPU max length (front position)
3-slot mode: 314 mm length x 120 mm height x 61 mm width (335 mm length with extra feet)
GPU max length (horizontal position)
Up to 239 mm length x 160 mm height x 63 mm width
Front water cooler
240 / 280 mm radiator + fans up to 326 mm length x 144 mm width x 63 mm thick
Side water cooler
Front GPU position: 240 mm radiator + fans up to 120 mm width x 53 mm thick
Rear GPU position: 240 / 280 mm radiator+fans up to 140 mm width x 45 mm thick (allows 31 mm width GPU)
Right side radiator + ATX MB
3 slots GPU mode: 240 mm support max 120 mm wide, 53 mm thick with fans
General
Case dimensions
Variant A: 247 x 167 x 365 mm / 9.72 x 6.57 x 14.37 inch;
Variant B: 247 x 167 x 365 mm / 9.72 x 6.57 x 14.37 inch;
Without feet: 247 x 167 x 362 mm / 9.72 x 6.57 x 14.25 inch
Package dimensions
435 x 195 x 315 mm / 17.13 x 7.68 x 12.4 inch
Volume
Variant A: 15.04 liters / 14.92 liters without feet;
Variant B: 15.04 liters / 14.92 liters without feet
Case material
SGCC powder coated steel, plastic
Net weight
Variant A: 3.15 kg / 6.9 lb
Variant B: 3.06 kg / 6.75 lb
Gross weight
Variant A: 3.7 kg / 8.2 lb
Variant B: 3.63 kg / 8.01 lb
Package contents
Case, accessory box
Warranty
2 years
